IP68 Washable Optical Metal Trackball

IP68 Washable Optical Metal Trackball thumbnail-1
IP68 Washable Optical Metal Trackball thumbnail-2
IP68 Washable Optical Metal Trackball photo-1
IP68 Washable Optical Metal Trackball photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Desktop, Other
Type:
Wired
Contact Supplier Request Quote Chat Now
Key Technology (China) Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
SHEN ZHEN AND HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Application Desktop, Other
Type Wired
Interface Type Other, USB PS2
DPI Other, ≤ 800
Tracking Method Other, optical
Style Waterproof, Other
Hand Orientation Both Hands
Brand Name KEY-TEK
Model Number K-TEK-B83-38-OTB
Place of Origin Guangdong, China

38mm Vandal proof Industrial trackball ponting device



Model NO:K-TEK-B83-38-OTB



Dimension: 83.0mm x 110.0mm (front panel)
Description: IP65 dynamic rated vandal proof stainless steel optical trackball with IP65 dynamic sealed & ruggedized stainless mouse buttons and IP68 dynamic rated washable 38.0mm stainless steel optical trackball module with +800 DPI resolutions for fast and accurate fixing cursor position with extreme smooth operation without any noise, optical trackball module protected and shielded by stainless steel housing, 3 sealed stainless steel mouse buttons designed for right & left clicking and scrolling up and down with ball rolling,with rear panel mounting solution.



MAIN FEATURE:


Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
All Metal Mechanicals provide for rugged, smooth, long lasting and no noisy operation.
Laser Encoders provide high resolution more than +800DPI, fast and reliable positioning data. Available 38mm diameter Stainless steel for smooth, quick and durable operation and precise cursor positioning.
Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.
can be mounted horizontally, and vertically.
no metal bearings inside, operation is very smooth, and easy without any noise.



TECHNICAL SPECIFICATION:




ITEM

SPECIFICATION

Mechanical

Key

2 or 3 keys, quality brushed stainless steel

Key top style

sealed round stainless steel buttons with tactile feeling

Front Plate

Quality brushed stainless steel

Key Travel

1.00 mm

Ball diameter

38.1mm/1.50" (19mm, 25mm, 36mm 40mm also available)

Key switch lifespan

more than 10 Mio actuations

Track ball lifespan

> 10 Mio revolutions

Back Metal Cover

Rear side integrated electronics protected by a metal cover

Actuation Force

1.0N to 3.0

Mounting Rack

top stainless steel plate with mounting screw bolts

Dimension

Dimensions with 38mm track ball,

Front plate (W x H): 107.0mm x 120.0mm

Interface

PS2, USB are available, Y type cable with ports of PS2 and USB

Electrical

Power supply

5V DC+ 10%, mouse interface

Protection level

IP65 dynamic (front panel), NEMA3, IK10

EMC Standard

EN55022(B)

Power consuming

≤1.00W(dynamic)

≤0.2W(static)

Contact Material

sealed stainless steel buttons

Environmental

Operating temperature

-20ºC~+ 60º C

Storage temperature

- 30ºC~+ 70ºC

Operating RH

30~90%

Atmospheric pressure

60~106Kpa.

Reliable

Certificates

RoHS compliant, CE and FCC certified. ESD

MTBF

>50000H

MTTR

< 30min

OS

OS is under All windows, Linux, Unix, Mac OS9 / OSX

Packing Details

Each unit to a suitable brown box, suitable brown boxes to a standard export carton.

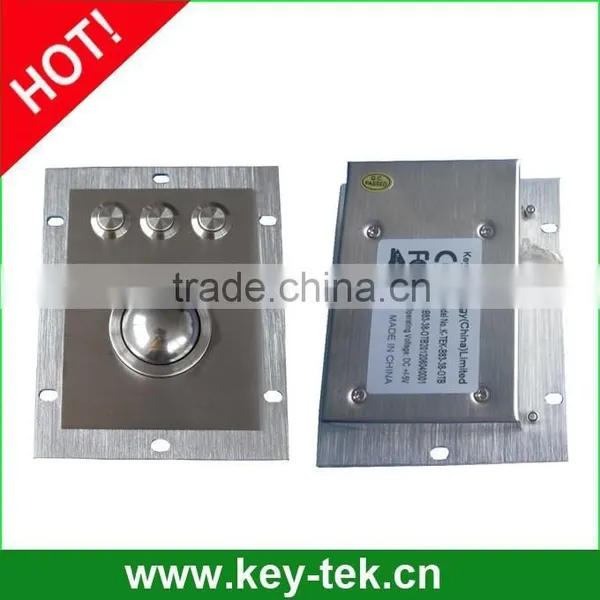

Actual Photo:

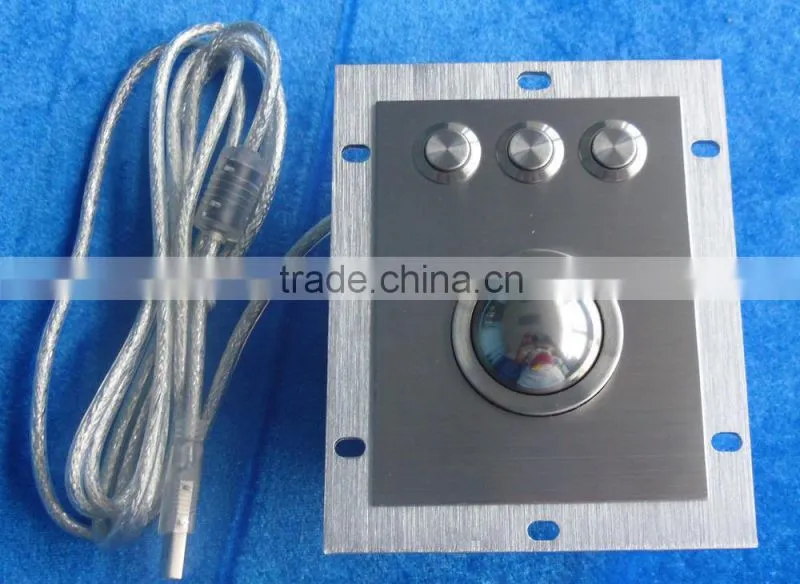

IP68 washable optical metal trackball

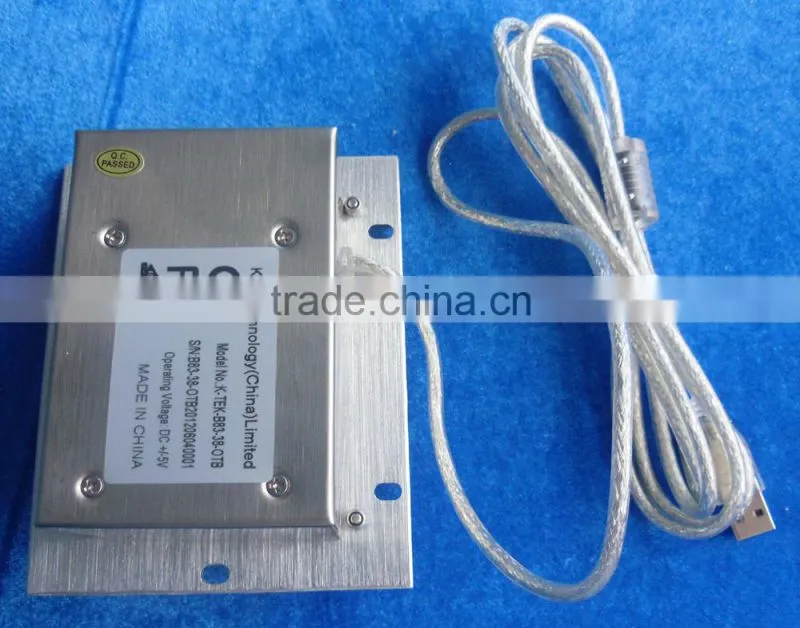

IP68 washable optical metal trackball
