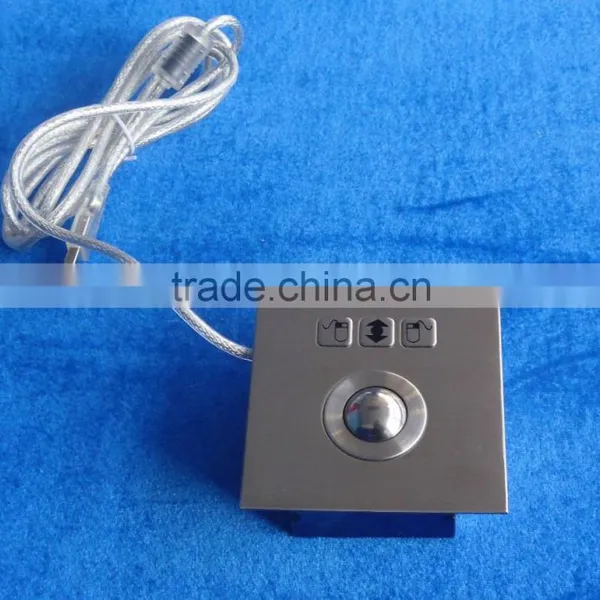

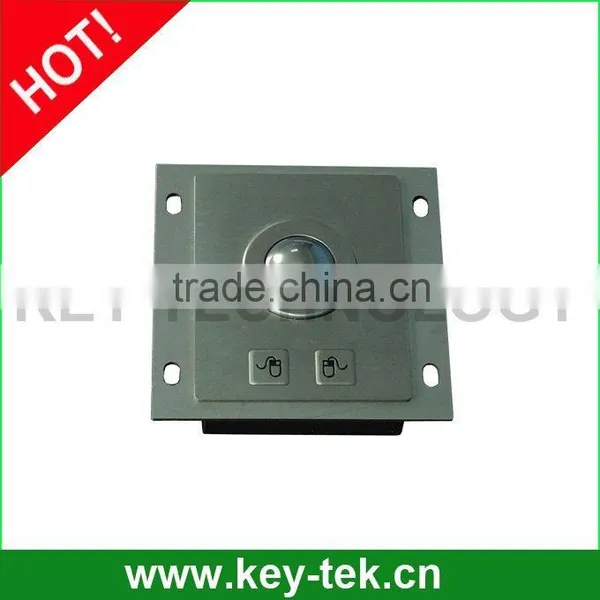

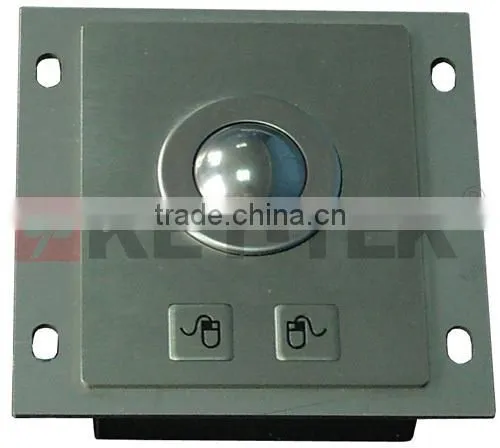

Rear panel mounting Vandal proof 25mm metal trackball industrial
Dimension: 65.0mm x 80.0mm(top panel)
Description:25mm Vandal proof Stainless Steel Trackball with stainless steel housing protects the trackball module, rear stainless steel panel mounted.
Product Classifications and Descriptions |
interface |
IP Rated TB |
|
K-TEK-B65-25-MTB |
Keyboard; 400 DPI Mechanical Trackball; |
PS/2;USB |
IP65 static |
K-TEK-B65-25-OTB |
Keyboard; 800 DPI Optical Trackball; |
PS/2;USB |
IP68 dynamic |
K-TEK-B65-25-CTB |
Keyboard; 400 DPI Chameleon Trackball (Adjustable seven colors backlight); Adjustable |
PS/2;USB |
IP65 dynamic |
Other language versions/interfaces/configuration available on request | |||
MAIN FEATURE:
Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
All Metal Mechanicals provide for rugged, smooth, long lasting operation.
Available 40mm, 38mm, 25mm, 22mm, 19mm and 16mm Diameter Stainless steel or Hard Phenolic Resin Ball for smooth, durable operation and precise cursor positioning.
Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.
Teflon Ball Shields are available for dirt and water protection in harsh environments.
TECHNICAL SPECIFICATION:
| ITEM | SPECIFICATION | |
| Mechanical | Key | 2 keys, quality brushed stainless steel |
| Key top style | Plain/non-Protuberant Rectangular Keys | |
| Front Plate | Quality brushed stainless steel | |
| Key Travel | 0.45mm | |
| Ball diameter | 25.0mm (1.0') | |
| Key switch lifespan | more than 5 Mio actuations | |
| Track ball lifespan | > 5 Mio revolutions | |
| Back Metal Cover | Rear side integrated electronics protected by a metal cover | |
| Actuation Force | 1.0N to 3.0N | |
| Mounting Rack | Aluminum alloy | |
| Dimension | Dimensions with 25mm track ball, Front plate (W x H): 65.0 x 80.0mm, Overall (W x H x D): 90.0 x 90.0 x 29.5mm | |
| Interface | PS2, USB are available, Y type cable with ports of PS2 and USB | |
| Electrical | Power supply | 5V DC+ 10%, keyboard interface |
| Protection level | IP65 (front panel), NEMA3 | |
| EMC Standard | EN55022(B) | |
| Power consuming | ≤1.0W(dynamic) | |
| ≤0.2W(static) | ||
| Contact Material | Gold/Gold | |
| Environmental | Operating temperature | -20ºC~+ 60º C |
| Storage temperature | - 30ºC~+ 70ºC | |
| Operating RH | 30~90% | |
| Atmospheric pressure | 60~106Kpa. | |
| Reliable | Certificates | RoHS compliant, CE and FCC certified. |
| MTBF | >50000h | |
| MTTR | < 30min | |
| OS | OS is under DOS/Windows95/98/NT/ME/2000/XP/2003/Vista,Win7,Linux, Unix, Mac OS9 / OSX | |
| Packing Details | Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton. | |
