Help CenterASPHALT HOT MIX PLANT LB2000 WITH Capacity of 160PHT
Related Products
-
2000KG Voltage160T/H Thermal Regeneration Asphalt Mixer Equipment RLB2000NegotiableMOQ: 1 Set -
140T/H Thermal Regeneration Asphalt Mixer Equipment RLB1750NegotiableMOQ: 1 Set
-
Strong Stability High Efficiency Energy Saving Compulsory Asphalt Mix Plant LDX320US$ 550,000 - 630,000MOQ: 1 Set
-
HM Small New 120T/H Aspht Hot Mix Plant With Best PriceUS$ 267,000 - 328,000MOQ: 1 Set
-
30-40 T/hEfficiency Stable Easy Operation Fixed Asphalt Mix Plant LB500 With Best PriceUS$ 230,000 - 298,700MOQ: 1 Set
specification
1.Competitive price, best service
2.ISO CE certificate
3.High quality,low cost
4.Best after-sale service

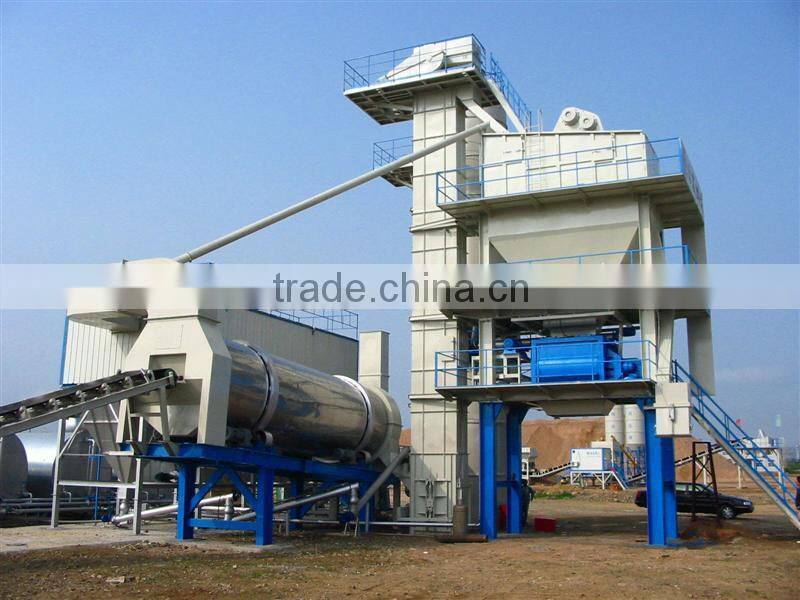

ASPHALT HOT MIX PLANT LB2000 WITH capacity of 160PHT
Haomei machinery in the design of asphalt mixing plant and process production manufacturing , select Europe developed latest of components as supporting parts, makes equipment overall technology always with international advanced level keep synchronization, it guarantee has equipment of reliability, and stability, and more environmental, and energy-saving; has independent technology development of advantage and more items independent intellectual property, its itself development development of asphalt mixed material mixing station electric control system has up international leading of technology. Production base is equipped with advanced production and testing equipment and instruments, to ensure that every aspect of production of key components and steel structures are up to international standards.
Advantages of asphalt hot mix plant
1.Comparatively lower operating and maintenance costs.
2.High efficient muti fuel burner for the drying and mixing drum is provided.
3.Thermally insulated drying drum.
4.asphalt batching plant is with modular units and designed for easy transportation and fast installation.
5.Minimum civil work required to be done at site.
6.The control panel is designed for ease of operation.
7.Ease of access for fast maintenance helping you to achieve maximum productivity.
8.Also available with wet dust collector in place of bag house filter for countries where pollution control norms are not stringent. Cheapest spare parts in the industry.
9.User friendly PLC control panel provided with option to store various types of hot mix recipes with possibility to change the recipes frequently.
Main technical parameters of LB 2000asphalt hot mix plant equipment
Type LB2000
Rated production 160 t/h
Cold aggregate container 5 containers×11m3
Dry cylinder 2.2m×8m
Emission standard 50mg/nm3
Vibrating screen 5 layers
Hot aggregate container 5/40t
Mixing kettle capacity 2000kg
Mixing cycle 45s
Mineral powder tank volume 30+43t
Asphalt tank volume 2×50000L
Heat conduction oil stove 500,000 kcol/h
End-product container volume 110t
Control system Manual /semi-auto / automatic
Weighing accuracyAggregate ≤±0.4%
Powder material ≤±0.3%
Asphalt ≤±0.2%
Installed general power 400kw
Main structure OF ASPHALT BATCH MIX PLANT
1.Cold material system
Aggregate feeder by frequency conversion, reliable performance. The hopper is provided with an isolating net, and the feeding door is adjustable, and the lack of material is provided with an alarm; the main and passive roller of the belt conveyor is arranged on the side.
2. Drying heating system
Drying drum wheel friction drive, smooth transmission, uniform stress, external insulation layer, reduce heat loss, improve the thermal efficiency; internal patent structure of drying drum provided material blade, high heat exchange rate, fuel consumption and low, discharge opening is provided with a temperature measuring device; fuel diversification choice; fuel is realized with mechanical coal feeding, automatic ignition, furnace automatic rotating, automatic walking, real-time temperature control function.
3. Measurement system
Hot aggregate metering device: built-in pressure relief channel, guarantee the accuracy of the weighing signal stability; Weighing size door thickness, in combination with program automatically added impulse, high measuring accuracy.
Powder metering device: powder measurement using the double helix conveyer, new old powder, according to the superposition of proportion measurement can be realized with the method of measurement before delivery, at the same time conveying screw mixer, effectively guarantee the powder and stir evenly.
Metering and asphalt spraying device: asphalt secondary measurement, real-time dynamic tracking; High pressure spray shower type asphalt patent structure; The anti asphalt overflow protection device.
4. Gas path system
Using the German FESTO solenoid valve, cylinder, reliable performance, long service life; gas path connection using quick connector, operation is simple and fast;
Air source after the water treatment, clean not plug, extend the service life of the cylinder; reserve gas source interface, easy to clean and other pneumatic tools
.
5. Electrical control system
Main elements adopt international famous brand, stable and reliable operation; separation of strong and weak electricity by the main control room, comfortable office environment; industrial Ethernet and field bus technology, data transmission real-time and efficient; only know, semi - automatic and manual control of the, is convenient and flexible; maintenance predict, fault diagnosis and early warning, statements complete function, print function and practical; double Kang Yu operation, process dynamic display
Pre-sale service
Suggest the best suitable products for customers according to their requirement, with sincere attitude
Try our best to Offer the technical service before installment.
Give our customers training for main problems and solution, maintenance and so on
During sale service
Supervising the whole process of producing and shipment and making sure our product deliver with good condition in time.
Offer all the necessary technical data to customer.
After sale service
Offer installment, debugging, and repairing service after customer receiving our products.
Offer work-site training.
Solve the customer’s complain at first time and try to arrive at the work site once get your notice.
We record every sold product on installment, debugging, and repairing situation. And provide professional maintenance advice.
We will visit customer timely to learn customer’s advice and new demand
Haomei machinery equipment co.,Ltd is located in the famous machinery capital of Zhengzhou, China. We are professional machinery products manufacturer-featuring a wide range of quality asphalt mixing plant, concrete mixer, concrete batching plant, mobile concrete plant, concrete pump, truck pump with boom, truck mixer, etc. We adhere to the policy of "QUALITY FIRST AND INTEGRITY WINS" to cooperate with clients from all over the world. Our company covers over 100 acres with workshop area of more than 50,000 square meters has 5 branches.
Certificates and customers
1. Why dose the customs choose our HAOMEI concrete mixer?
Specialize on manufacturing only asphalt mixing plant
Commitment used to serve clients as their solution partner.
What's the quality of your concrete mixer?
Rest assured that our products have got ISO, CE certificated. We have the professional team for the products' study and development.
What’s more, LQC240Asphalt hot mixing plant is on sale with a competitive price and I believe you will not miss this chance. We sincerely hope we can establish business relationship between us and welcome you visit our factory.
2. When do you deliver the goods?
less than 30 days after the deposit.
