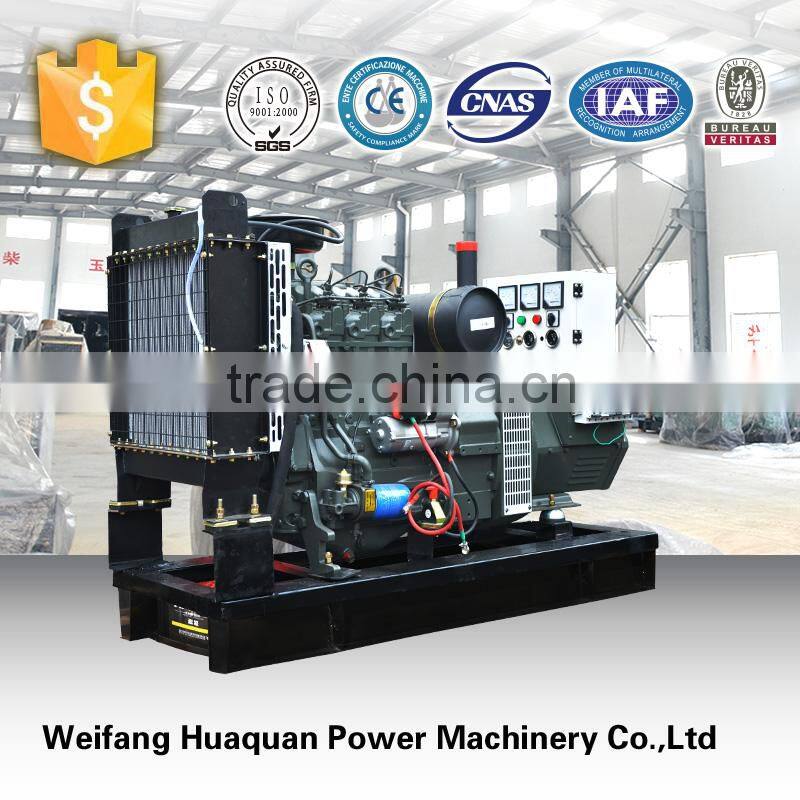

30kw China Supplier Self Running Diesel Generator

30KW/40kva YuChai SERIES DIESEL GENERATOR MAIN PARAMETERS

GEN-SETS PAMAMETERS:

Model:HQ30GF

Steady state voltage regulation(%):≤±1

Output Power:30KW

Voltage fluctuation rate(%):≤±0.5

Power Factor:COSΦ=0.8

Transient voltage regulation (%):+20~-15

Output Voltage:400V/230V

Voltage settling time(s):≤1

Output Current:54A

Steady State rate adjustment (%):≤±1

Rated Frequency:50Hz

Frequency fluctuation rate(%):≤±0.5

Rated Speed:1500rpm

Transient frequency regulation(%):+10~-7

Fuel:(Standard)0#

Frequency fluctuation rate(S):≤3

Dimensions:1880*750*1200

Fuel consumption(100%load):209g/kW·h

Weight:890kg

Noise(LP7m):95dB(A)

ENGINE PARAMETERS:

Brand:Guangxi YuChai

Cooling Mode:Water cooling

Code:YC4D60-D21

Oil drive:Direct Injection

Cylinder:4/L

speed adjustment mode:electrical speed governors

Bore and Stroke:108×115 mm

intake type:naturally aspirated

Copression Ratio:17:1

overload capacity:110%

Starting Mode:DC12V Electric start

Speed:1500rpm

ALTERNATOR PARAMETERS:

Brand/Producing Area:XingNuo/WuXi

Brand/Producing Area:XingNuo/WuXi

Code:XN-30

mode of connection:three-phase four-wire or Y mode

Rated Power:30kW

accommodation mode:AVR

Rated Voltage:400V/230V

output frequency:50Hz

insulation grade:H

output factor:COSΦ=0.8

standard configuration of the generator sets:

Diesel Engine;

AC synchronous generator;

Radiator Suitable for environment 40 ℃ to 50 ℃,belt drive Cooling fan belt drive,Fan safety shield

Air switch,The standard control panel;

Steel Base for the unite(including:vibration damping rubber pad);

air filter,fuel filter,lubricating oil filter,starting motor,self-charging generator;

Starting battery and wire;

Industry use 9dB silencer and standard connect parts

Attached documentation:Original technical documents of engine and alternator ,the instructions ,Testing report.

Optional accessories(calculate additionally):

Engine oil,Diesel,anti-condansation heater

Split type fuel tank,One-piece base fuel tank

Floating battery charger

Water proof box

ATS

Silent box

The control panel with three remote control

trailer

ATS with auto off load screen

Silent and trailer box

Warrenty:

One year or 1000 runing hours

 Free maintance or parts caused by quality problems,lifelong paid services!

(quick-wear part,common-used part,manual damage,Failure to maintain not inclusive

payment terms and delivery date:

TT L/C   30% deposit ,70% against B/L delivery with 20days after deposit

Executive Standard:

international standard Certificate: ISO9001:2000

Industry standards:GB/T2820.1997

Shiping :

EXW/FOB/CIF/CFR QINGDAO
