Home > Products > corrosive proof pressure switch > Fuel Tank Pressure Sensor

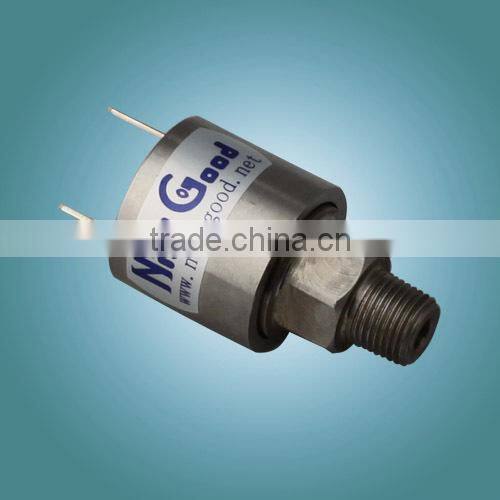

Fuel Tank Pressure Sensor
- Guangzhou or Shenzhen
- Money Gram
You May Like
Product Details
| Place of Origin | China | Brand Name | NineGood | |
| Model Number | 301 |
Product Description
Specifications
fuel tank pressure sensorSuitable for Air Water Vacuum Oil Corrosive fluids.
stable performance
compact size
fuel tank pressure sensor
Advantages:
fessional skill
2.Specific products
3.Tailored cost-effective production for our customers
Technical Parameter:
1, Switching type : SPST NC or SPST NO (Selectable),
Switch frequency & Response time: 60 Cycle /min, ≤100ms.
2, Pressure fitting: 1/8"-27NPT Thread (Male ).
3, Electrical connection: 6.35X0.8 Male terminals (Brass & Silver plating).
4, Voltage: 5VDC to 110VDC, 5VAC to 250VAC;
Resistance load : 0.1A to 6A, Inductive load : 0.1A to 3A.
5, Fluid media: Air pressure & Water pressure & Vacuum & Oil & Corrosive fluids,etc.
6, Work Life: ≥100,000 Cycle.

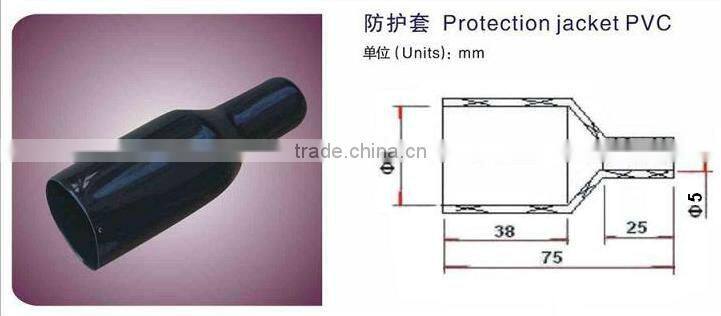

7, Protection class : IP00 (Not have PVC jacket); IP54 ( Equipped with PVC jacket).
8, Ambient temperature: -20°C~55°C, Medium temperature: -40°C~80°C.

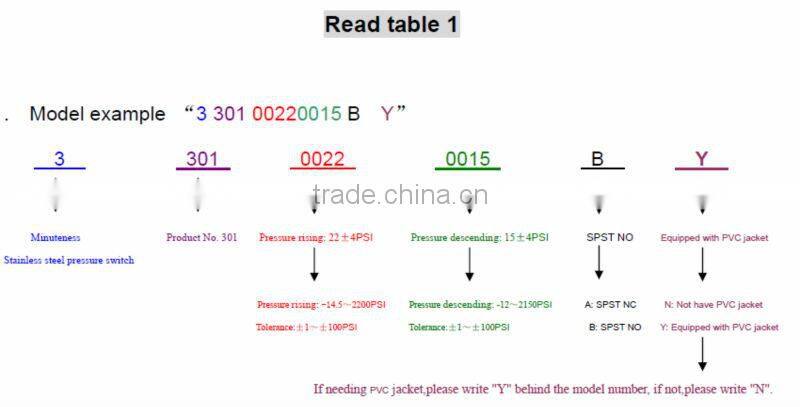

9, Model: (Read table 1).
10,Working pressure: Vacuum -14.5PSI to +2200PSI (Selectable, Read table 2).
After-sales service:
We promise to carry out the following after-sales service:
Warranty: The warranty period is 12 months starting from the shipping date.
The rate of Production Quality Problem is lower to 100PPM, replace the bad for free.
Certificate:
Production Photo:

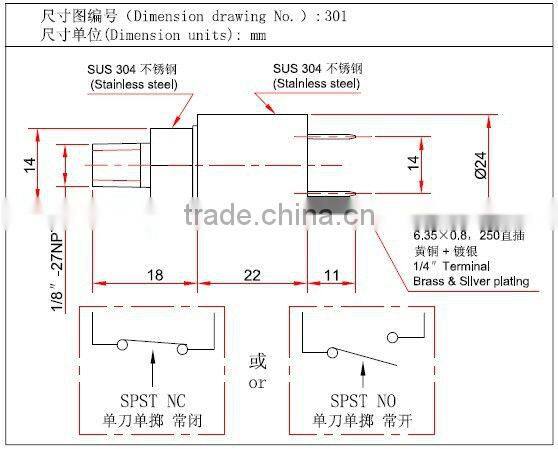

Dimension Drawing:
