Specifications
Range: -0.1~0~1000MPa(Optional)Output Signal: 4~20mA,0~5Vdc,0~10Vdc(Optional)
Excitation Voltage:: 24Vdc(9~36Vdc)
Pressure sensor:
Designed with import elastic component and advanced technology. High sensitive and outstanding shock &vibrating tolerance ability. 316 stainless steel and whole sealing, low profile, compactness. They have good ability of damp-proofing and good medium compatibility.
Measuring medium :low corrosive medium in many industrial process .
Applying to pressure measuring and controlling of industrial facility, irrigation, Chemical industry, Medical, Electric power, air condition.
Diamond press machine, metallurgy, water supply to building and so on.
precision control ceramic pressure sensor
Advantages:
fessional skill
2.Specific products
3.Tailored cost-effective production for our customers
Technical Parameters
Pressure Range: -0.1~0~1000MPa(Optional)
Comprehensive Precision:0.1%FS, 0.25%FS,0.5%FS(Optional)
Output Signal: 4~20mA,0~5Vdc,0~10Vdc(Optional)
Excitation Voltage:: 24Vdc(9~36Vdc)
Medium temperature: -20~105°C
Ambient temperature: -20~85°C
Electric Current output: ≤800Ω,Voltage output :≥50KΩ
Insulation Resistance:≥ 2000MΩ (100VDC)
Response time:<1ms
Defend Grade: IP65
Stability:0.1%FS/year
Effection of Vibration: On 20HZ-1KHZ of mechanical shake, output ≤ 0.1%F.S
Electric Connection: Seal terminal type
Thread Connection:G12/"-14BSP
After-sales service:
We promise to carry out the following after-sales service:
Warranty: The warranty period is 12 months starting from the shipping date.
The rate of Production Quality Problem is lower to 100PPM, replace the bad for free Certificate:
Production Photo:

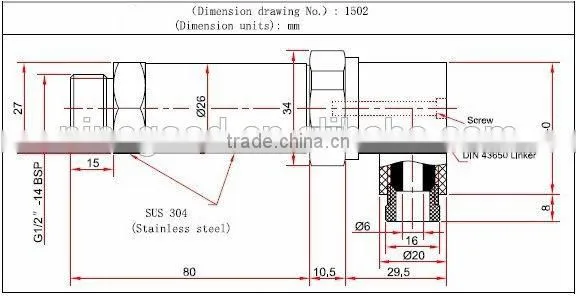

Dimension Drawing:
