Specifications
low cost air sensor pressureSuitable for Oil vacuum water
easy installation
stable performance
pressure control precision
low cost air sensor pressure
Technical Parameter:
1, Switching type : SPDT NC + NO (Selectable),
Switch frequency & Response time: 60 Cycle /min, ≤100ms.
2, Pressure fitting: 1/8"-27NPT, Thread (Male ).
3, Electrical connection: OEM 3408607 Connector .
4, Voltage: 5-110VDC, 5-250VAC;
Resistance load : 0.1A to 3A, Inductive load : 0.1A to 1A.
5, Fluid media: Oil.
6, Work Life: ≥100,000 Cycle.
7, Protection class : IP54.
8, Ambient temperature: -20°C~65°C,
Medium temperature: 0°C~125°C.

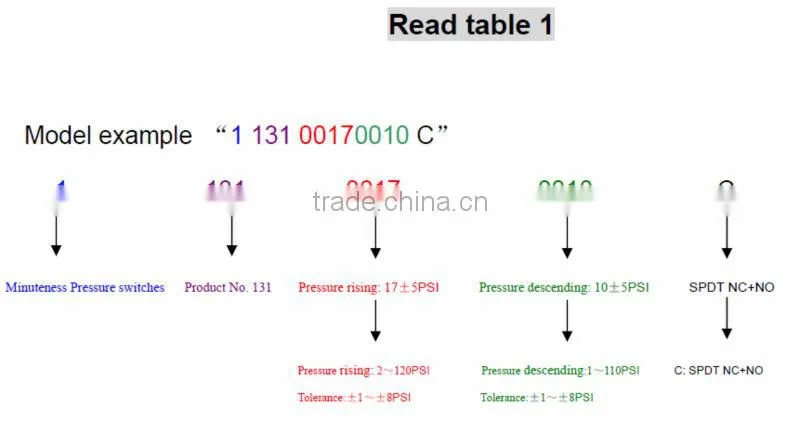

9, Model: (Read table 1).

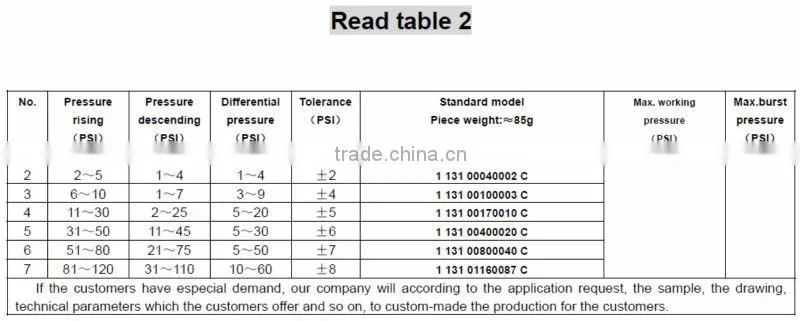

10,Working pressure: 0 to +120PSI (Selectable, Read table 2).
After-sales service:
We promise to carry out the following after-sales service:
Warranty: The warranty period is 12 months starting from the shipping date.
The rate of Production Quality Problem is lower to 100PPM, replace the bad for free.
Certificate:

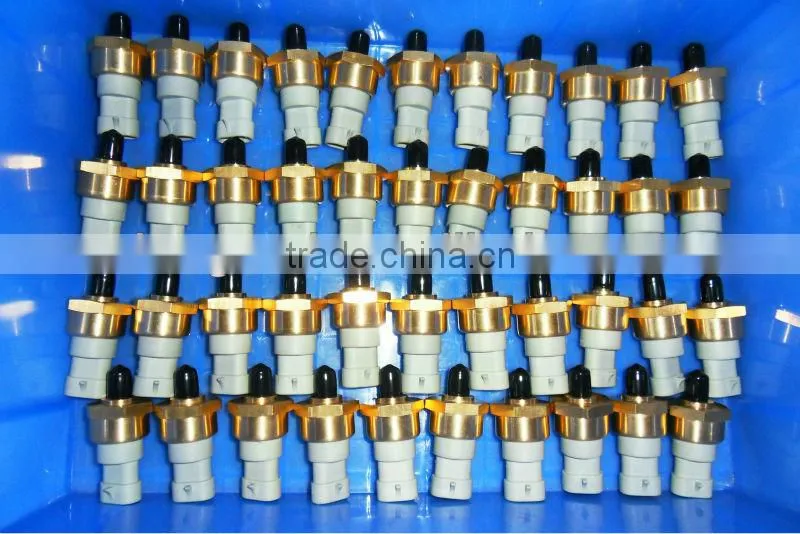

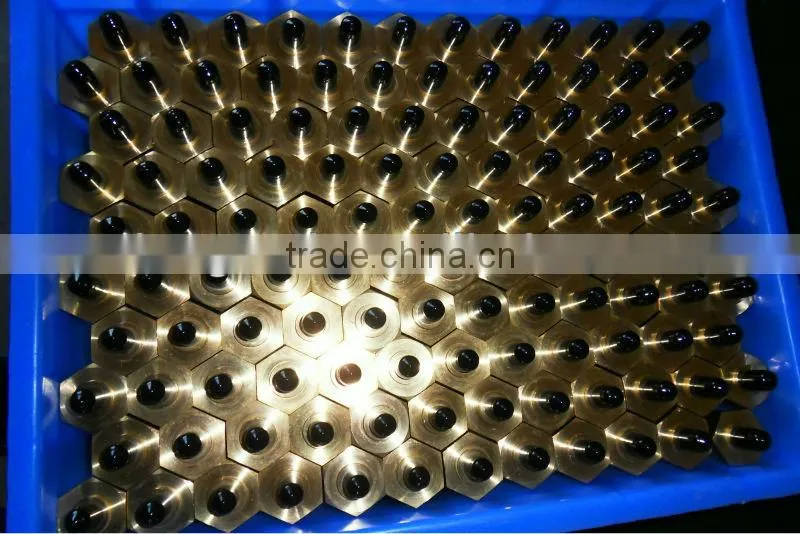

Production Photo:

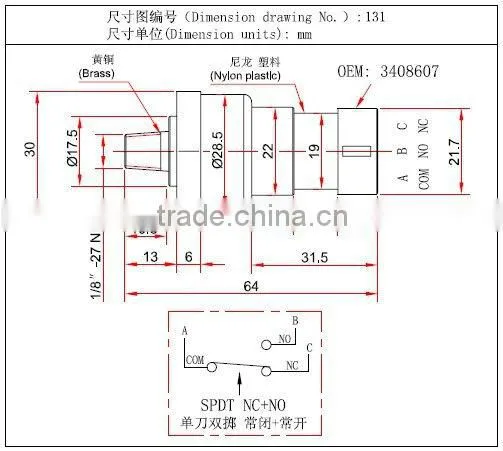

Dimension Drawing:
