low pressure adjusting water pump pressure switch

Specifications

low pressure adjusting water pump pressure switch
easy installation
high quality
Protection class: IP45.
selectable model.

low pressure adjusting water pump pressure switch

Advantages:
fessional skill
2.Specific products
3.Tailored cost-effective production for our customers
Technical Parameter:



1, Switching type : SPST NC or SPST NO (Selectable),

    Switch frequency & Response time: 60 Cycle /min, ≤100ms.

2, Pressure fitting: M12X1.5-6g, Thread (Male ).

3, Electrical connection:  6.35X0.8  Male terminals (Brass &  Silver plating).  .

4, Voltage: 5-110VDC, 5-250VAC;

    Resistance load : 0.1-3A,  Inductive load : 0.1-1A.

5, Fluid media: Air pressure & Water pressure & Vacuum & Oil & Corrosive fluids,etc.

6, Work Life: ≥100,000 Cycle.

7, Protection class : IP00 (No PVC jacket); IP54 ( Equipped with PVC jacket).

8, Ambient temperature: -20°C~55°C, Medium temperature: -40°C~80°C.

9, Model: (Read table 1).

10,Working pressure: Vacuum -14.5PSI to +145PSI (Selectable,   Read table 2).

After-sales service:
                  We promise to carry out the following after-sales service:
        Warranty: The warranty period is 12 months starting from the shipping date.
 The rate of Production Quality Problem is lower to 100PPM, replace the bad for free

Certificate:



Production Photo:

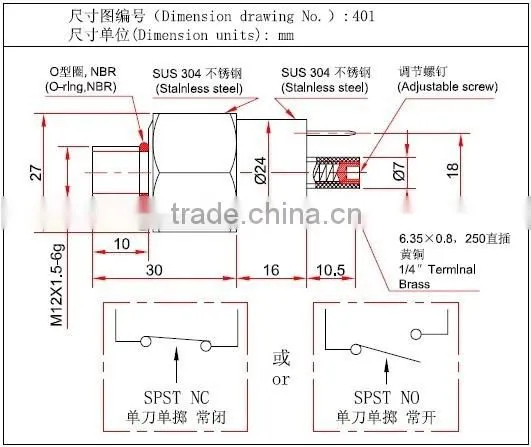

Dimension Drawing:
