pressure control switch for water pump

Specifications

pressure control switch for water pump
Suitable for
Air pressure & Oil pressure & Vacuum
stable performance
compact size

pressure control switch for water pump

Technical Parameter:

1, Switching type : SPST NC or SPST NO (Selectable), Switch frequency & Response time: 60 Cycle /min, ≤100ms.

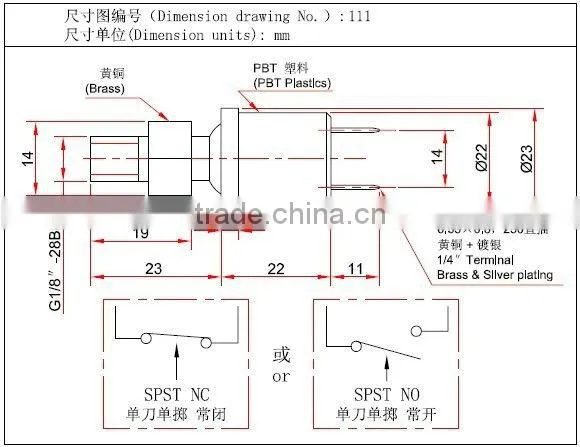

2, Pressure fitting: G1/8"-28BSP  Thread (Male ).

3, Electrical connection:  6.35X0.8  Male terminals (Brass &  Silver plating).

4, Voltage: 5VDC to 110VDC, 5VAC to 250VAC;

     Resistance load : 0.1A to 6A,  Inductive load : 0.1A to 3A.

5, Fluid media: Air,Water,  Oil ,Vacuum,etc.

6, Work Life: ≥100,000 Cycle.

7, Protection class : IP00 (No PVC jacket); IP54 ( Equipped with PVC jacket).

8, Ambient temperature: -20°C~55°C, Medium temperature: 0°C~80°C.

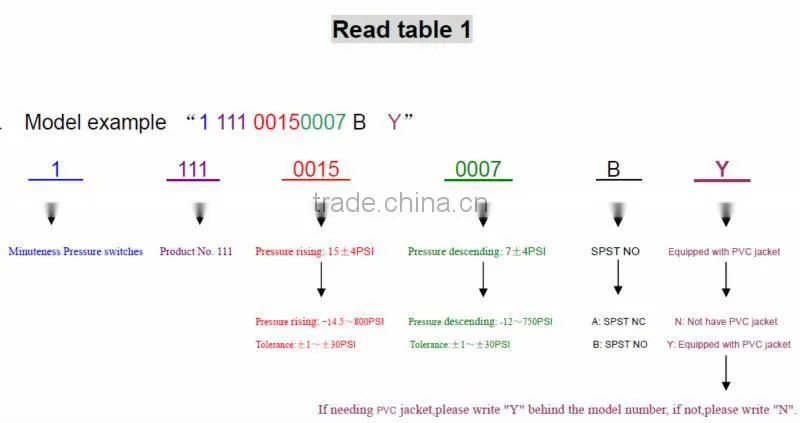

9, Model: (Read table 1).

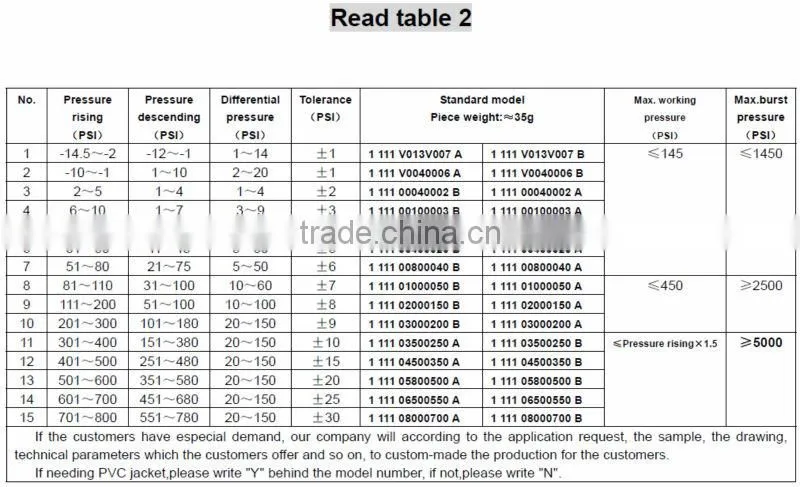

10,Working pressure: Vacuum -14.5PSI to +800PSI (Selectable,   Read table 2).

  After-sales service:
           We promise to carry out the following after-sales service:
        Warranty: The warranty period is 12 months starting from the shipping date.
 The rate of Production Quality Problem is lower to 100PPM, replace the bad for free.





































,
