1092mm and 1575mm Toilet Paper Making Machinery Complete Line

1092mm and 1575mm Toilet Paper Making Machinery Complete Line photo-1
1092mm and 1575mm Toilet Paper Making Machinery Complete Line photo-2
1092mm and 1575mm Toilet Paper Making Machinery Complete Line photo-3
1092mm and 1575mm Toilet Paper Making Machinery Complete Line photo-4
1092mm and 1575mm Toilet Paper Making Machinery Complete Line photo-5
1092mm and 1575mm Toilet Paper Making Machinery Complete Line photo-6
US$ 50,000 - 150,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Toilet Tissue
Processing Type:
Paper Slitting and Rewinding Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Toilet Tissue
Processing Type Paper Slitting and Rewinding Machine
Place of Origin Henan, China
Brand Name shun fu
Model Number 1092mm-1575mm
Voltage 220V/380V
Power(W) 200KW
Dimension(L*W*H) Depends on model and configuration
Weight 1500kg
Certification Other, ISO9001:2008
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

     1092mm toilet paper making machinery complete line



Technical parameters

1. Output paper style: tissue paper;

2. Raw material:Virgin pulp;

3. Output paper weight: 13-30g/m2;

4. net paper width: 1000mm-1200mm;

5.Width of cylinder mould: 1450mm;

6.Capacity: 2T/D;

7 Rail gauge:1800mm;

8 Drive way: AC inverter speed, section drive



All Equipments

NO.

item

qty(set)

1

1092mm tissue paper machine

1

2

double layer Exhausted hood of dryer can

1

3

Φ600mm axial-flow ventilator

1

4

Model-33 Roots vacuum pump

1

5

1092mm rewinding &perforating machine

1

6

1092mm paper cutting machine

1

7

Suction box

1

8

3m3high consistency hydrapulper

1

9

Φ250mm pulp refiner

1

10

Φ700mmThruster

4

11

606sand remover 6 pcs

2groups

12

4 inch pulp pump

4

13

1ton boiler(burn coal)

1



1092mm and 1575mm toilet paper making machinery complete line

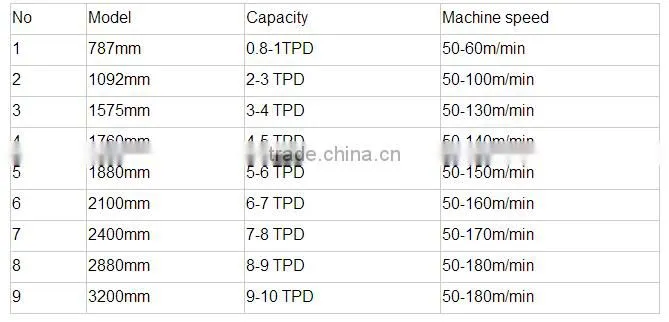

Toilet paper machine model list



Raw material



The flow chart



Related machines



Information we need from you

a. what kind of raw material you will use?

  eg: waste paper, virgin pulp board, rice straw, etc.

b. how much is your expecting capacity(tons/day)?

c. what kind of paper do you want to produce?

  eg: toilet paper, culture paper, kraft paper, etc,

d. what is the paper width(mm)? (trimmed or untrimmed)

e. what is your paper GSM? (g/m2)



These information will help us to know your requirements better, so that we can make a most

suitable proposal for you.

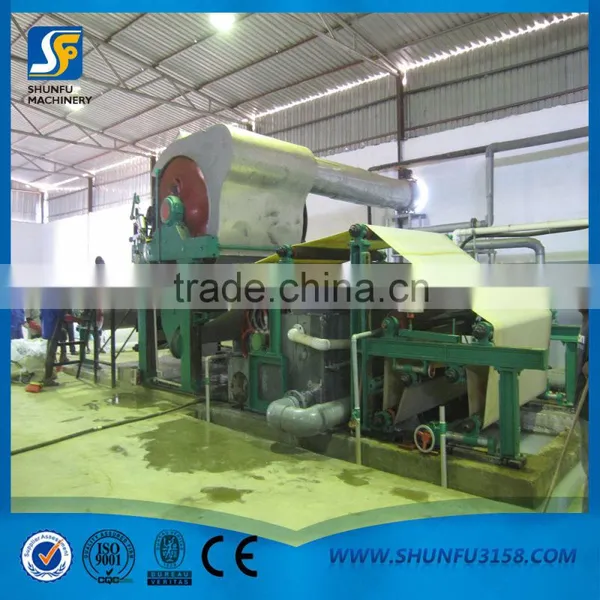

Machine installed



About us

Henan Province Qinyang Shunfu Paper Making Machinery Co; Ltd. Was founded in 1988. We are

specialized in the production paper making machinery, pulping equipment, paper egg tray making

machine and paper processing equipment. Our products had been certificated by ISO9001 and

exported to many countries, such as Uzbekistan, Russia, Kyrgyzstan, Nigeria, Ukraine, Botswana,

Libya, Algeria, El Salvador, Lebanon, Moldova, Bolivia.

1092mm and 1575mm toilet paper making machinery complete line

Qinyang Shunfu Paper Making Factory professional in manufacturing Paper making

machine. We can design and prodcue product line according to customer's requirement.

Welcome to visit our factory!



Business, our common goal is a win-win situation

contact Mr. Dan              skype:     shunfu168

24hours hotline: 0086-15978722592



Best service:

1. We will provide you all technical consultation and make the draw and proposal for you.

2. We will send technicians to install and test the machine for you.

3. We will train skilled workers for you.

4. We will supply best after-sale service.

1092mm and 1575mm toilet paper making machinery complete line
