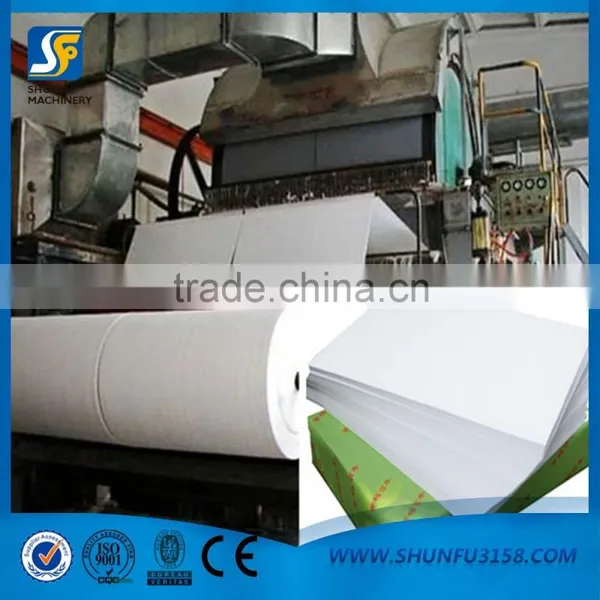

Help CenterHot Sale A4 Paper Making Machine for Paper Mill Quality Choice
Related Products
-
Hot Sale High Speed Culture Paper A4 Paper Making MachineUS$ 130,000 - 150,000MOQ: 1 Set -
Qinyang Shunfu Office a4 Copy Paper Making MachineUS$ 350,000 - 430,000MOQ: 1 Set
-
Hot Sale Good Quality Copy Paper Making MachineUS$ 200,000 - 400,000MOQ: 1 Set
-
A4 Paper Making Machine With Large Capacity and High EfficiencyUS$ 110,000 - 1,000,000MOQ: 1 Set
-
A4 Paper Making Machine With Good QualityUS$ 70,000 - 500,000MOQ: 1 Set
2880mm type A4 paper/copy paper making machine

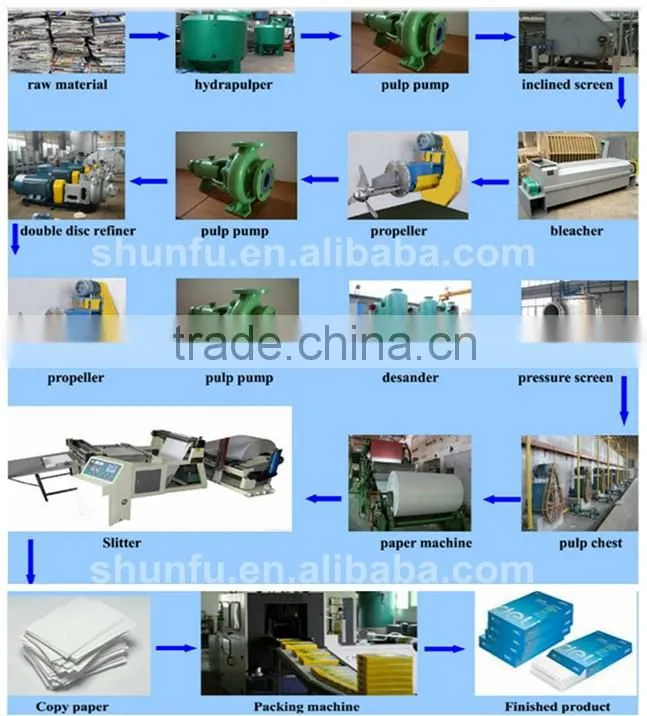

Process Flow Diagram
Raw materials (waste paper)——pulper——vibrating sieve——pulp tank——pulp pump——
bleach machine(thruster)——refiner machine——pulp tank——pulp pump——pressure sieve
——pulp tank—— pulp pump——except sand machine——net box——cylinder——blanket
——paper making machine——drying——rewind paper——the big finished jumbo paper ——
process machine
a4 paper(rewinder machine——cutting paper machine——small roll paper)
Main Technical Parameter
Machine Model |
1092 |
1575 |
1760 |
2200 |
2500 |
2800 |
|
|
Width (mm) |
1350 |
1750 |
1900 |
2150 |
2450 |
2750 |
|
|
Finished Products Diameter |
Φ 60~150mm (Tightness can be adjustable) |
|||||||
Finished Products Inner Diameter |
Φ32~50 mm |
|||||||
Jumbo roll diameter (mm) |
Φ 1200 (Other sizes can be ordered) |
|||||||
Jumbo Roll Inner Diameter |
3”,76.2 mm (other sizes can be ordered) |
|||||||
Perforation distance (mm) |
4 blade,90~160mm;2 blade,180~320mm; |
|||||||
Production speed |
160-180 m/min |
|||||||
Parameter set |
Touching-screener Multi-menu Man-machine Interface Operation System |
|||||||
Programmable controller |
Mitsubishi PLC program |
|||||||
Mechanical driving |
Driven by stepless speed-regulator to guarantee the precise length of final products. |
|||||||
Embossment unit |
Single embossment, Double embossment, Steel to steel embossment; |
|||||||
Embossment down roller |
Felt roller, paper roller, rubber roller |
|||||||
Jumbo roll stand |
1-3 plies (ply quantity can be ordered) |
|||||||
Air pneumatic system |
3 Pa (air-compressor), the minimum pressure 5kg/cm2 pa (customers should be prepared by themselves) |
|||||||
Power |
5.5-15KW (Frequency speed-regulate ) |
|||||||
Overall size (m)(L×W×H) |
7 X (2.3-4) X 1.8 |
|||||||
Weight of equipment |
4000~8000kg (approximately) |
|||||||
Chosen items (Should be ordered separately) | ||||||||
Embossment |
Single embossment, double embossment, steel to steel embossment |
|||||||
Embossment down roller |
Felt roller, paper roller, rubber roller |
|||||||
Jumbo roll stand |
1-3 plies |
|||||||
Jumbo roll stand driving |
Driven by variator |
|||||||
Rewinding unit |
Non-core unit |
|||||||
Printing unit |
Single color heliotype printing unit |
|||||||
Side rolling embossment |
Steel to steel |
|||||||
Perforation mode |
Air pneumatic separating unit |
|||||||
Smooth embossment |
Steel to steel, Steel to rubber ; |
|||||||
Remote telecom service system |
Should be ordered separately. |
|||||||
Raw material
Paper making Process
Finished product

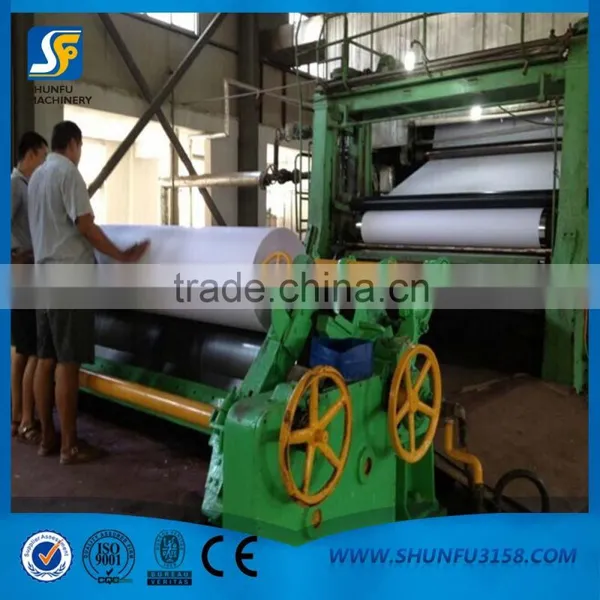

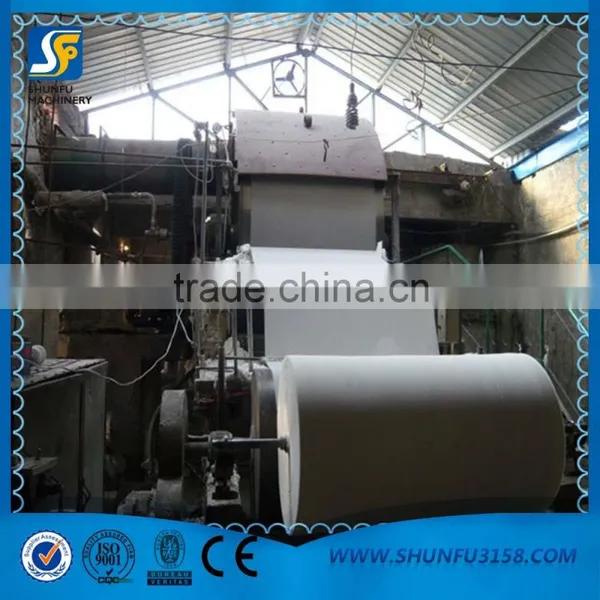

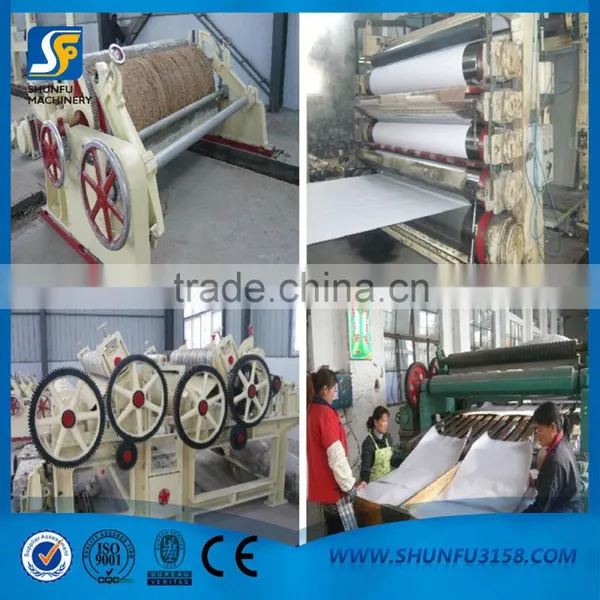

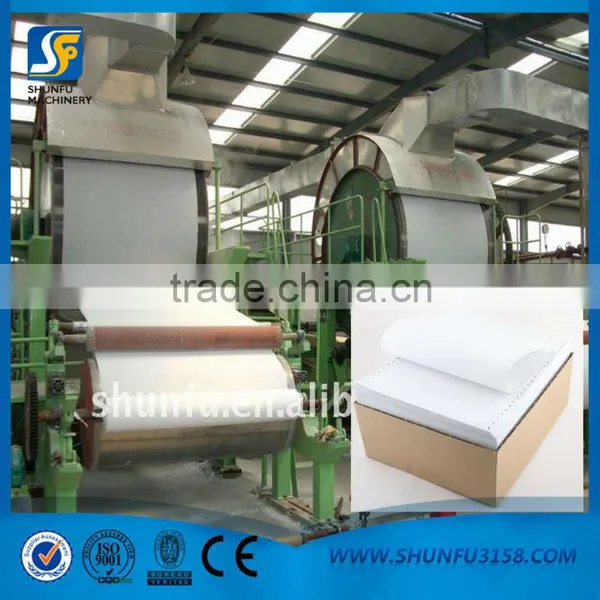

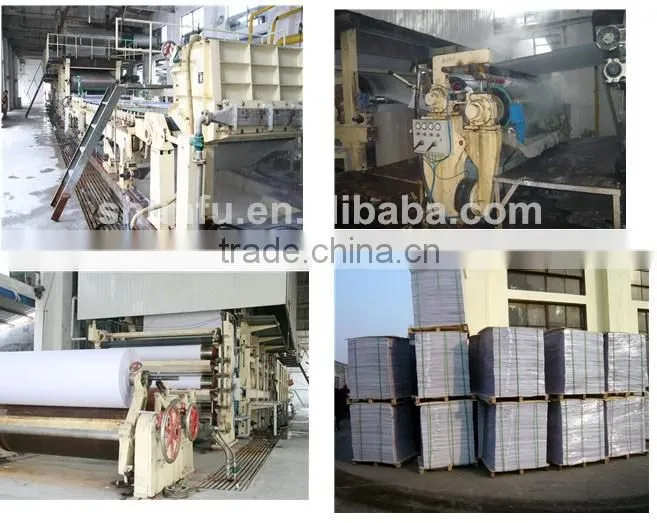

Main machines
Our service
1.Free consulting services, help the user to do project feasibility analysis.
2.Series of products related information for customer reference.
3.According to customer's actual situation, to provide equipment design and installation drawings
and production of the required information.
4.Production of various materials used for grades, technical performance indicators,requirements,
suppliers, and reference price and related information.
5.Common faults and trouble shooting in the use of production.
6.Can send technicians to install test equipment and design.
Company information
Henan Province Qinyang Shunfu Paper Making Machinery Co; Ltd. Was founded in 1988. We
are specialized in the production paper making machinery, pulping equipment, paper egg tray
making machine and paper processing equipment. Our products had been certificated by ISO9001 and exported to many countries, such as Uzbekistan, Russia, Kyrgyzstan, Nigeria, Ukraine,
Botswana,Libya, Algeria, El Salvador, Lebanon, Moldova, Bolivia.
Hello, this is Dan.
If you are interested in our paper making machine or you want to know more about our
products, please contact me or by sending me email at any time.We are willing to establish
long-term relationship with new and old customers at home and abroad to achieve mutual benefit .
FAQ
1.How long it will take to get the quotation?
we usually give reply within 24hours after getting your inquiry.
If you are urgent to get the quotation,please feel free to call me or tell us by email,then we can reply
you as the first priority.
2.Can you make paper mill design for us?
Yes,we have professional team with rich experience of paper mill design by CAD software.you only
need to tell us your open land dimension,we will make your future paper mill design.
3.How about your machine quality,we are worry about the quality
SF is a mature brand in China,more than 30 years manufacuturing experience of different kinds of
paper machines.We strictly manufacture and manage according to IOS9001:2008 System.and can
match all the CE standard or more strict standard.our paper machine is running well in more than 20
countries.we are gold supplier on alibaba already 4 years.
4.Your machine price is high, is there any discount?
we always provide high quality paper machines,we are paying more attention on oversea market,
because of communication time after sales,and also it need very long time to send new parts.our
paper machines have enough quality standard to make sure the machine can work more than the
real warranty period.our marketing style is quality=price and price=quality,the price will be acceptable
for our clients and durable for our machines.anyhow,when we will negotiate the price with each other
during our meeting in factory.and get a good satisfaction.
5.How we visit your factory and what will be the procedure?
Our company located in Shangnian Zone, Qinyang city, zhengzhou city, henan province. we will pick
you up from airport as well as the train station in Zhengzhou city.we will take you to see our machine
running in our Chinese clients' paper mill.welcome you and your team to visit us at any time!
6.Could your engineer teach and train our worker and stay in our factory for long time?
Yes,we have very large engineer installation team,they can train and teach your worker to operate
paper machine,but you should pay them salary.
