1575type A4 copy paper making machine with high quality
1.Technical parameter of office print paper making machine
1.Production varieties :A4 paper, office paper, culture paper, copy paper, etc
2.Paper grammage:50-80g/m²
3.Paper net width :1575-1600mm
4.Design speed :80m/min
5.Working speed : 50-75m/min
6.Rail distance:2400mm
7.Output: 11-13t/d
8.Kind of drive: AC frequency ,section drive
9.Arrange form: left and right hand machine
2.Main frame of printing paper making machine

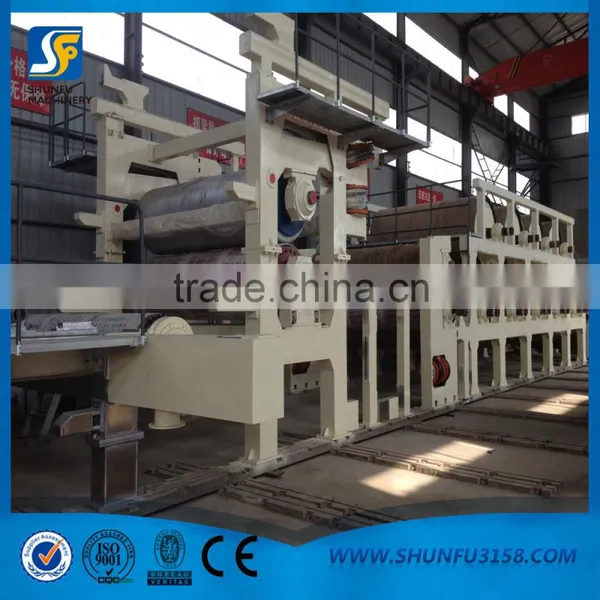

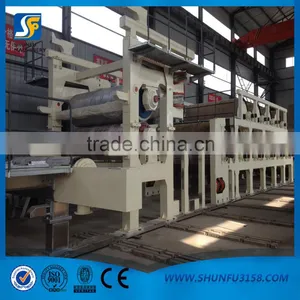

1. Fourdrinier part: The length of fourdrinier part is 8260mm, vacuum couch roll Φ650mm×1950mm open style headbox, inner is bordered with stainless steel, drave by two homogenate roll, macromolecule water board, macromolecule anti-grinding faceplate, suction box 6 pieces. Roll: none slot roll with rubber covered. Frame: square frame is made of steel. | |||||
2. Compression part:Φ600mm x 3100mm natural marble stone roller (1pc),Φ550mm x 3100mm rubber roller (1pc),Φ450mm x 3100mm natural marble stone roller (3 pcs),Φ400mm x 3100mm rubber roller (3pcs), rubber hardness HSD 90±2. | |||||
3. Dryer part: 2500mm×2950mm alloy dryer can (1pc), 1500mm×2950mm alloy dryer 10 pieces, arrangement: 1+10, Φ450mm x 3100mm secondary cans Pressure roller 1 pc, Φ550mm x 3100m touch roll 1 pc, Pneumatic pressurizing device. Rubber hardness HSD 90°±2. Multi cylinder part equipped with upper and bottom dry mesh device. | |||||

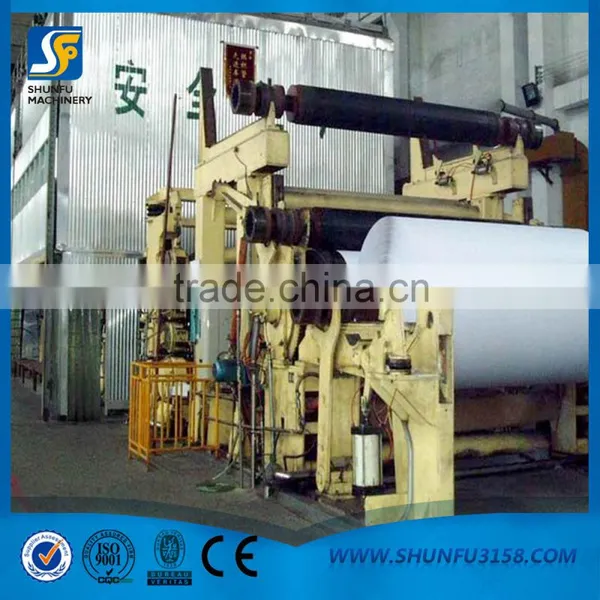

4. Calender and Reeling part: Three rollers calender and cylinder type winding machine. | |||||
|
5. Driving & control part: Equipped with 500 reducer, Motors with AC frequency convertor & adjustable speed, processing transmission.
|
3.Main equipments of printing paper making machine
NO |
Equipments |
Qty(set/s) |
1 |
1575mm fourdrinier and multi-dryer culture paper machine |
1 |
2 |
Dryer can exhaust hood |
1 |
3 |
850 Axial ventilator |
1 |
4 |
15 type Roots Vacuum Pump |
1 |
5 |
Suction box |
6 |
6 |
1575mm Winding machine |
1 |
7 |
1575mm Rewinding machine |
1 |
8 |
3m3 High consistency hydrapulper |
1 |
9 |
1.8 m2 High frequency screen |
1 |
10 |
606 Desander 6 pcs |
1 |
11 |
0.9m2 Centrifugal screen |
1 |
12 |
Φ380 double disc refiner |
2 |
13 |
35m3 Potcher |
1 |
14 |
Φ700 Thruster |
2 |
15 |
Pulp pump-100 |
4 |
16 |
Pulp pump-150 |
2 |
17 |
Frequency conversion control cubicle |
1 |
18 |
Air pump cabinet |
1 |
19 |
Work table |
1 |
20 |
2T boiler(energy: coal or gas or diesel) |
1 |
What we can provide:
1.787,1092,1575,1760,1880,2400,2640,2800,3200mm paper machine
2.paper egg tray machine
3.pulp making equipments
4.paper making equipments
5.paper processing equipments
6.all kinds of spare parts
Best Service:
1.We will provide you all technical consultation and make the drawing and proposal for you.
2.We will send technicians to install and test the machine for you.
3.We will train skilled workers for you.
4.We will supply best pre-sale, after-sales service for you.
Henan Province Qinyang Shunfu Paper Making Machinery Co; Ltd. was founded in 1988.
We are specialized in the production paper making machinery, pulping equipment, paper egg
tray making machine and paper processing equipment. Our products had been certificated by
ISO9001 and exported to many countries, such as Uzbekistan, Russia, Kyrgyzstan, Nigeria,
Ukraine, Botswana, Libya, Algeria, El Salvador, Lebanon, Moldova, Bolivia.
More detail information and scheme, please feel free to contact with me.
