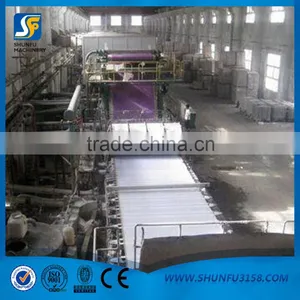

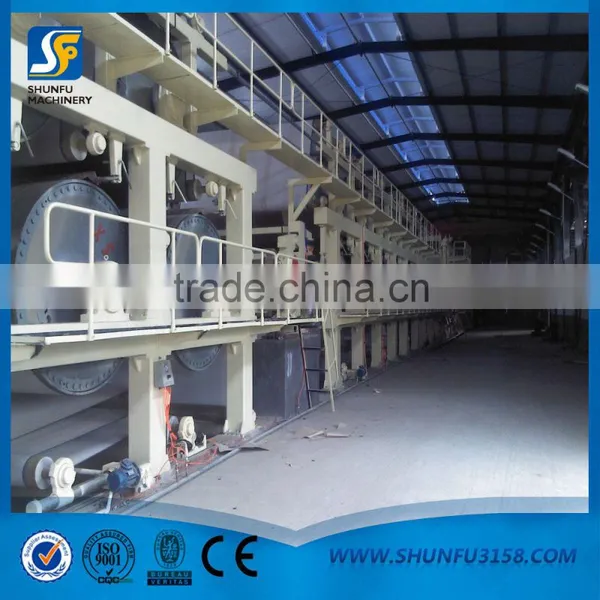

Small A4 paper making machine with ISO certificated
- 5 Set / Sets per Month
- Qingdao or other main ports
- T/T
- Toilet Paper Cutter/Kitchen Towel Cutting Machine Price with High Performance
- High Capacity 3200mm A3 A4 Paper Writing Paper Recycling Machine, Office Paper Product Machinery for Sale
- Best Price 3200 Model Office Paper Copy Paper Manufacturing Line with Good Reputation
- Henan Toilet Tissue Paper Cutter/Cutting Machine with High Quality
- 1880mm Type Napkin Paper Making Machine Made in China
- Manufacturer Supply1575mm Napkin Paper/Tissue Paper Manufacturing Machine
Product Details
Condition: | New | Product Type: | Other, A4 paper making machine | Processing Type: | Other, A4 paper making machine |
Place of Origin: | Henan, China | Brand Name: | Shunfu | Model Number: | SF787 |
Voltage: | 380v | Power(W): | 50-100kw | Dimension(L*W*H): | Depends on model and configuration |
Weight: | 9-10tons | Certification: | Other, ISO9001 | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Copy paper/A4 paper making machine,exercise book making machine
Technical parameter

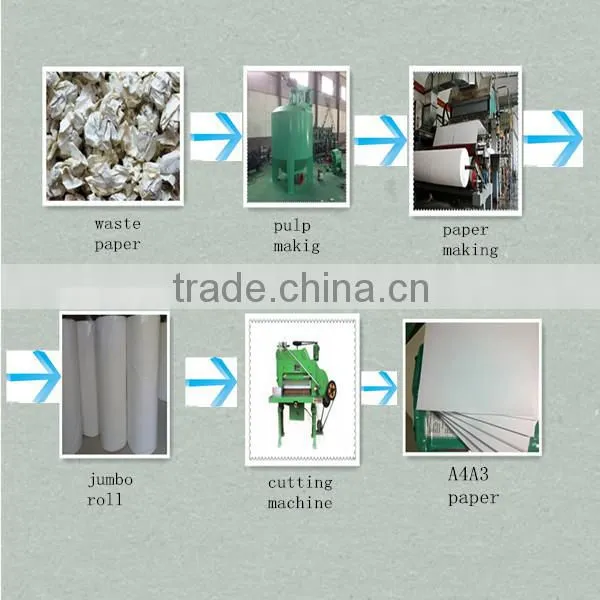

1.Raw material: waste paper, wood pulp board, virgin pulp
2.Output paper style: office paper, A4 paper, copy paper
3.paper weight: 40-90g/m2;
4.paper width: 787-900mm;
5.width of cylinder mould: 1092-1200mm;
6.Capacity : 2T/D;
7.Work speed: 30-60m/min;
main structure and characteristics
1.Reverse roll:200 mm×1100mm,1pcs.The roll body is seamless steel pipe,thickness 12mm,
surface roll package,roll thickness 25mm,roll hardness 95º±2.
1.1.The shelves of return roll can adjust,these are cast iron.
2,Cylinder section:
There are 2 sets stainless steel 800 mm *1100mm cages. Spoke is cast iron structure. The couch
roll 200 mm *1100mm 2pcs,the roll body is seamless steel pipe,roll thickness 12mm,surface
rubber package,rubber thickness 25mm,rubber hardness 35—38 degrees.Move water pipe 2 sets.
Cylinder mould and the shelf of couch roll 2sets,they are cast iron structure.
3,Dryer section:
1250 mm *1100mm alloy dryer can 2set the raw materials are cast iron, surface hardness about 200
degrees. Touch roll 300mm *1100 mm 1pcs,roll body is cast iron,surface rubber package,rubber
thickness 25mm,rubber hardness 95º±2.Match all of felt s and knife rolls. Scraper device 2sets.
4,Press section:Press upon roll 350 mm *1100 mm 1pcs,roll body is pure granite,press under roll
300 mm *1100 mm 1pcs,roll body is cast iron, surface rubber package ,rubber thickness 25mm,
rubber hardness 95º±2.
What we can provide:
1.787,1092,1575,1760,1880,2400,2640,2800,3200mm paper machine
2.paper egg tray machine
3.pulp making equipments
4.paper making equipments
5.paper processing equipments
6.all kinds of spare parts
Best Service:
1.We will provide you all technical consultation and make the drawing and proposal for you.
2.We will send technicians to install and test the machine for you.
3.We will train skilled workers for you.
4.We will supply best pre-sale, after-sales service for you.
Henan Province Qinyang Shunfu Paper Making Machinery Co; Ltd. was founded in 1988.
We are specialized in the production paper making machinery, pulping equipment, paper egg
tray making machine and paper processing equipment. Our products had been certificated by
ISO9001 and exported to many countries, such as Uzbekistan, Russia, Kyrgyzstan, Nigeria,
Ukraine, Botswana, Libya, Algeria, El Salvador, Lebanon, Moldova, Bolivia.
More detail information and scheme, please feel free to contact with me!
