Best selling A4 copy paper making machine with good quality
- 5 Set / Sets per Month
- Qingdao or other main ports
- T/T
- Toilet Paper Cutter/Kitchen Towel Cutting Machine Price with High Performance
- High Capacity 3200mm A3 A4 Paper Writing Paper Recycling Machine, Office Paper Product Machinery for Sale
- Best Price 3200 Model Office Paper Copy Paper Manufacturing Line with Good Reputation
- Henan Toilet Tissue Paper Cutter/Cutting Machine with High Quality
- 1880mm Type Napkin Paper Making Machine Made in China
- Manufacturer Supply1575mm Napkin Paper/Tissue Paper Manufacturing Machine
Product Details
Condition: | New | Product Type: | Other, culture paper making machine | Processing Type: | Other, culture paper making machine |
Place of Origin: | Henan, China | Brand Name: | Shunfu | Model Number: | SF1092 |
Voltage: | 380v | Power(W): | 100-150kw | Dimension(L*W*H): | Depends on model and configuration |
Weight: | 10-13tons | Certification: | Other, ISO9001 | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

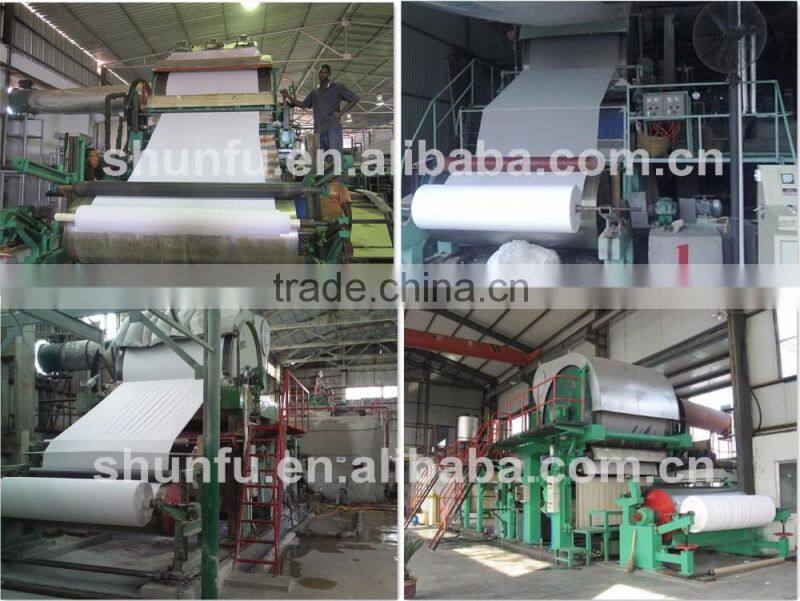

A4 paper / writing paper / printing paper making machine
Copy paper making machine technical data:

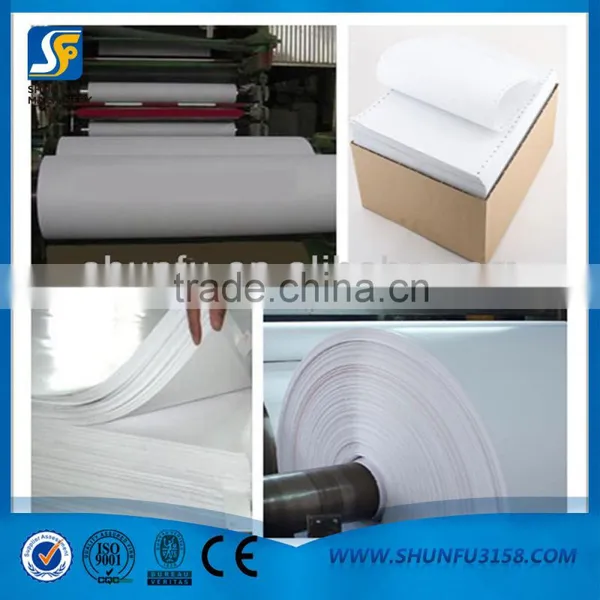

Output paper: High & medium exercise book paper, copy paper, A4 paper, notebook paper
Output weight: 50-100g/m2
Net width:1092-1200 mm
Wire width:1950 mm
Capacity: 2-3T/D
Working speed:80-100m/min
Rail gauge:1800mm
Copy paper making machine application:
This machine consists of 6 main sections.
1.cylinder mould section:
the paper pulp will be picked up by the wire mesh of cylinder mould.cylinder mould quantity depends
on the final paper
gram weight.
section:
water from paper pulp will be removed by press rollers.normally press roller is made by rubber and
marble.

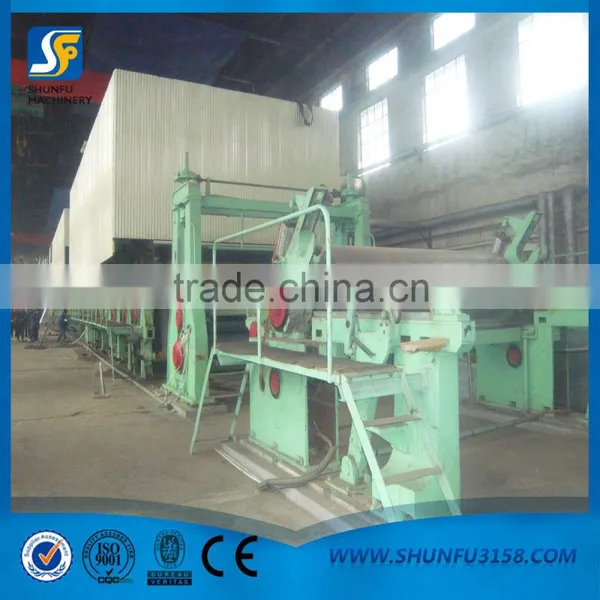

3.dryer section:most water will be removed by dryer can.steam that inside dryer is supplied by
boiler.

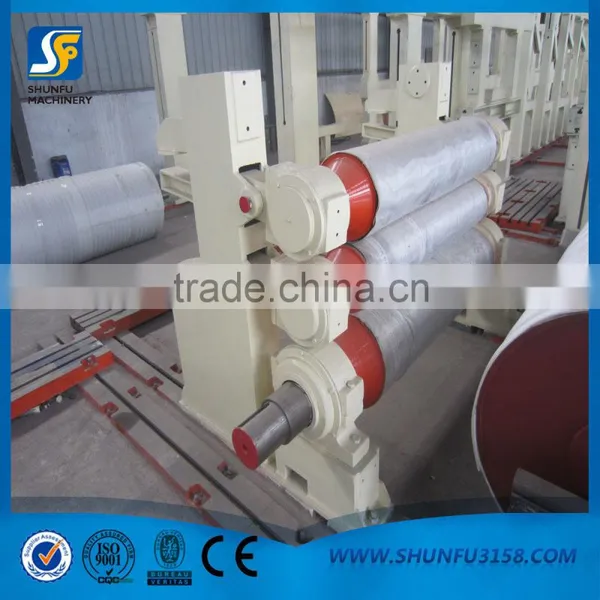

4.calender section:calender section include the calender machine,which is used to make paper
more smooth.
5.paper reeling section:
this section include the paper reeling machine,which is used to reel paper into jumbo rolls.
6.paper rewinding section:
this section include the paper rewinding machine,which is used to cut away deckle edge paper of
finished jumbo roll.
Copy paper making machine list:
NO | Equipment | Qty (set/s) |
1 | 1092mm paper making machine | 1 |
2 | Exhaust hood of the dryer can | 1 |
3 | axial-flow fan | 1 |
4 | Sealed pressure cylinder vat | 1 |
5 | 15 type roots pump | 1 |
6 | Suction box | 2 |
7 | 5m3 high consistency hydrapulper | 1 |
8 | 380 double-disc refiner | 2 |
9 | Centrifugal screen | 1 |
10 | 606 desander(6pcs) | 1group |
11 | 700 impeller | 4 |

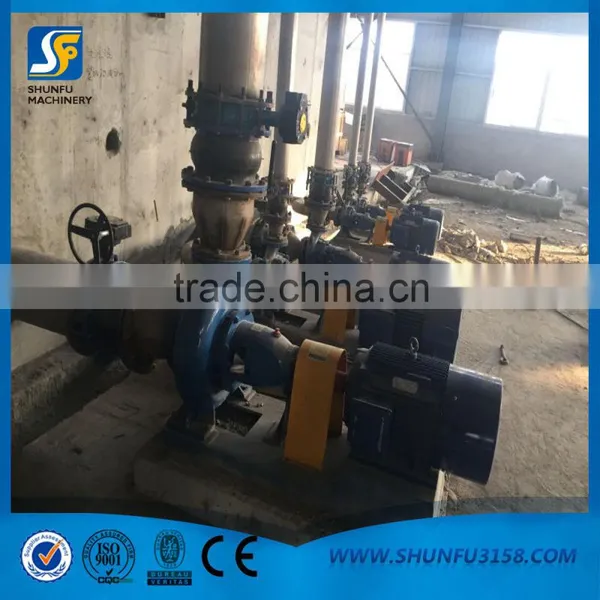

12 | 4inch pulp pump | 4 |
13 | 6inch white water pump | 1 |
14 | Workbench | 1 |
15 | Frequency control cabinet | 1 |
16 | Air pump cabinet | 1 |
17 | Paper rewinding machine | 1 |
18 | paper cutter | 1 |
19 | Boiler(energy: coal or gas or diesel) | 1 |
What we can provide:
1.787,1092,1575,1760,1880,2400,2640,2800,3200mm paper machine

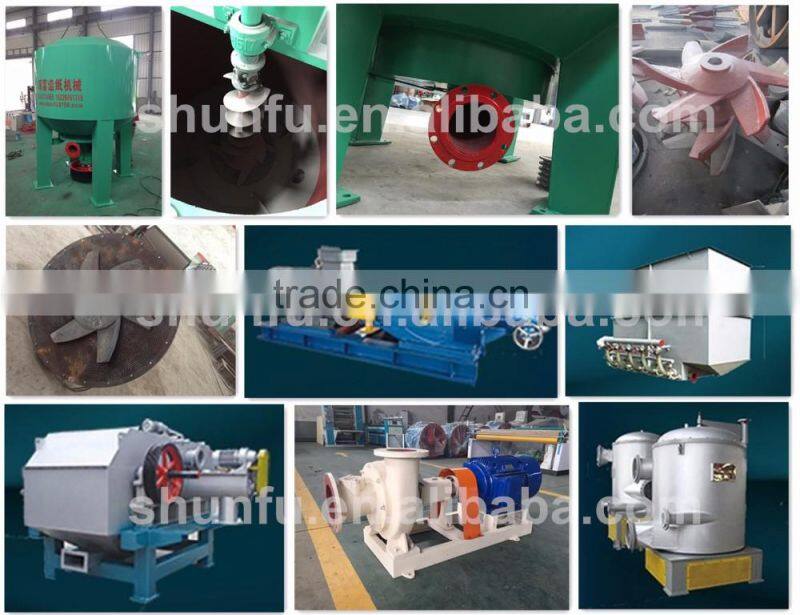

2.pulp making equipments
3.paper making equipments
4.paper processing equipments
5.all kinds of spare parts
Best Service:
1.We will provide you all technical consultation and make the drawing and proposal for you.
2.We will send technicians to install and test the machine for you.
3.We will train skilled workers for you.
4.We will supply best pre-sale, after-sales services for you.
Henan Province Qinyang Shunfu Paper Making Machinery Co; Ltd. was founded in 1988.
We are specialized in the production paper making machinery, pulping equipment, paper egg
tray making machine and paper processing equipment. Our products had been certificated by
ISO9001 and exported to many countries, such as Uzbekistan, Russia, Kyrgyzstan, Nigeria,
Ukraine, Botswana, Libya, Algeria, El Salvador, Lebanon, Moldova, Bolivia.
More detail informations and scheme,please feel free to contact with me!
