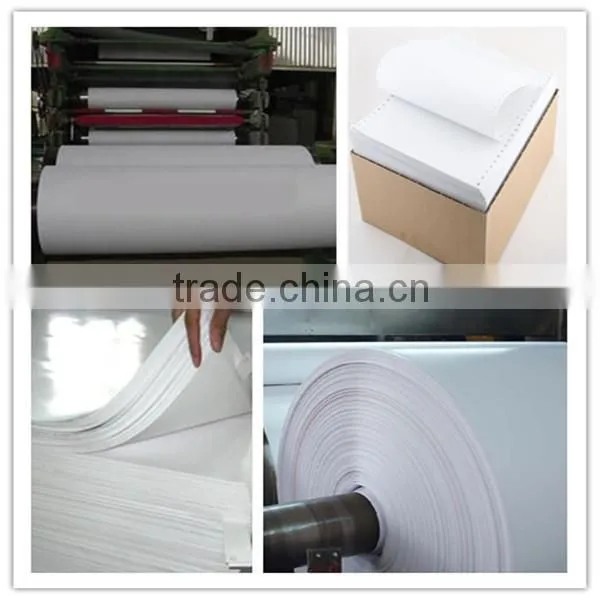

High Quality A4 Size Paper Making Machine From Manufacturer

Name: High Quality A4 Size Paper Making Machine From Manufacturer
Brand: Shunfu
SKU: 115932061

US$ 400,000 - 600,000 MOQ: 1 Set

Key Specifications

Condition:

New

Product Type:

Other, A4 paper making machine

Processing Type:

Other, A4 paper making machine

Qinyang City Shunfu Paper Making Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao or other main ports

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Product Type Other, A4 paper making machine

Processing Type Other, A4 paper making machine

Place of Origin Henan, China

Brand Name Shunfu

Model Number 1880type

Voltage 380v

Power(W) 100-150kw

Dimension(L*W*H) Depends on model and configuration

Weight 25-30tons

Certification Other, ISO9001

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Copy paper/A4 paper/writing paper/printing paper making machine

Product Description

Technical parameter:

raw material	waste paper, wood pulp, virgin pulp
output paper style	A4 paper,printing paper, copying paper and writing paper
capacity	20-30T/D
output paper weight	60-80g/m2
copper cylinder width	2350mm
net paper width	1880mm
drive way	Alternating current frequency conversion adjustable speed ,section drive
Working speed	150-120m/min

Main machine structure

cylinder part	Φ1500×2350mm stainless steel cylinder 3sets, Φ450×2350mm couch roll 3sets, Φ450×2350mm reverse roll 1set, pneumatic pressure device rubber shore hardness 38°C±2.
press part	Φ600×2350mm stone roll 2sets, Φ550×2350mm rubber roll 2 sets, pneumatic pressure device, rubber shore hardness 90°C±2
dryer section	Φ1500×2350mmdryer can 14pcs,arrangement style:8+sizing machine+6,2nd dryer can sectionΦ450×2350mm press roll 1 pcs,Φ550×23500mm touch roll 1 pcs,pneumatic pressure device, rubber shore hardness 90°C±2.there are dry felt device in the multi-cylinder section.
calendaring and winding section	3 roll calendar and cylinder winding machine

All accessory equipment

NO.	Item	quantity(set/s)

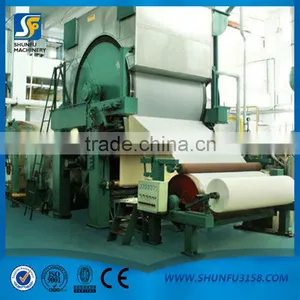

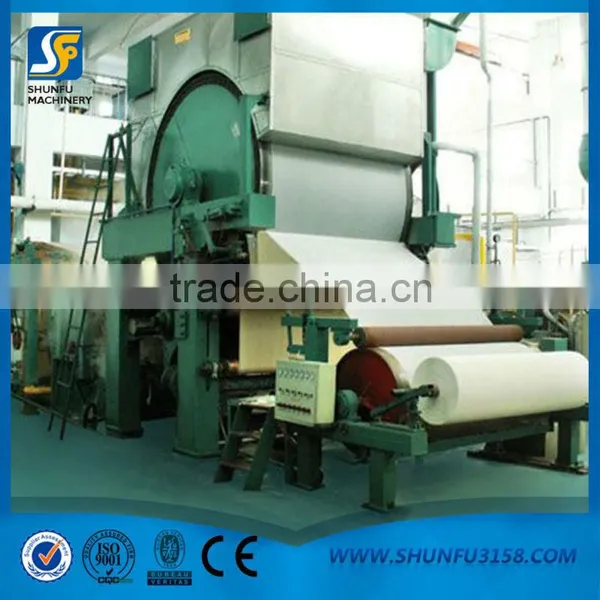

1	1880mm culture paper making machine	1
2	dryer can exhaust hood	2
3	700axial-flow ventilator	3
4	15type roots vacuum pulp	1
5	suction box	4
6	1880mm winding machine	1
7	three-roll calendar	1
8	1880mm rewinding machine	1
9	Single-blade cutter	1
10	A4 paper cutter
11	pulp spray vat former	2

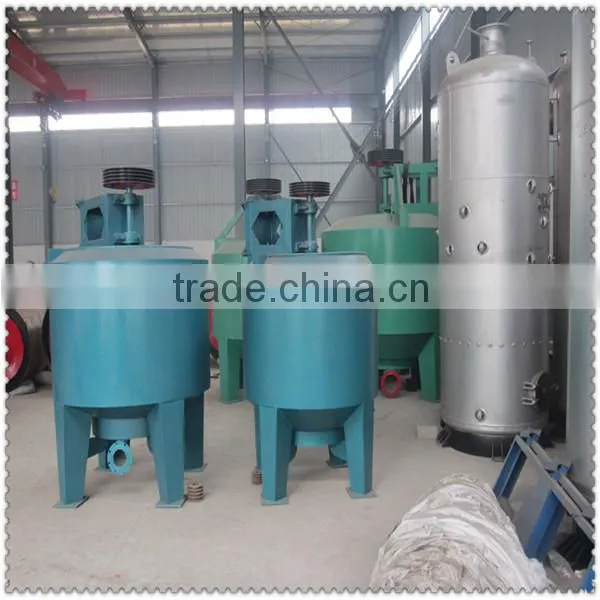

12	10m³ high consistency hydrapulper	1
13	up-flow pressure screen	1
14	high frequency vibration screen	2
15	606type desander(16pcs)	3 groups
16	-200 water pump	2
17	ZSL1.2m2centrifugal screen	1
18	Φ380mm double disc refiner	3
19	14m³ vat thicker	4
20	Bleacher	4

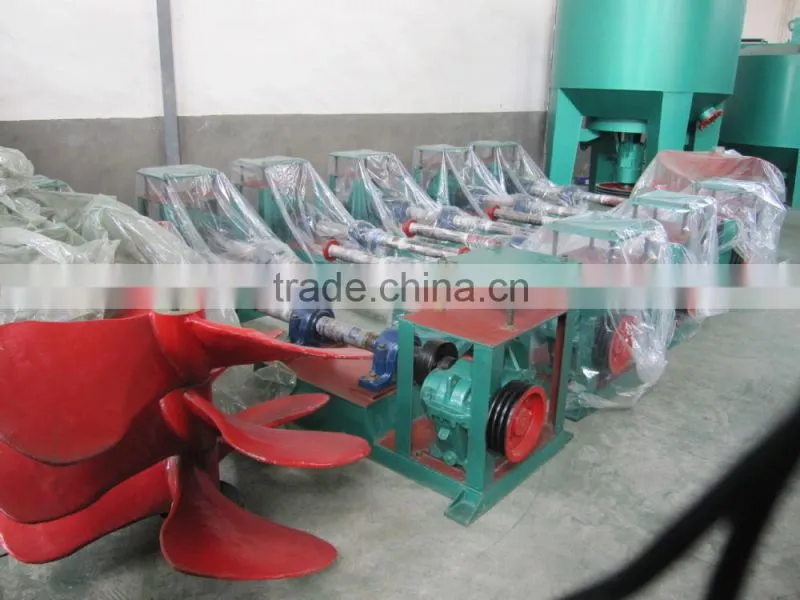

21	Φ700mmthruster	10
22	4 inch pulp pump	10
23	6 inch pulp pump	8
24	frequency conversion controlling cabinet	1
25	air pump cabinet	1
26	work table	1
