- Ozone venturi injector/ Long life Venturi 001/venturi for water treatment system
Specifications
| Input pressure: 2-5 Bar |
| Air suction capacity: 7.5-10 Nm3/h |
| water inlet/outlet: 3/4 inch |
| Air inlet:1/4 inch |
| Length:153mm |
| Water flow: 1-3 ton per hour |
| Suported Water Pump Power: 0.55 kw |
| Working Water Depth: 0.0-2.5 m |
- Description
- 1.Ozone venturi injector to mix ozone to water,a good parts for ozone mixing.
- 2.PVDF material with good ozone resistant.
- 3.Body material: PVDF; PVDF is a natural, high purity material without pigment; PVDF materials with chemical corrosion resistance and solvent resistance properties are excellent; as the fluorine plastics, the heat resistance of PVDF are higher than all the other plastics, heat resistance up to 148 °C; PVDF is a hard material, highly crystalline, abrasion resistance excellent, high mechanical strength, impact resistance, long service life.
- 4.The main models (waterway diameter named): 1/5 inch , 1/2 inch, 3/4 inch , 1 inch, 1.5 inch, 2 inch;
| Product name | Model | Material | Outlet Diameter | Length(mm) |
Water treatment capacity (Liters per Hour) |
Venturi Injector |
Venturi 001 | PVDF | 2" | 295 | 25,000-50,000 |
| Venturi 002 | 1.5" | 275 | 15,000.-25,000 | ||
| Venturi 003 | 1.0" | 235 | 3,000-10,000 | ||
| Venturi 004 | 3/4" | 153 | 1,000-3,000 | ||
| Venturi 005 | 1/2" | 95 | 500-1,000 | ||
| Venturi 006 | 1/5" | 57 | 100-500 |
Application
Widely used in water treatment (dissolved ozone and chlorine dioxide sterilization, oxygenation in addition to iron), chemical industry, aquaculture, direct drinking water machine, petroleum, machinery, electric power, metallurgy, textile, ships, instruments and national defense industry etc.
Advantages:
1.simple structure, safe operation, low cost, quick effect, no power consumption.
2.Not affected by all kinds of radiation, electromagnetic waves, and has corrosion resistance, earthquake, explosion and high and low temperature resistance and other characteristics, suitable for application in a variety of environments.
3.Jet element can be made very small, and the electronic technology can be integrated.

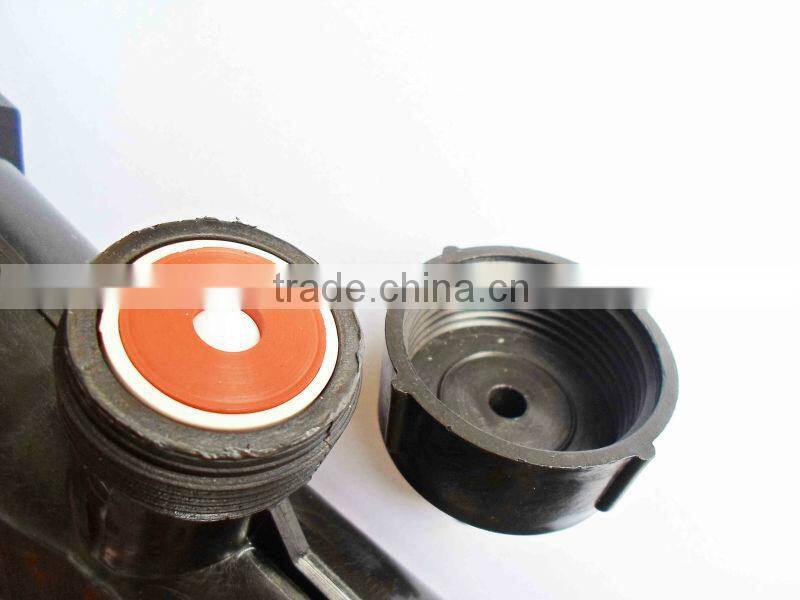

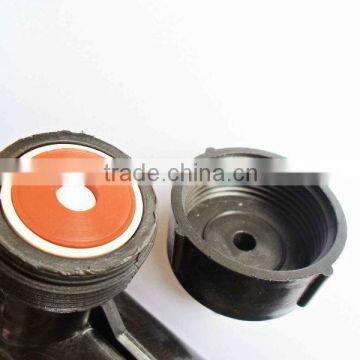

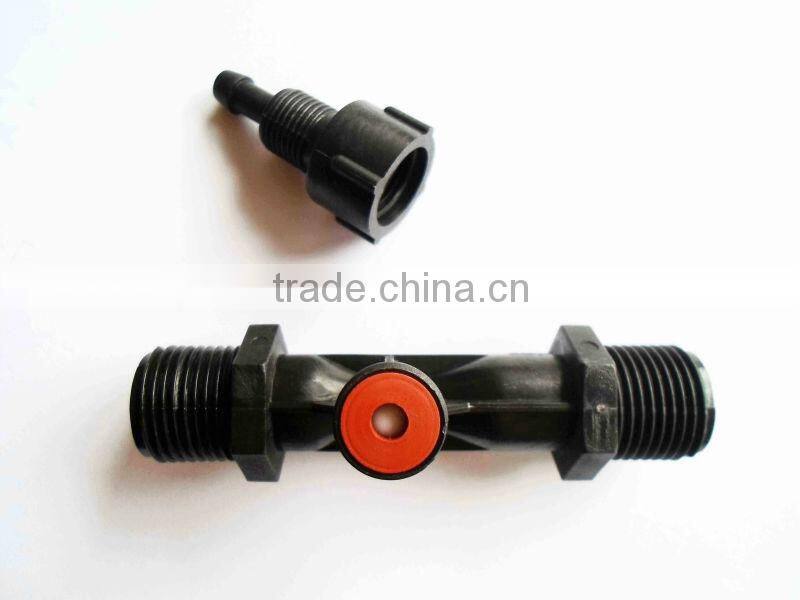

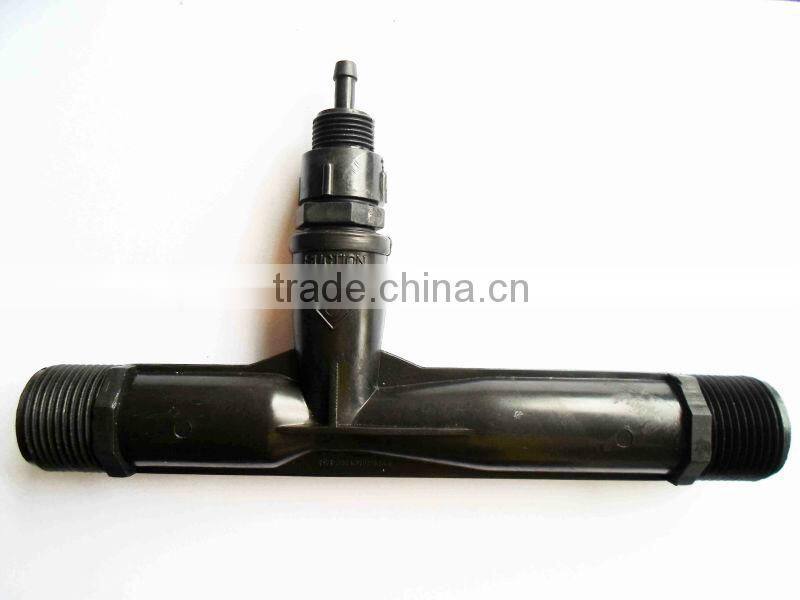

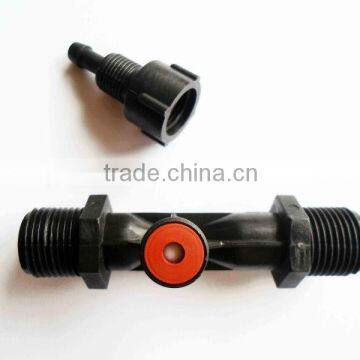

Product picture

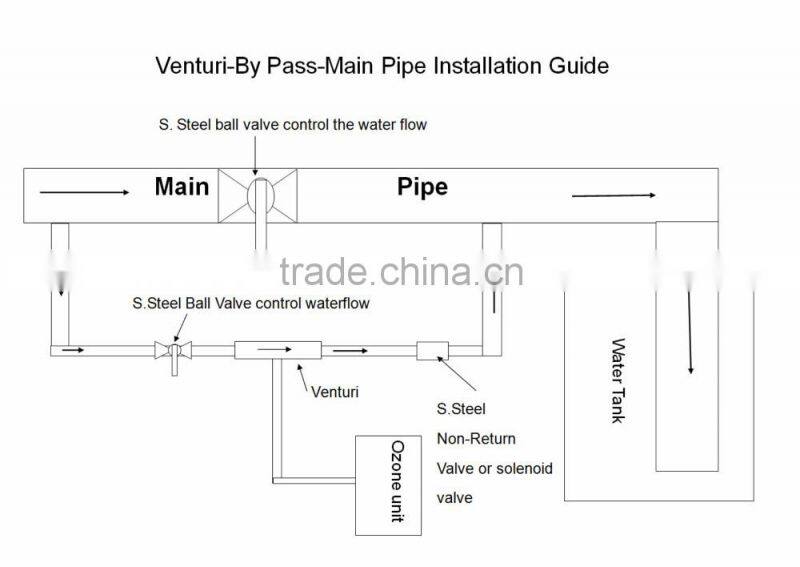

Venturi Installation Diagrams

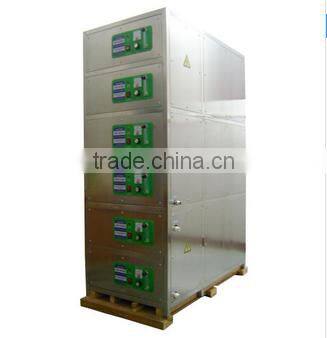

On-line Lonlf-OXF500 Ozone generator /500Grams/Hour
http://longlifeozone.en.china.cn/product/60253922474-219020628/water_purification_Lonlf_OXF500_Ozone_generator_for_water_treatment_in_Swimmig_pool_500Grams_Hour_ozone_generator.html

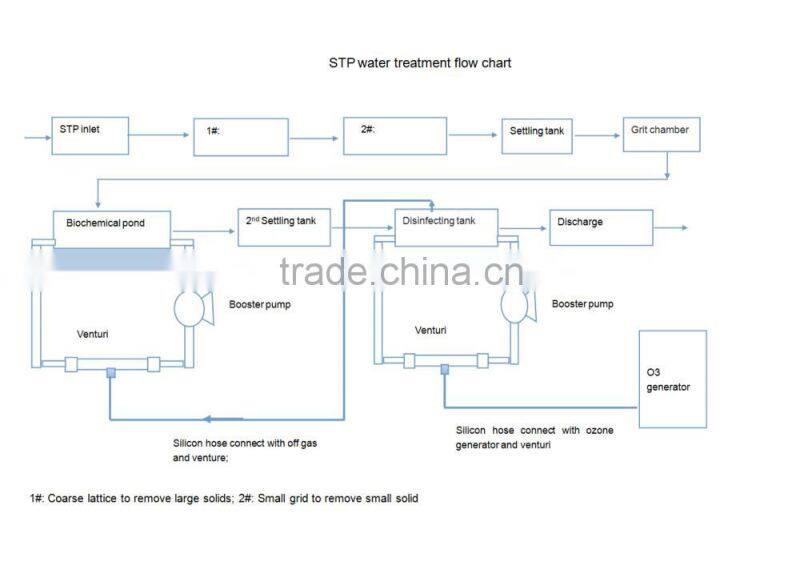

Ozone Application picture
CE Certificate ( EMC & LVD)
