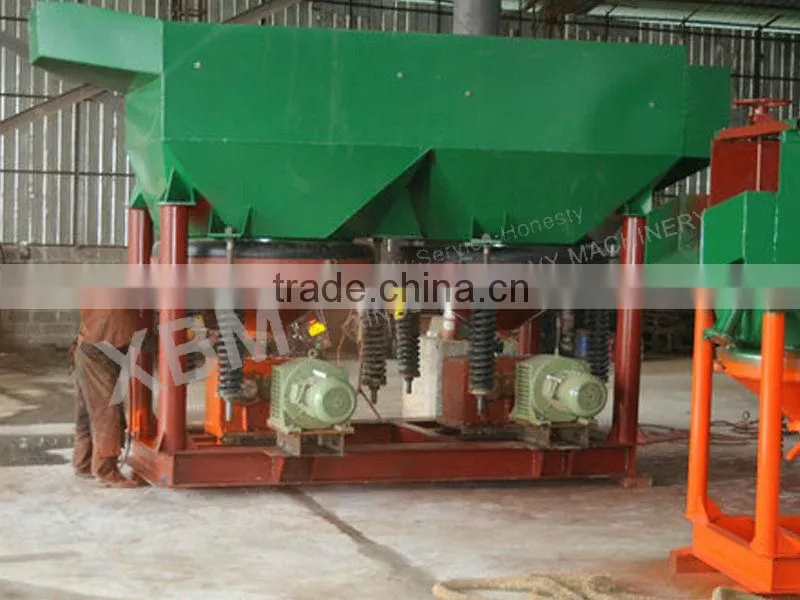

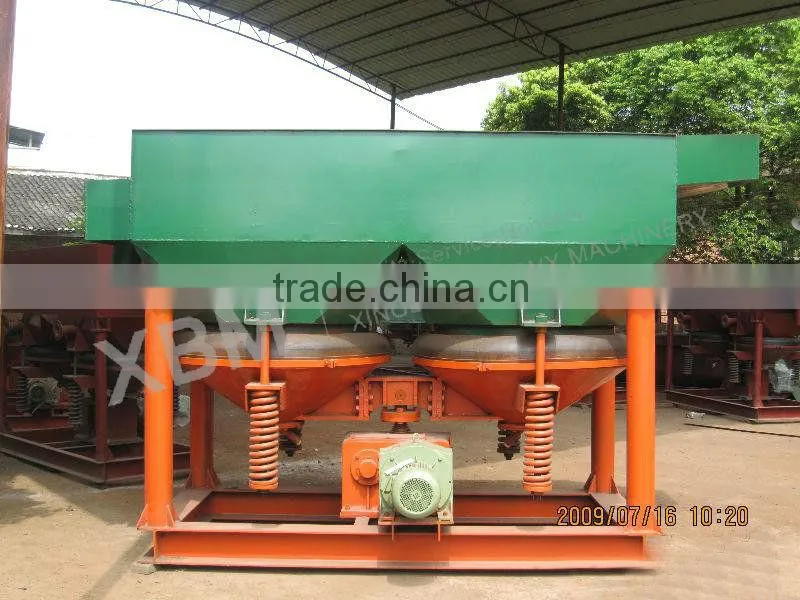

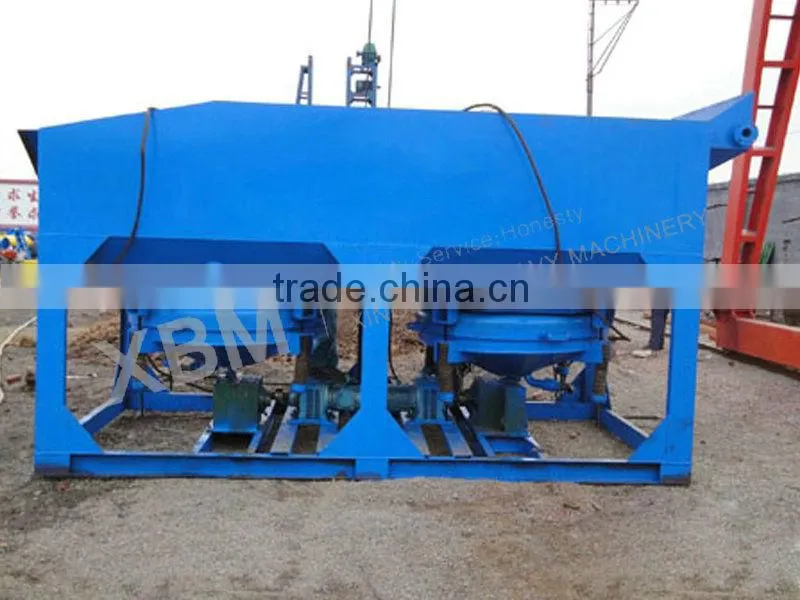

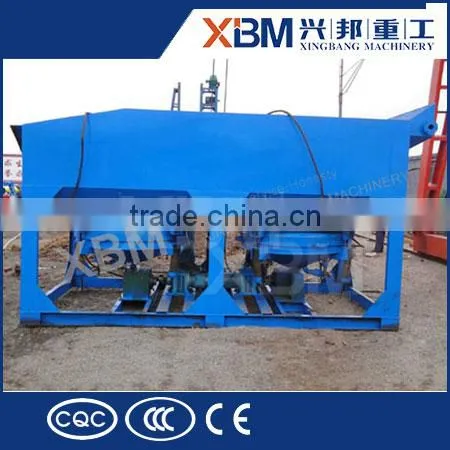

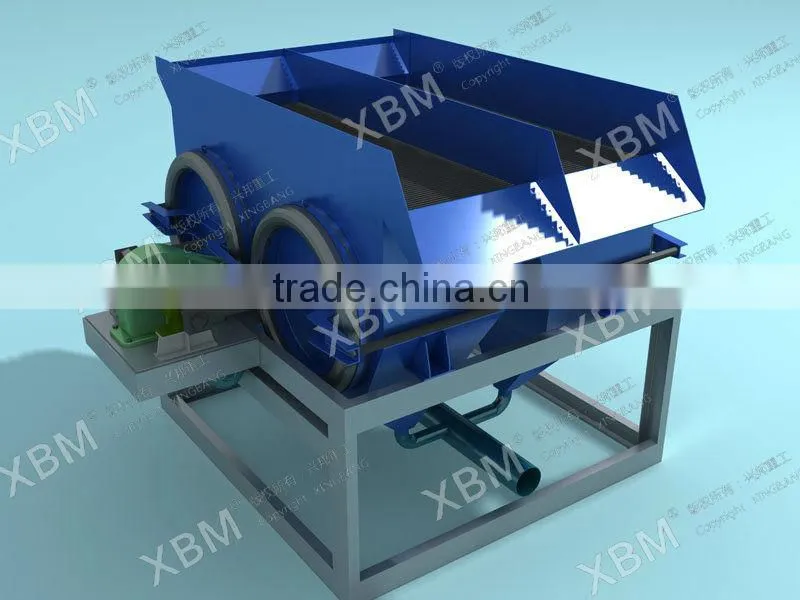

Help CenterNew Design Jigging Machine Used in the Gold Beneficiation Plant
Related Products
-
Supply and Design Professional Tin Ore Processing Plant and SeparatorUS$ 1,000 - 2,000MOQ: 1 Set -
Widely Used Spiral Chute To Separate Limonite,Chromite,Rutile,Monazite,Tungsten OreUS$ 2,000 - 80,000MOQ: 1 Set
-
Hot Sell Copper, Gold , Manganese, Lead Zinc Beneficiation Plant Made in ZhengzhouUS$ 3,000 - 800,000MOQ: 1 Set
-
Copper Ore Processing Plant(Flow Chart/Technique Support)US$ 3,000 - 1,000,000MOQ: 1 Set
-
20 Ton/h Copper Ore Beneficiation Plant (Flow Chart/Technique Support)US$ 3,000 - 1,000,000MOQ: 1 Set
Specifications
1. high recovery rate2. low cost
3. easy operation
4. easy installation
1. Application of jigging machine
Jigging machine is one of the relative new methods for gravity concentration. As a rougher or cleaner device, it is widely applied on the separation of gold, tin, tungsten, titanium, hematite, coal and other minerals due to its high processing capacity, large range of separation size and simplicity of operation and maintenance.
2. Features of the jigging machine
1. Compact structure and small occupation area
2. Energy saving and continuous working
3. High recovery, high unit throughput and low water consumption
4. Simple installation and Minimal maintenance requirements
5. Stroke and frequency of stroke can be easily adjusted
3. Flowchart of the gold plant
Use excavator to feed raw material to the hopper, the grain size more than 100mm diameter can be screened out and discharged directly, less than 100mm diameter will flow into the trommel, mud, sand and gravel will be separated under the action of trammel rotation and high pressure water washing. The gravel more than 10mm diameter will be discharged through sluice, the fine ore including gold whose diameter is less than 10mm will flow into the collecting tank ,there is fixed sluice at one side of the collecting tank, using gold felt to extract gold.
4. Specification of the jigging machine
Main Technical Parameters | |||||||||||
Model |
Jig hutch |
Diaphragm |
Feeding size(mm) |
Amount of make-up water (m³/t) |
Make-up water pressure (Mpa) |
Capacity (t/h) |
Power (kw) |
Dimension(mm) |
Weight (Kg) |
||
Shape |
Area (m²) |
Stroke (mm) |
Frequency of stroke (r/min) |
||||||||
JT0.57-1 |
Trapezoid |
0.57 |
8.5-12 10-17 12-21 |
80-180 |
<6 |
1-2 |
≥0.05 |
1.5-3 |
1.5 |
1550×780×1530 |
610 |
JT1-1 |
Trapezoid |
1.04 |
<10 |
2-3 |
2.5-5 |
2.2 |
2270×1110×1890 |
900 |
|||
JT2-2 |
Rectangle |
2.28 |
<10 |
2-4 |
5-10 |
3 |
3225×1550×2050 |
1640 |
|||
JT3-1 |
Trapezoid |
3 |
12-30 |
50-125 |
<10 |
3-6 |
7.5-15 |
5.5 |
2745×2000×3030 |
3085 |
|
JT4-2 |
Trapezoid |
4 |
25-57 |
<25 |
4-8 |
8-20 |
7.5 |
4240×1990×2750 |
3098 |
||
JT4-2S |
Trapezoid |
4 |
25-57 |
<25 |
4-8 |
8-20 |
4.2 |
4240×1990×2750 |
3500 |
||
JT5-2 |
Trapezoid |
4.86 |
12-30 |
<10 |
3-6 |
12-25 |
7.5 |
3600×2000×2600 |
4500 |
||
