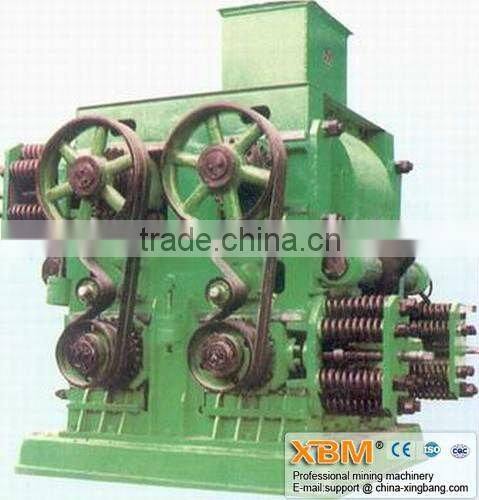

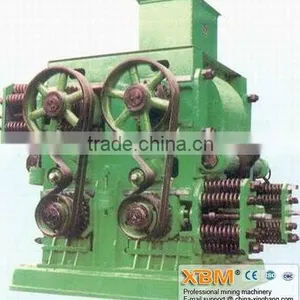

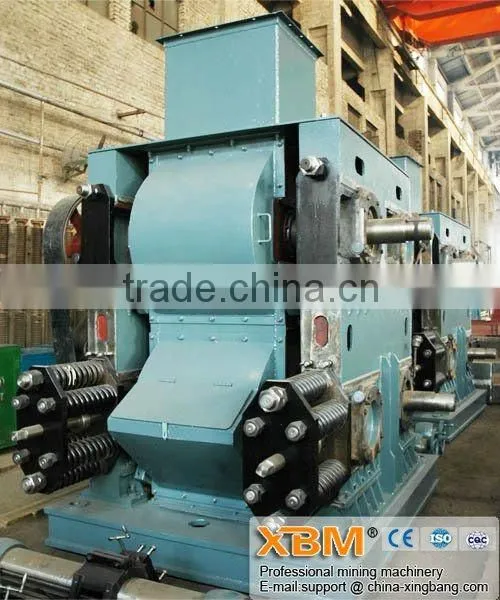

XBM 4PG Series (Four) Roller Crusher for Stone

Name: XBM 4PG Series (Four) Roller Crusher for Stone
Brand: Xingbang
SKU: 115708155
Availability: InStock

US$ 2,000 - 60,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Roller Crusher

Capacity(t/h):

depends on the model

Henan Xingbang Heavy Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Dalian Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Roller Crusher

Capacity(t/h) depends on the model

Place of Origin Henan, China

Brand Name Xingbang

Model Number 4PG

Specifications

XBM 4PG series (Four) Roller Crusher is designed for crushing stones, with its high efficiency, it is popular in our customers!

1. Brief introduction of 4PG series Roller Crusher

1). 4PG series roller crusher is mainly used for the crushing of medium-hard mines and rocks;

2). It is applied in cement, chemical, electric power, metallurgy, building materials, refractories and other industrial sectors;

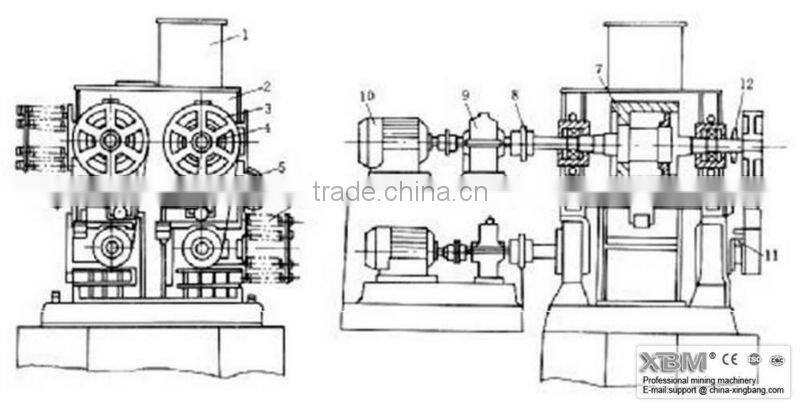

3). 4PG series roller crusher is mainly made up of roller wheels, roller support bearings, clamping and regulation devices and drive devices.

2. Advantages of 4PG series Roller Crusher

1). Small vibration and low noise;

2). Full-sealed design and no dust pollution;

3). High efficiency and low energy consumption;

4). Good flexibility and operational reliability;

5). Average discharging size without blocking up;

6). Automatically screening the materials after crushing;

7). Removable shell which is convenient for daily maintenance and inspection of the machine.

3. Specifications of 4PG series Roller Crusher

1).Reliable,easy to maintain;

2).Low costs for operation ;

3).Discharge granularity adaptable .

Parameters (for reference)

Model No.	Dimensions of roller (Diameter×Length mm)	Discharging size (mm)	Max. feeding size (mm)	Capacity (t/h)	Motor		Dimensions (mm)	Weight (kg)
Model No.	Dimensions of roller (Diameter×Length mm)	Discharging size (mm)	Max. feeding size (mm)	Capacity (t/h)	Power (kw)	Voltage (v)	Dimensions (mm)	Weight (kg)
4PG-Y705	750x500	0-12	85	20-60	11/24/30	380	2760×3590×2650	19200
4PG-Y907	900x700	0-12	100	30-70	15/24/30		9000×4200×3200	27200
4PG-T907	900x700	0-12	100	30-70	30/15/22		4200×3200×3200	26000
4PG-Y1210	1200x1000	0-12	100	40-80	40/55/75		9610×5600×4240	67000
