Specifications
Brick Machine1.ISO9001:2008/CE
2.16 Moulds
3.Capacity:2000-4000pcs/h
4.30 years manufacturer
Brick Machine/Block Machine/Paving Stone Machine
Introduction:
The Brick Making Machine with PLC intelligent control.Man-machine interface, control system equipped with
complete logic control, production program, malfunction diagnosis system and remote control function. So it doesnt
need a professional person but only need a simple trainning to the operator. The brick machine can produce hollow bricks, road bricks, pave bricks, etc. Brick Machine/Block Machine/Paving Stone Machine
Parameters:
Main technical data:
Model: QT6-15
Vibration frequency: 0~4000
Conversion parameter0-60Hz
Molding cycle: 15-25s
Specification of molding box: 850*680mm
Power: 46KW
Weight: 7.5T
Pallet dimension: 850*700*25(mm) Bamboo pallet
Installation dimension: 13500×5000×3500(mm)
Molding capacity:
Hollow block: 6pcs/mold (390*190*190), 11000pcs/day (8hours)
Cellular block: 15pcs/mold (240*115*90), 28000pcs/day(8hour)
Environmental protection block: 21pcs/mold (200*100*60), 30000pcs/day (8hours)
Standard block: 30pcs/mold (238*115*51), 57000pcs/day (8hours)
Brick Machine/Block Machine/Paving Stone Machine

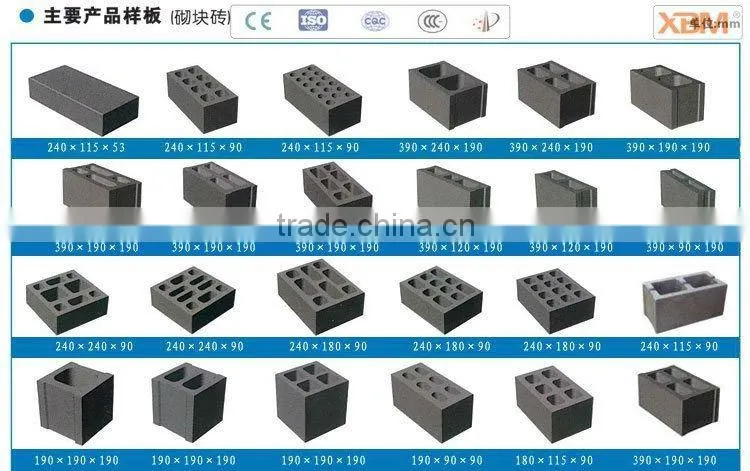

Samples of Brick Machine:
Personalized reception: Offer the full and personalized service in the whole journey after you come to China.
Lifetime Technical Support: Offer one year of free equipment warranty and lifetime technical support.
Monitor Production Progress: You can monitor production progress personally any time after confirming the order.
Product Delivery: We have developed a long and good relationship with many shipping agents, such as APL, MSK, CSCL, MSC, etc.
Installation and Training: Send technicians to the client site for guiding the installation and adjustment, and training operators to complete the inspection and acceptance together with you.
More XBM service details please click here
Six Reasons of Choosing XBM:
- International high quality certification product chain
- Manufactures, more reasonable price
- Solid technical support and after-sales service
- Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)
- One-stop service, customized exclusive project feasibility report
- Exports more than 50 countries and regions, good customers feedback
