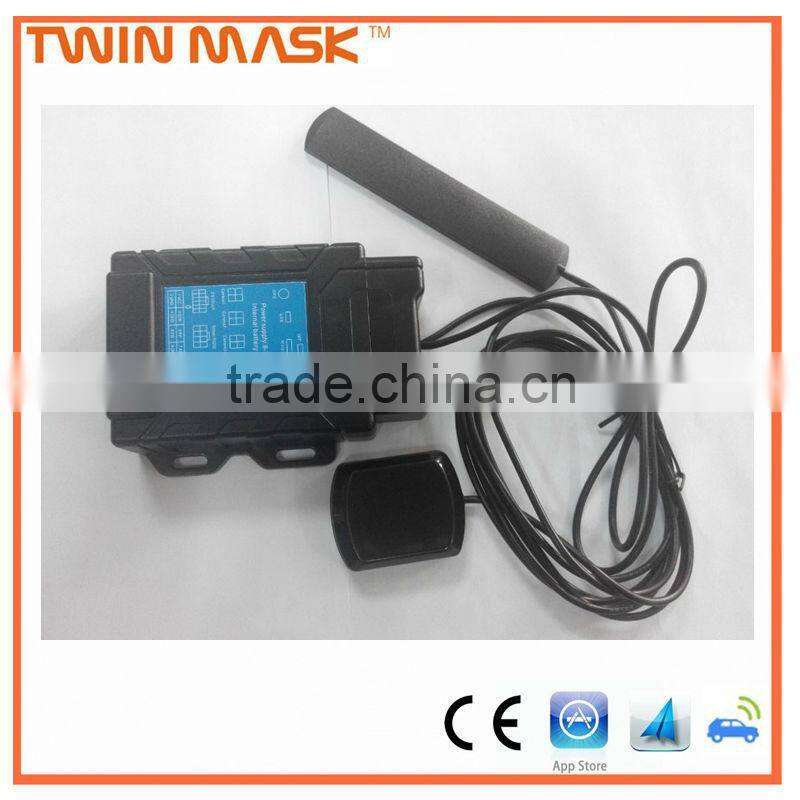

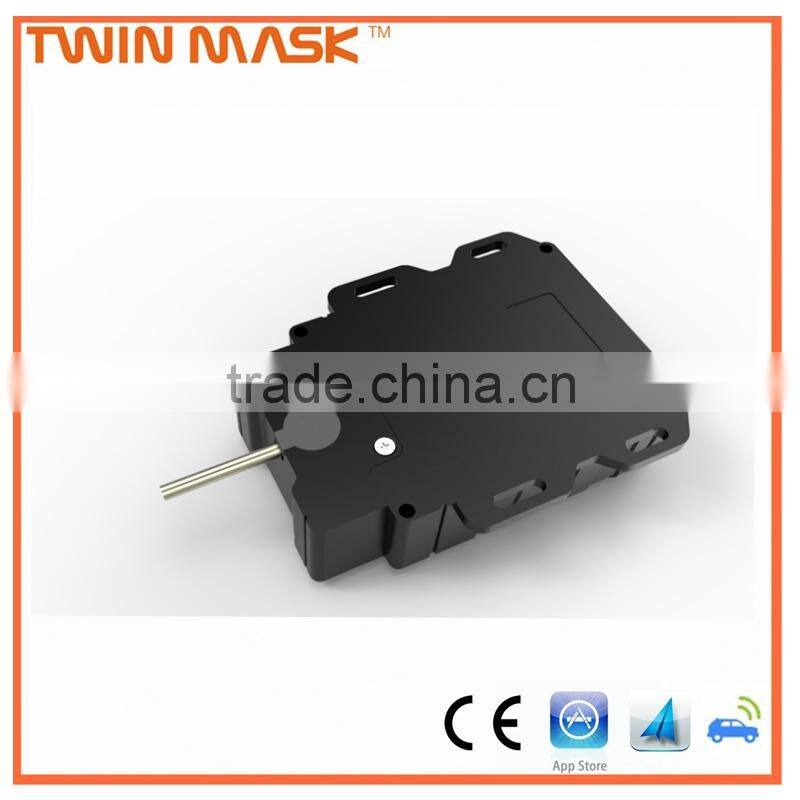

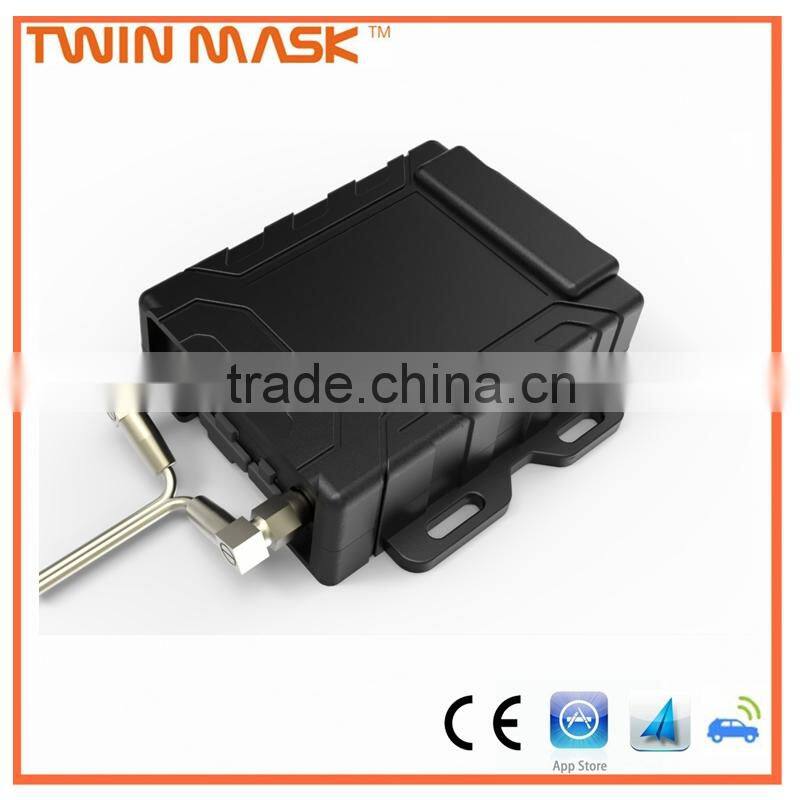

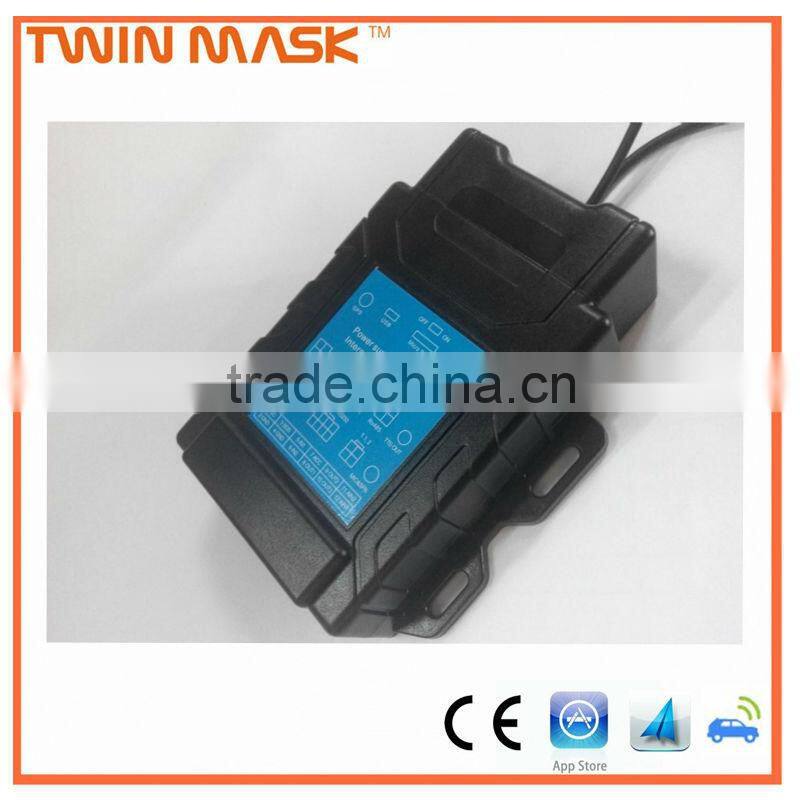

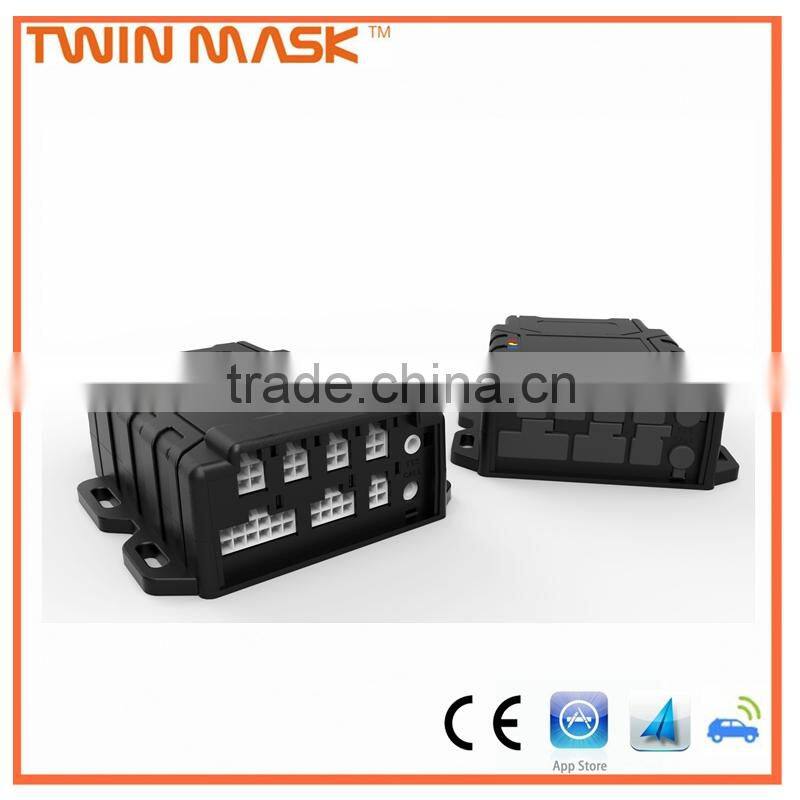

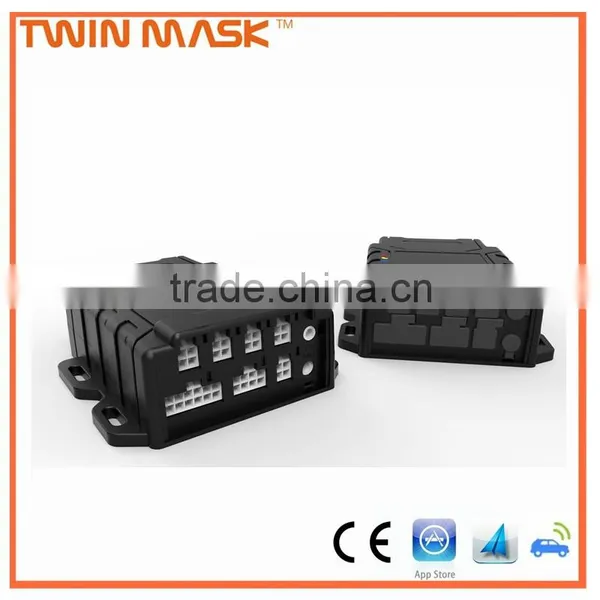

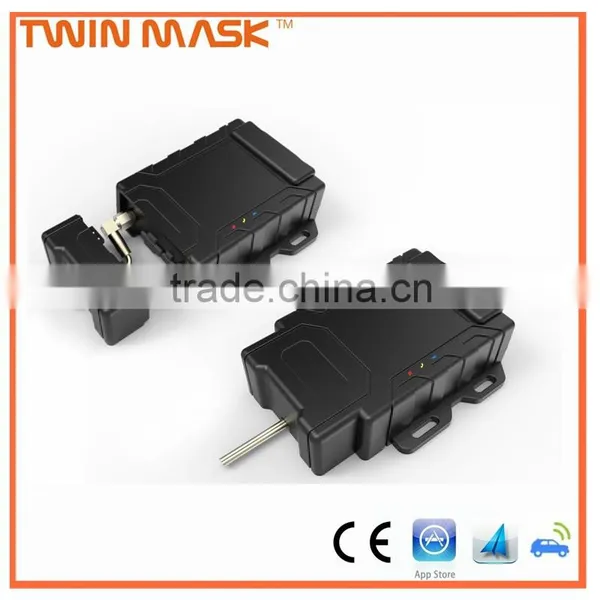

Auto tracking quad brand smart gps vehicle tracker

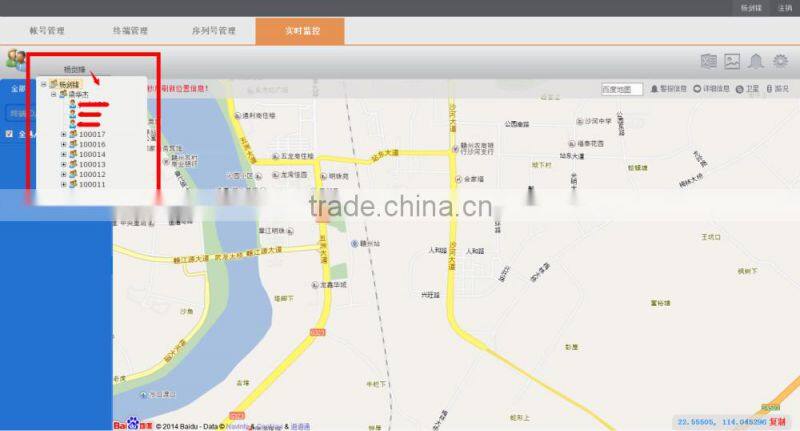

Platform on server

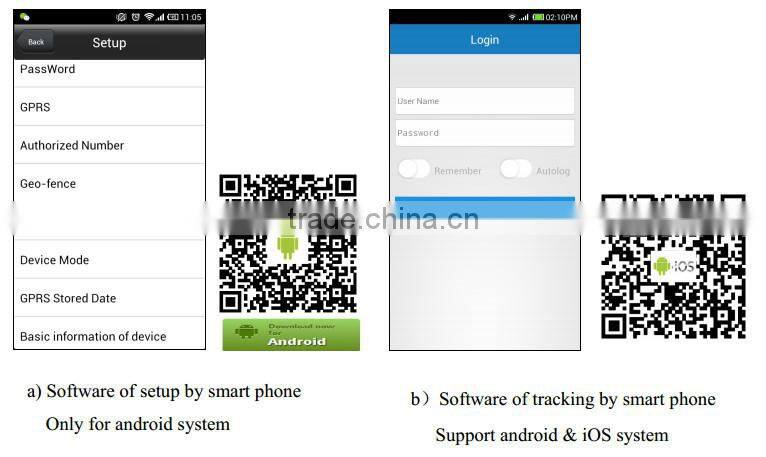

APP for smart phone
Buying sample: user can enjoy a free demo account to use basic function of our standard platform for 3 month
Including smart phone App. and PC service software when buying Megastek full package platform. Maintenance costs: $500/year; Does not contain orignal code; Can install to user server and add logo for free.
Order 1000 units for once, can install platform to clients' server for free, and maintenace cost is $500/year.
Red – Power indication | ||
Always On |
Power charging |
|
Always OFF |
Power Charging completed or no connection |
|
Blue – GSM indication | ||
0.3S On and 0.3S Off |
GSM module is initializing or calling in |
|
Always On |
GSM module cannot be registered |
|
1S On and 3S Off |
GSM module is registered |
|
0.1S On and 3 S Off |
GSM module is registered network and GPRS function works well |
|
0.1S On and 3 S Off |
GSM module is registered network and GPRS function works well |
|
Always Off |
GSM in power save mode |
|
Yellow – GPS indication | ||
0.3S On and 0.3S Off |
GPS module is initializing or waiting for the SOS button press to confirm the calling in number as the authorization number |
|
Always On |
While Pressing Button |
|
1S On and 3S Off |
GPS module is working but hasn't fixed position |
|
0.1S On and 3S Off |
GPS module is working and fixed position |
|
Always Off |
GPS module is not working |
|
Buzzer | ||
Getting 2 times beep sound |
Press for 3 seconds on SOS button or press for 5 seconds on battery checking button |
|
Getting 5 times beep sound |
Low battery |
|
Vibration motor (built-in) | ||
Vibration motor is shaking twice |
Press for 3 seconds on SOS button or press for 5 seconds on battery checking button or low battery |
|
Switch | ||
Power switch |
Turn on /off tracker |
|
Buttons | ||
SOS Button |
Press SOS button for 3 seconds so tracker will send an emergency message to the authorized number and dial the authorized number |
|
Battery Checking Button |
Press this button and if all the lights are on, means tracker has full battery; or If there only one(just the yellow light) is on, said the tracker’s power less than 15%(low battery) |
|
Others | ||
Mini USB port |
Charging, software upgrade and setup parameter by computer |
|
Hang rope hole |
Wear a hang rope |
|
