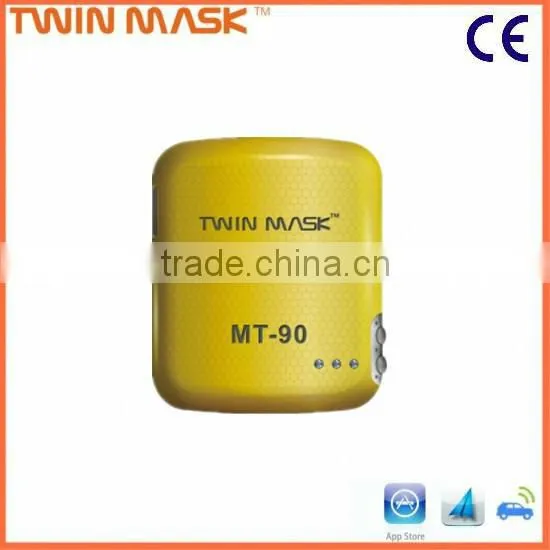

portable gps tracking with google map system – MT90
What is Advantage of our GPS Tracker?
1.Small size
2.waterproof IP67
3.SOS button to send SMS for rescue
4.long time standby ,about 4 days
5.Real-tme GPS location tracking
What Objects do We use GPS Tracker for?
What is Function of our GPS Tracker?
1. Waterproof (IP67) |
7. SMS and GPRS TCP/UDP Communication |
2. Track on demand |
8. Support setting 5 authorized cell phone numbers |
3. Track by time interval |
9. SOS button for immediate rescue and alarm |
4. Geo-fencing control |
10. Speed limit alarm |
5. Spot Alarm |
11. Low battery alarm |
6. Vibration alarm |
12. Data Logger in no GSM signal area using Micro SD card (Max: 2GB) |
What is Specification of our GPS Tracker?
Items |
Specification |
Items |
Specification |
Charging Voltage |
DC 4.2-5.5V/400mA (Mini USB port) |
Operating temperature |
-20°C to 55°C |
Battery |
Rechargeable 750mAh battery (3.7V) |
Humidity |
5% to 95% Non-condensing |
Dimension |
50mm X 40mm X 20mm |
GSM Module |
Quad Band GSM 850/900/1800/1900MHz |
Weight |
50g (with battery) |
GPS Chipset |
Latest GPS SIRF-Star III chipset |
C/A Code |
1.023 MHz chip rate |
GPS Sensitivity |
-159 dB |
Channels |
20 channel all-in-view tracking |
GPS Frequency |
L1 1575.42MHz |
Hot Start |
1 sec., average |
Position Accuracy |
< 15 M 2D RMS |
Warm Start |
35 sec., average |
Velocity Accuracy |
0.1 M/S |
Cold Start |
37 sec., average |
Time Accuracy |
1 us synchronized to GPS time |
Altitude Limit |
18,000 meters (60,000 feet) max |
Reacquisition |
0.1 ms |
Velocity Limit |
514 meters/second (1000 knots) max |
Acceleration Limit |
Less than 4g |
Memory |
Micro SD card (MAX:2GB) |
LED |
1 LED lights to show GPS, GSM and other status. |
|
Work Time
|
Send GPRS data every 1 minutes, work 18 hours ; |
Standby Time
|
Search the satellite every 10 minutes, standby time is 4 days |
Send GPRS data every 10 minutes, work 60 hours |
Turn off the GPS module, standby time is 7 days. |
||
Button |
1 SOS button to send SMS for rescue |
|
|
Accessories
Optional Accessories
Pet belt(optional)
Navigator(optional)
What is Detail of our GPS Tracker?

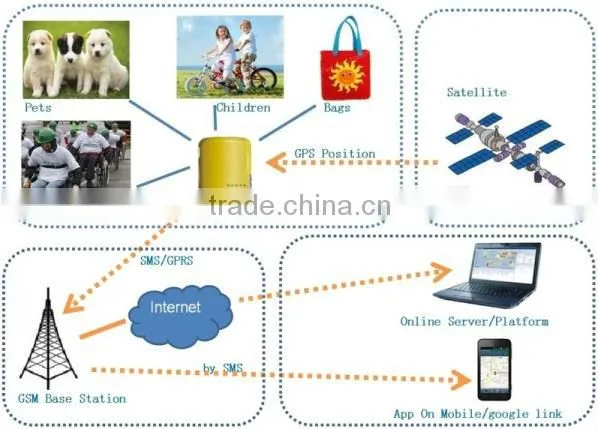

How it works?

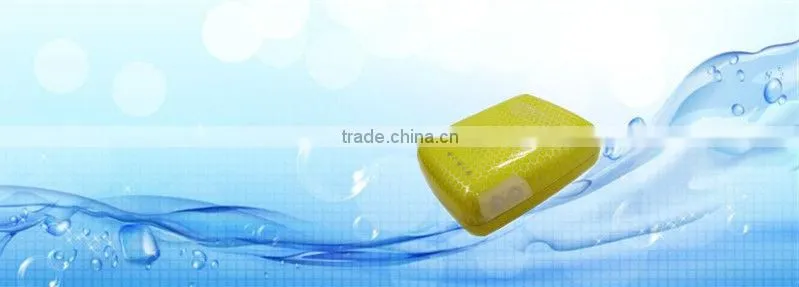

Waterproof

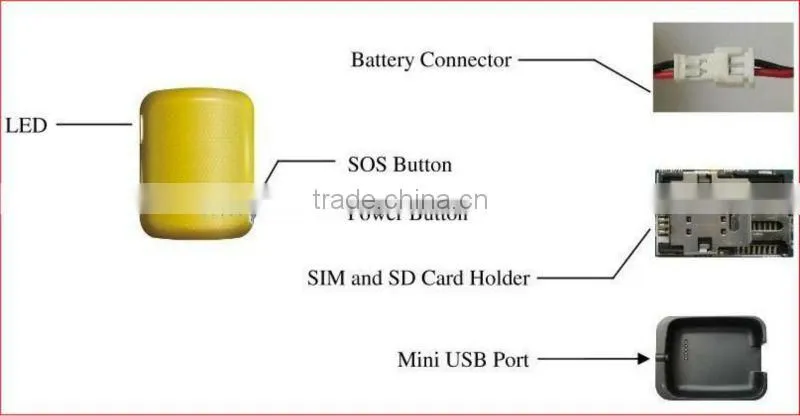

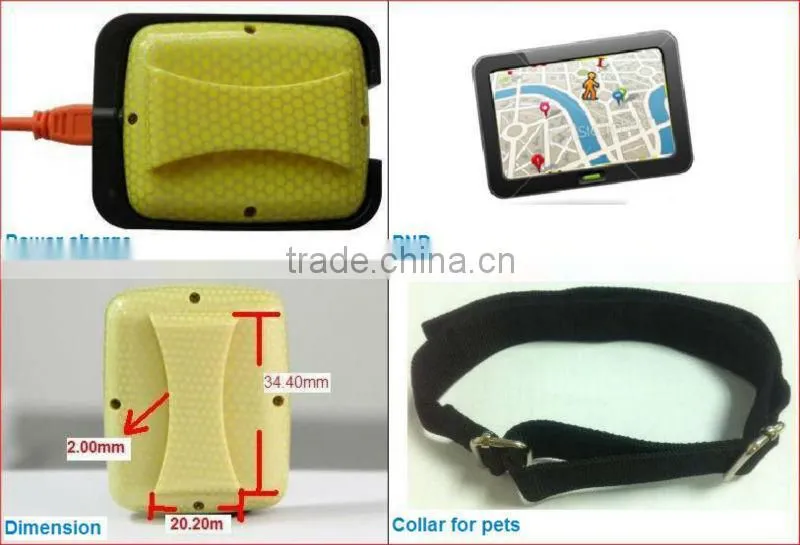

Function Parts and Interfaces

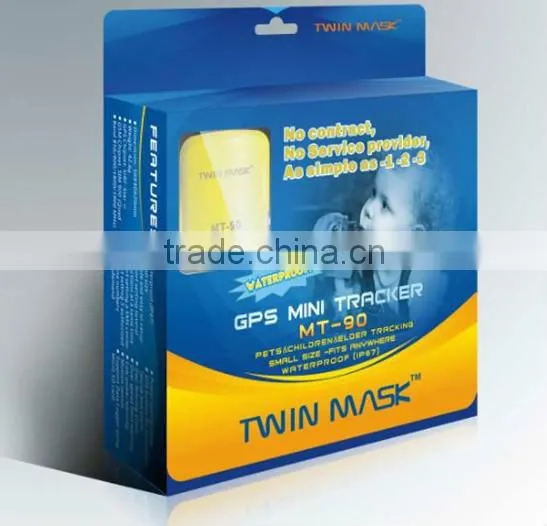

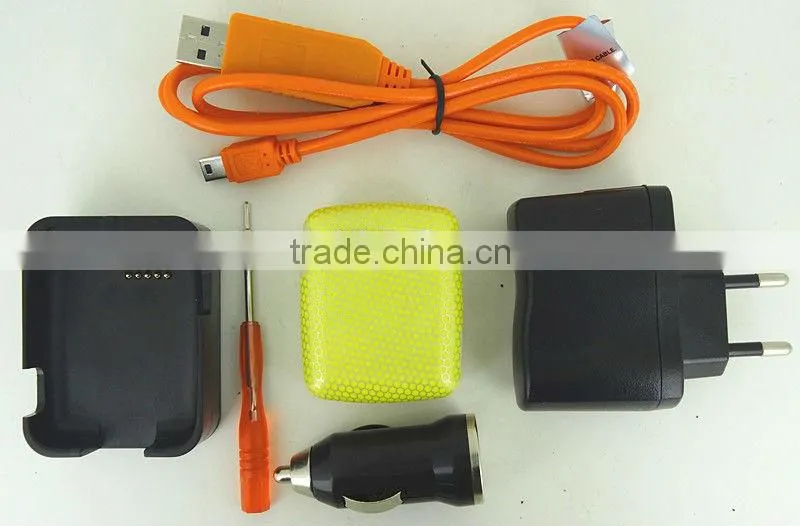

Whole Package
What is GPS Tracking System?
1.Track real-time GPS tracker location in online webserver
2.Trace real-time GPS tracker location in App on iphone/android platform mobile phone
3.Get GPS tracker real-time locaton by SMS with google link in mobile phone

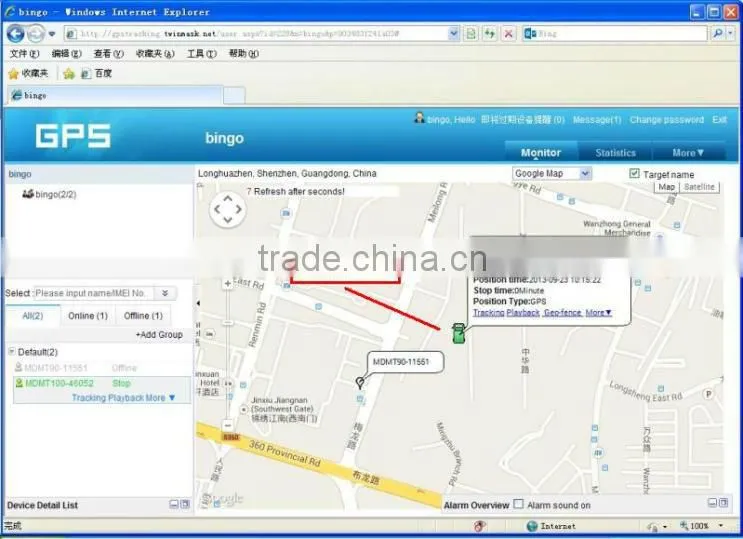

Online Webserver Real-time Tracking

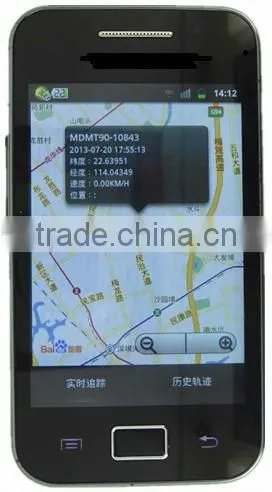

App on Mobile Real-time Tracking

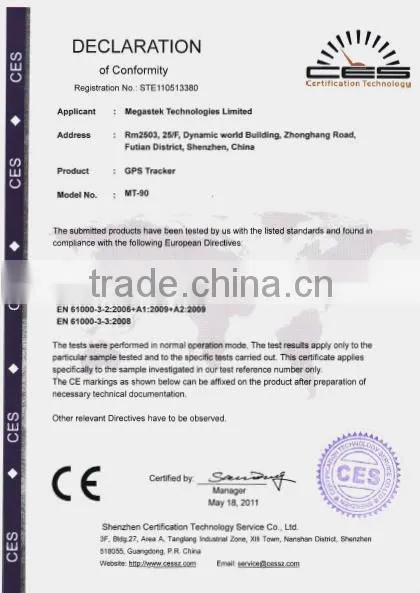

Certificate
What is Our Service?
1.Reply inquiries in 24 hours
2.Provide complete GPS tracking solutions for customers
3.OEM/ODM
4.Online technical support
5.Warrant 1 year

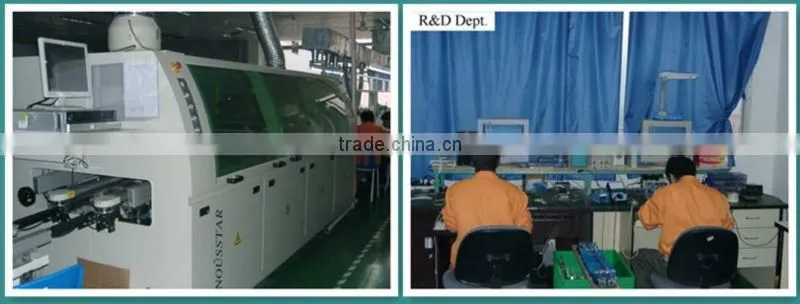

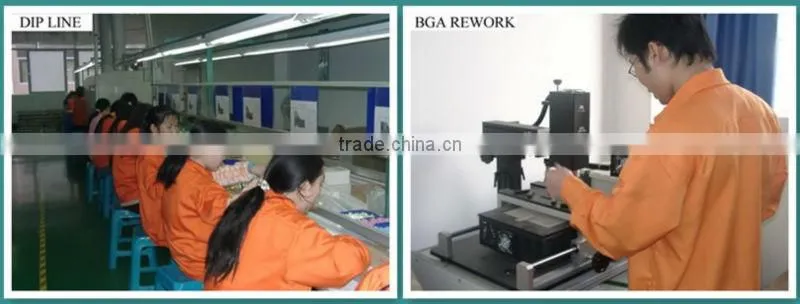

Our Factory
