Super Gps Tracking Chip Long Battery 15 Days Standby

Super Gps Tracking Chip Long Battery 15 Days Standby thumbnail-1
Super Gps Tracking Chip Long Battery 15 Days Standby photo-1
Negotiable MOQ: 100 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Gps Tracker
Use:
Hand Held
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Megastek Technologies Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Gps Tracker
Use Hand Held
Place of Origin Guangdong, China
Brand Name TWIN MASK
Model Number MT70
super gps tracking chip long batter 15 days standby




♣ Featurs:



1. GPS + LBS
2. GPS Chipset: Ublox 6M
3. GSM Chipset: Simcom800L    GSM 850/900/1800/1900 MHz
4. Support setting 3 authorized cell phone numbers
5. Track on Demand, time Interval,LOC request
6. Low power consumption – standby for 15 days.
7. SOS button for immediate rescue and alarm
8. Two-way Audio
9. 3G acceleration sensor

10. Geo-fencing Alarm
11.Over speed limit warning
12. Built in Speaker and Microphone
13. Motion Sensor
14. GPS Blind Area Alarm
15. Background voice surveillance
16. Low Battery warning



♣ Specification:





Items

Specification

Charging Voltage

DC 4.5-5.5V/1000mA (Mini USB)

Internal Battery

Rechargeable and replaceable 1000 mAh battery(3.7V),

Dimension

86mm X 44mm X 22mm

Weight

65g (with battery)

Operating Temperature

-20 ~ +55 °C

Humidity

5% to 95% Non-condensing

GSM Module

Quad Band GSM 850/900/1800/1900 MHz

GPS Chipset

Newest Ublox chipset

GPS Sensitivity

-159Db

GPS Frequency

L1, 1575.42 MHz

C/A Code

1.023 MHz chip rate

Channels

20 Channels

Position Accuracy

<10 M, 2D RMS

Velocity Accuracy

0.1 M/S

Time Accuracy

Satellite Time: 1 nano second

Update Time

Average 0.1 second

Hot Start up

Average 1 second

Warm Start up

Average 3 second

Cold Start up

Average 27 second

Max. Altitude

18,000m (Max. 60,000 ft)

Max. Speed

515 m/s (Max. 1000 knots).

Max. Acceleration

less than 4g

Position Drifting

20 m/sec

Operation time

Standby time 15 days in personal mode; 15 hours in vehicle mode.

LED

3 LEDs for showing states of power, GPS, GSM.

Button

2 buttons. 1 SOS, 1 battery check

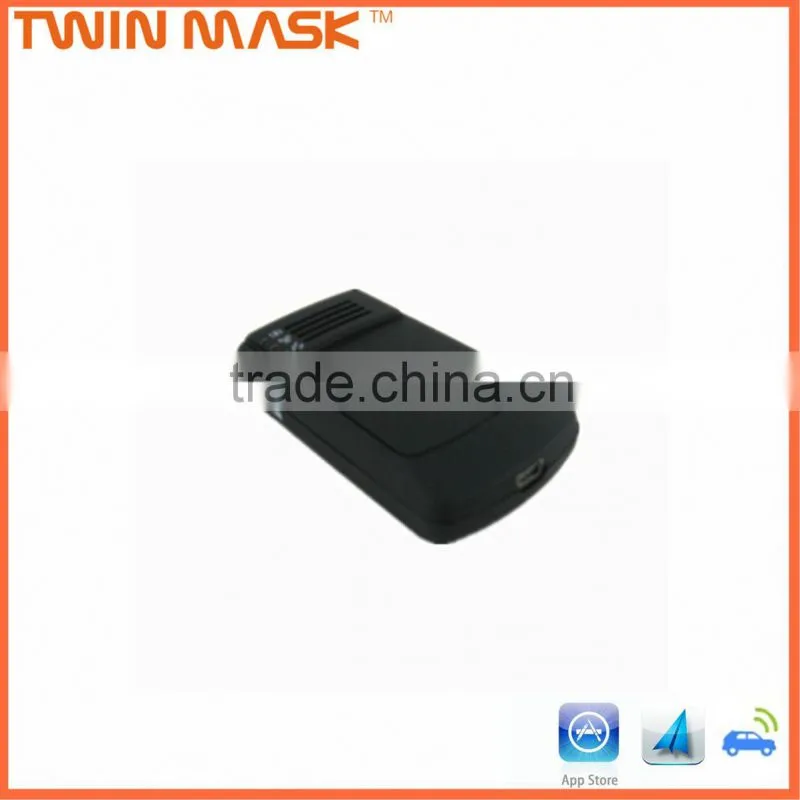

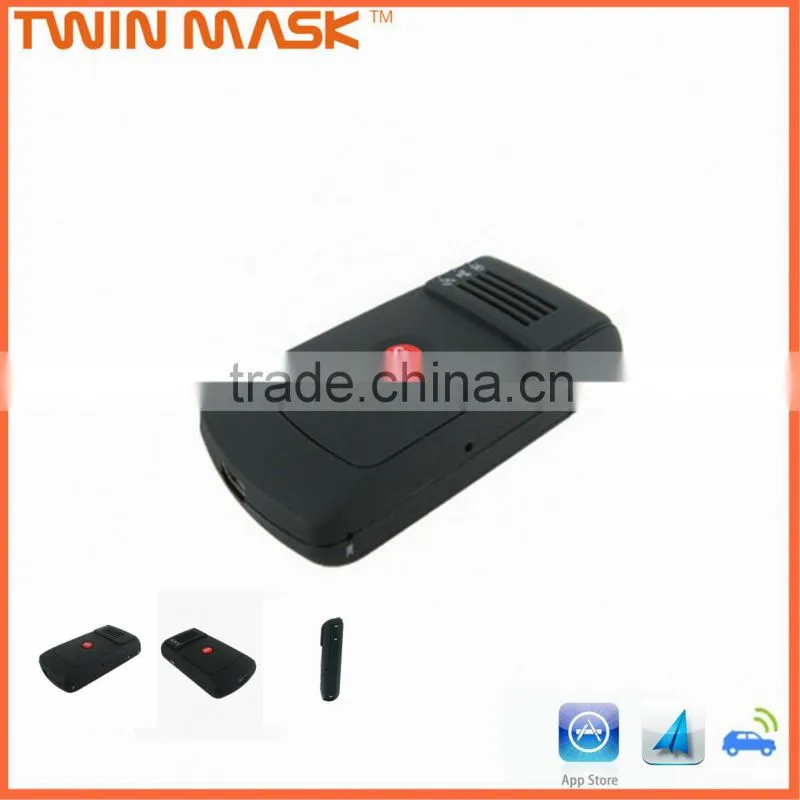

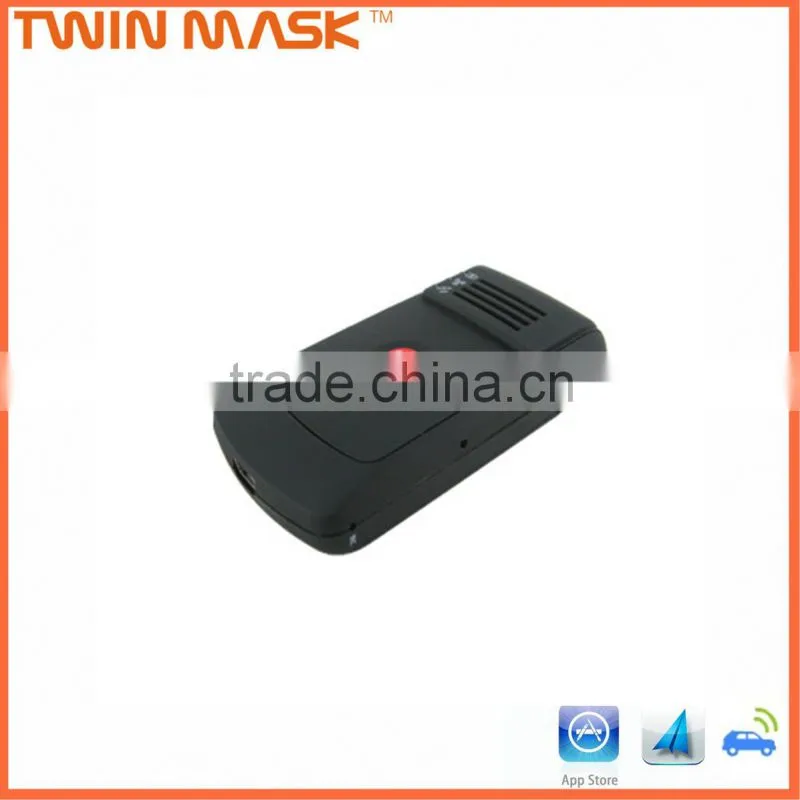

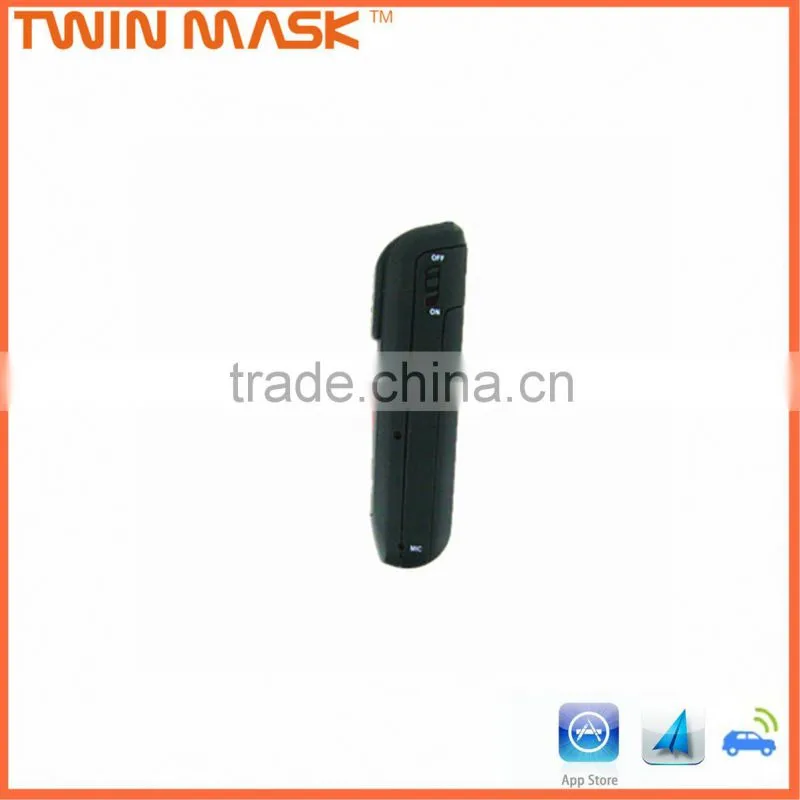

♣ Pictures:



 super gps tracking chip long battery 15 days standbysuper gps tracking chip long battery 15 days standbysuper gps tracking chip long battery 15 days standbysuper gps tracking chip long battery 15 days standby
