Product Details
Place of Origin: | Jiangxi, China | Brand Name: | donglan | Model Number: | audio |
Type: | Other | Application: | Other | Conductor Material: | Copper |
Conductor Type: | Stranded | Insulation Material: | PVC |
Product Description

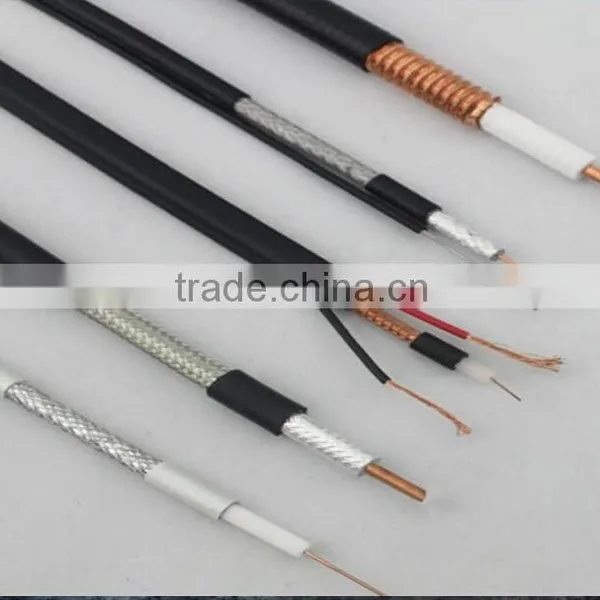

telecommunications cctv cable full copper rg59 coaxial cable 2dc power insulation foam china supplier
RG59 is used for Security systems, Surveillance cameras, Satellite, Cable TV and Antenna installations. It runs both video and power in just one cable and it is HD ready.
Features:
- 20 AWG Center Conductor, 95% braid, shielded 100% with PVC jacket
- Improved quality for video with heavy duty cable
- Greater signal reliability
- Indoor and outdoor use meeting all weather conditions
- Cable can be cut to exact length
- Works with twist-on, crimp-on, and compression BNC connectors
- Heavily shielded to minimize interference
- Power 18AWG Gauge
- Running "FT" count printed on cable makes measuring easy
- HD ready
(1) RG59 coaxial cable for CCTV camera
Inner conductor: 0.584 /0.81mm Bare Copper
Dielectric: 3.7mm Solid /Faom PE
Shield: Bare Copper or CCA wire braid 85%~95%
Outer jacket: 6.1mm PVC

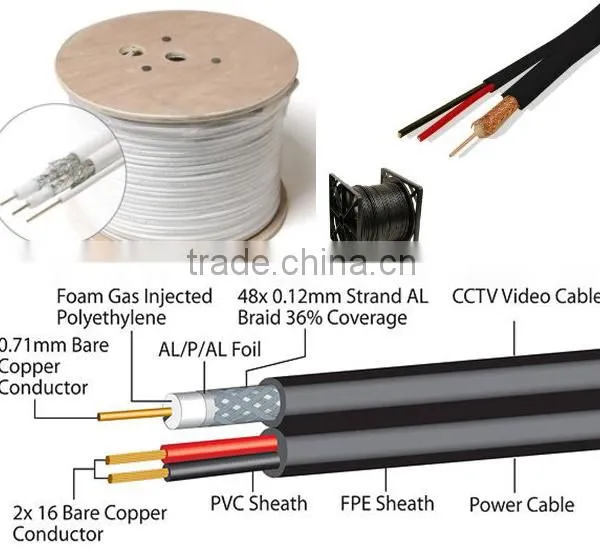

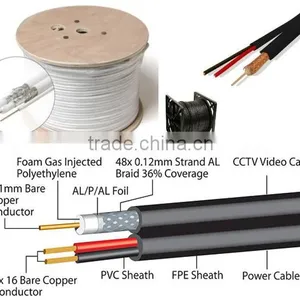

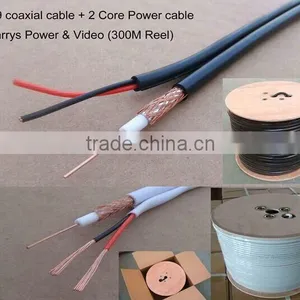

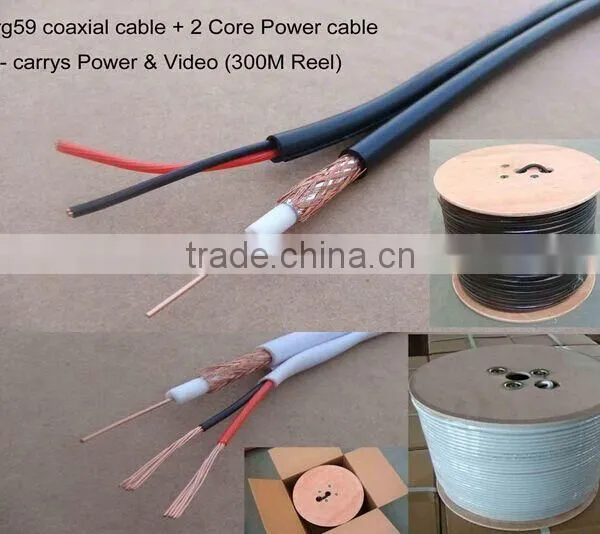

(2) RG59+ 2 Power combined cable for CCTV camera
RG59 coaxial cable specs:
Inner conductor: 0.584 /0.81mm Bare Copper
Dielectric: 3.7mm Solid /Faom PE
Shield: Bare Copper or CCA wire braid 85%~95%
Outer jacket: 6.1mm PVC
2 Power cable secs:
Conductor: Bare Copper 0.5mm2, 0.75mm2, 1.0mm2, 18AWG
(3) Pre-made RG59 with BNC+DC connector cable
Cable: specs are same as above items
Connector:BNC (Male--Male)
DC (Male--Female)
Length: 5m, 10m, 20m, 30m, 40m, 50m, 25FT, 50FT, 75FT, 100FT

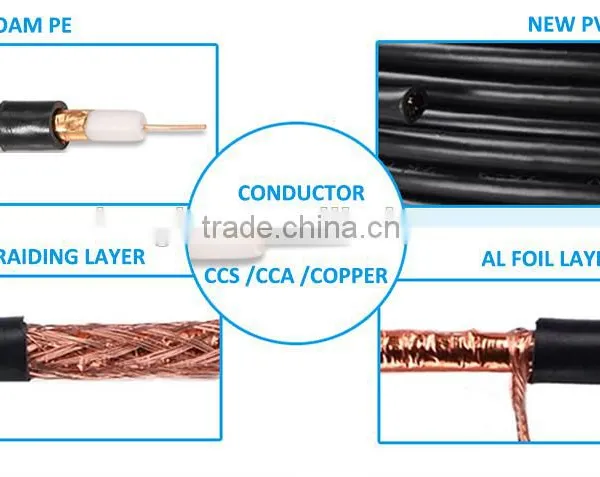

Basic construction
Conductor | Material | Full Copper/ CCS |
Nom. Dia. | 0.643mm/ 0.81mm | |
Dielectric | Material | Solid PE/ Foamed PE |
Nom. Dia | 3.66mm | |
Shielding+ Braiding | Material | AL Foil+ CCA/ AL wires |
Coverage | 36%-95% | |
Jacket | Material | PVC/ PE |
Nom. Dia. | 6.0mm± 0.1mm | |
Power Wires | Material | Full Copper/ CCA |
Size | 0.5mm²/ 0.75mm²/ 0.8mm² | |
Nom. Dia. | 4.5mm± 0.1mm |
Attenuation | [@68o F. (20o C.)] | ||
Frequency (MHz) | Max. (dB/100 ft.) | Frequency (MHz) | Max. (dB/100 ft.) |
1 | 0.30 | 400 | 6.01 |
10 | 0.86 | 700 | 8.47 |
50 | 1.91 | 900 | 9.82 |
100 | 2.78 | 1000 | 10.47 |
200 | 4.06 |
|
|
