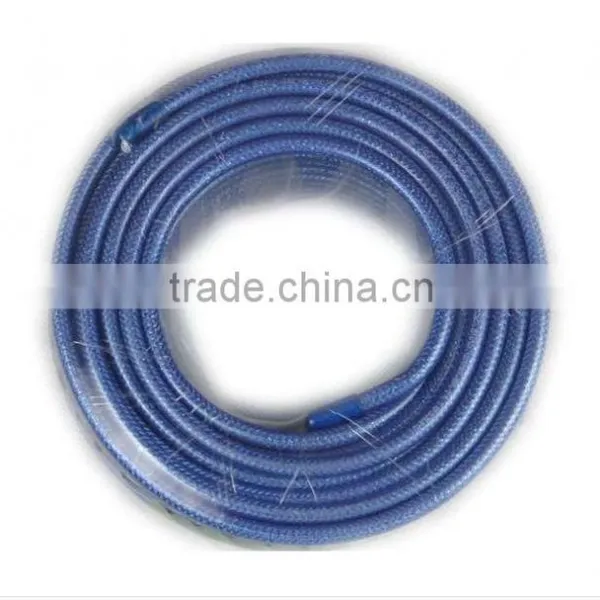

Help CenterHigh Quality Semi Finished Coaxial Cable Rg59 Rg11 75 Ohm TV RG6 for CCTV/MATV/CATV Coaxial Cable 75 OHM COAXIAL CATV CABLE RG6
Related Products
-
UL Listed Low Loss TV Cable Tri Shield RG6 Coaxial Cable /coaxial Cable Rg58 Rg59 Rg6 Rg11 Rg213US$ 2.00 - 2.00MOQ: 1000 Pieces -
OEM TV Cable / Closed Line / RF Cable / RF Signal Line , Length: 1.5mUS$ 2.00 - 2.00MOQ: 1000 Pieces
-
CT100 EQ Dual Twin Shotgun Digital TV Aerial Satellite Cables CoaxialUS$ 2.00 - 2.00MOQ: 1000 Pieces
-
Copper Speaker Audio Line Cable Lotus One Point Two Audio Cable to Connect the TV Audio Computer Phone Line 1.5 m -20 mUS$ 2.00 - 2.00MOQ: 1000 Pieces
-
NEW RF Coax Cable Assembly IEC DVB-T TV PAL Male to SMA Male RG316 CABLEUS$ 2.00 - 2.00MOQ: 1000 Pieces
1.The best cost-effective.
2.21 years Coaxial Cable experience.
3.ISO9001/CE/ROHS/UL .
4.OEM/ODM
5.RG6 Coaxial Cable
75 OHM COAXIAL CATV CABLE RG6
Specifications:
1) RG6 Coaxial Cable 75ohm dual shield(standard)
1.02mm BC Conductor + 4.57mm PE Foam + Al Foil + Braiding + 6.9mm PVC Jacket
2) RG6 Coaxial Cable 75ohm quad shielded
1.02mm BC Conductor + 4.57mm PE Foam + double-Al Foil + double-Braiding + 7.3mm PVC Jacket Cable Coaxial CCTV with CE certification
3) Customers’specifications are welcomed
Note:
1) Center conductor:BC,TC,CCA,CCS
2) Al-foil:Non-bonded Al-foil, bonded Al-foil,double bonded Al-foil,and double
non-bonded Al-foil are available
3) Braiding wire:Al,BC,,TC,CCA,CCS Available
4) Braiding wire diameter:0.10,0.11,0.12,0.13,0.14,0.15,0.16mm available
5) Braiding net:32,48,64,72,80,96,120,128,144 and more available
6) Braiding coverage:Between 30-97%
7) PVC jacket of flame retardant,UL Available
Characteristics:
SRL(dB) |
Nom.Impedance(ohm) |
Max.Attenuation.(Mhz dB/100m) |
|||
|
15 |
75 |
1 |
0.85 |
700 |
18.36 |
50 |
4.79 |
1000 |
21.61 |
||
100 |
6.72 |
1450 |
26.36 |
||
200 |
9.28 |
1800 |
28.98 |
||
400 |
13.28 |
2200 |
32.03 |
||
Application:
Coaxial Cable RG6 75ohm (For CCTV)
Used as a distribution cable for indoor CATV,CCTV systems and as a connection cable
for satellite systems where lower attenuation required.
