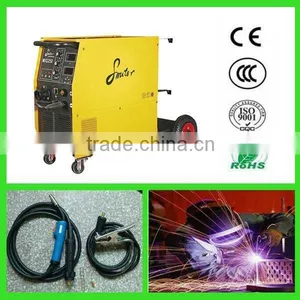

Help CenterHot Selling in India/Vietnam MIG/MAG MIG Welding Machine IGBT Type Automatic MIG250
Related Products
-
High Quality for European Market MIG/MAG Welding Machine IGBTUS$ 290 - 300MOQ: 10 Pieces -
DC Inverter MIG Welding Machine MIG250US$ 300 - 350MOQ: 10 Pieces
-
Hot Selling MIG250 IGBT Welder Welding Machine MIG/MAG/MMA AUTOMATIC WelderUS$ 290 - 300MOQ: 10 Pieces
-
Inverter MIG/MAG Welding Machine (MIG350) ChinaUS$ 580 - 620MOQ: 10 Pieces
-
Inverter Welder MIG 500 ChinaUS$ 855 - 865MOQ: 10 Pieces

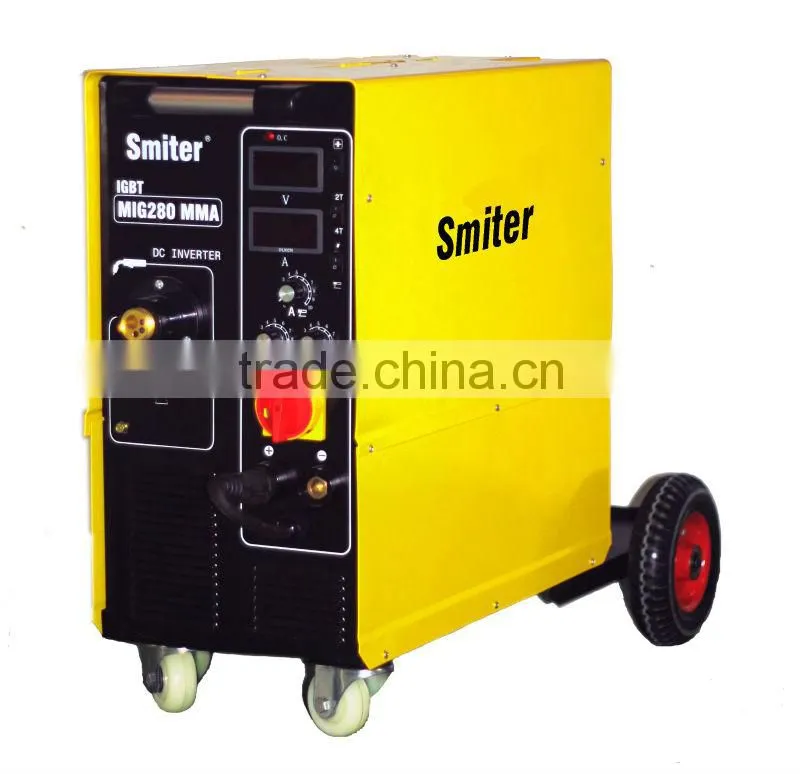

DC INVERTER MIG250
MIG280 IS MIG250,we produce according customer need,so put MIG280
A, Functions and Features
1. Adopt IGBT as power service, with unique control mode, high reliability.
2. High duty cycle, be able to carry out long-time welding
3. Closed circuit feedback, constant voltage output, fits for wide voltage range (±15)
4. Slow wire feeding during arc starting, removing the tip ball after welding enables easy arc-starting
5. Under the control of electronic reactor, stable welding arc, little spattering, deep welding penetration and nice welding bead.
6. Widely use in thin plate welding field such as automobile, motorcycle accessories, steel-wood furniture, high steel structure etc
B. Technical Parameters
Item Model |
MIG 200 |
MIG 250 |
MIG 350 |
MIG 500 |
Input power voltage/ Frequencey (V/HZ) |
AC220V±15%50/60HZ |
AC220V/380V±15%50/60HZ |
AC/380V±15%50/60HZ |
AC/380V±15%50/60HZ |
Rated input power capacity (KVA) |
6 |
9.2 |
14 |
24.6 |
Rated output current/voltage(A/V) |
200A/24V |
250A/ 26.5V |
350A/ 31.5V |
500A/ 39V |
Output current range (A) |
50-200 |
50-250 |
50-350 |
60-500 |
Duty cycle (%) |
60 |
60 |
60 |
60 |
No-load voltage (V) |
50±2 |
50±2 |
60±2 |
60±2 |
Feeding speed(M/min) |
2.5-16 |
2.5-16 |
1.5-16 |
1.5-16 |
Diameter of spool (mm) |
270 |
270 |
270 |
270 |
Post flow time(s) |
1±0.5 |
1±0.5 |
1±0.5 |
1±0.5 |
Type of wire feeder |
inside |
inside |
seperate |
seperate |
Welding thickness( mm) |
Above 0.8 |
Above 0.8 |
Above 1.0 |
Above 1.0 |
Diameter of rod (mm) |
0.8-1.0 |
0.8-1.0 |
1.0-1.2 |
1.0-1.2-1.6 |
Size (mm) |
490×265×420 |
500×275×430 |
570×285×470 |
610×335×630 |
Weight (kg) |
25 |
26.5 |
32 |
45 |
Efficiency (%) |
85 |
85 |
85 |
85 |
Power factor (COSφ) |
0.93 |
0.93 |
0.93 |
0.93 |
Insulation class |
F |
F |
F |
F |
Protection class |
IP23 |
IP23 |
IP23 |
IP23 |
C. Standard Accessories
D.Supply
1. OEM and ODM sevice offered.
2. One Year Warranty.
3. Technical Support.
4. CE,CCC and ISO9001:2000.
E. Strict Quality Control:
1.Our products are strictly tested 100% before delivery, CCC,CE and ISO9001:2000 got approved. 2.our products are able to meet or exceed some of the industry's most rigid standards. 3.We can ensure that you will be satisfied with both performance and durability.
F. After-sale Service:
1. 1.5% Spare Parts is available for Repairing and Maintaining duirng machines' selling.
2. Our Technician or engineer would be appointed to asist you settle down the problem you can solve.
3.The professional Vedio can be available for training and repairing.
G.Company Background.
H. Company Warehouse.
I. International Fairs:
1. Yongkang Hardware Fair
2. Canton Fair
3. Essen Fair
J. Container Loading.
K CONTACT US
