Inverter MIG/MAG welding machine (MIG350) china
- 6000 Piece / Pieces per Month
- Ningbo or Shanghai
- T/T Credit Card
- 2021 New Good Industrial-Grade High Quality Welding Machine, Energy Saving Small Portable PCB Strong Power Electric Welders
- Wholesale Miller Maxstar 210DX DC Tig Welder (110/415V)
- Wholesale Jasic EVO TIG 200P AC/DC PFC Water Cooled Inverter Welder
- Wholesale Miller XMT 350 Multi-Process Air Cooled Mig/Mma
- Wholesale Miller MigMatic 260i Synergic MIG Welder Compact 415V
- Wholesale Kemppi Minarc Evo 180 ARC Welder
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | Smiter |
Model Number: | MIG350 | Wire Feeding Speed: | 1.5-16 | Dimensions: | 570*285*470mm |
Weight: | 32KG | Usage: | Widely use in thin plate welding field such as automobile, motorcycl | Voltage: | 380V |
Power(W): | 14KW | Certification: | CE, CCC, ROHS | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

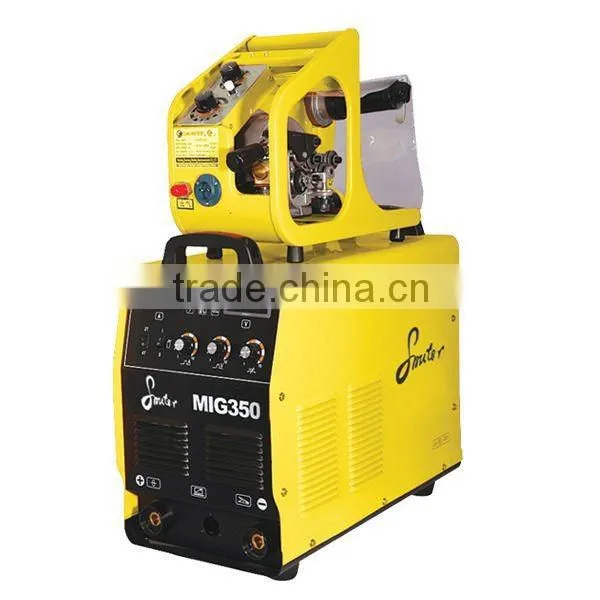

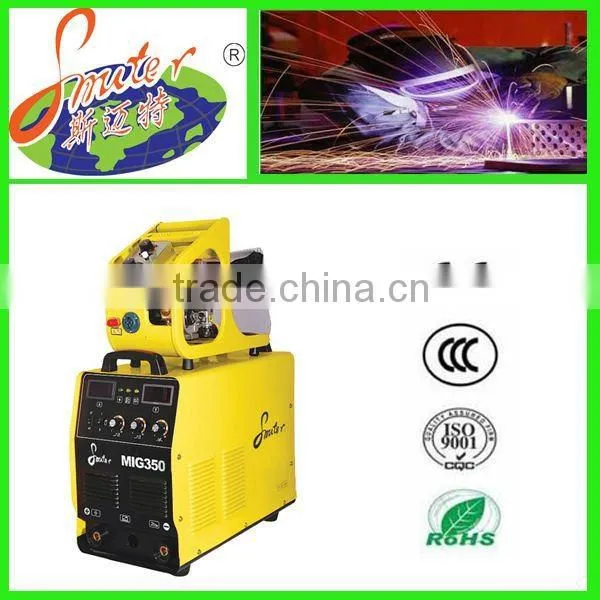

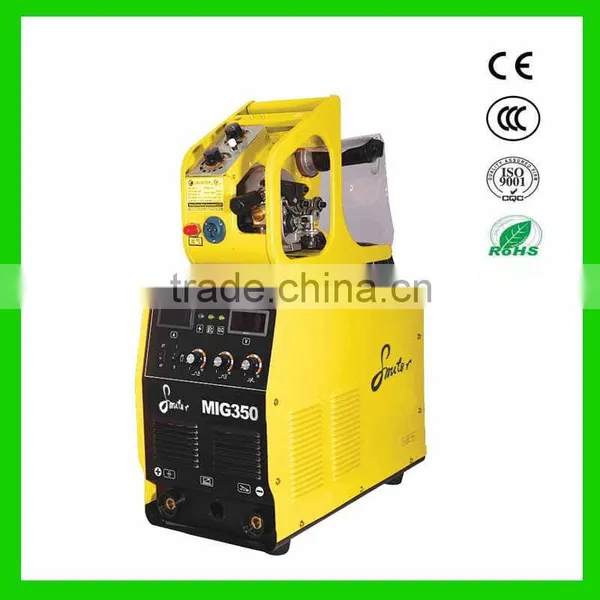

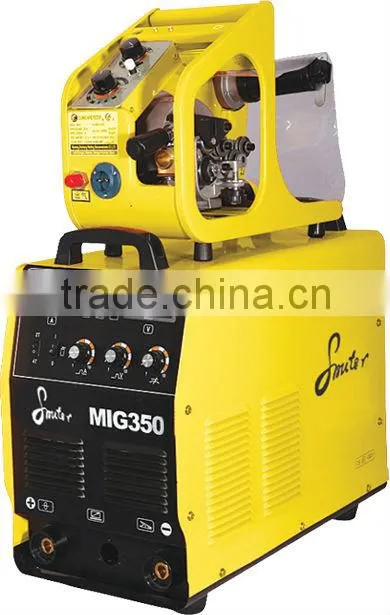

Inverter MIG/MAG welding machine (MIG350)
A, Functions and Features
1. Adopt IGBT as power service, with unique control mode, high reliability.
2. High duty cycle, be able to carry out long-time welding
3. Closed circuit feedback, constant voltage output, fits for wide voltage range (±15)
4. Slow wire feeding during arc starting, removing the tip ball after welding enables easy arc-starting
5. Under the control of electronic reactor, stable welding arc, little spattering, deep welding penetration and nice welding bead.
6. Widely use in thin plate welding field such as automobile, motorcycle accessories, steel-wood furniture, high steel structure etc
B. Technical Parameters
Item Model | MIG200 | MIG250 | MIG350 | MIG500 |
Input power voltage/ Frequencey (V/HZ) | AC220V±15%50/60HZ | AC220V/380V±15%50/60HZ | AC/380V±15%50/60HZ | AC/380V±15%50/60HZ |
Rated input power capacity (KVA) | 6 | 9.2 | 14 | 24.6 |
Rated output current/voltage(A/V) | 200A/24V | 250A/ 26.5V | 350A/ 31.5V | 500A/ 39V |
Output current range (A) | 50-200 | 50-250 | 50-350 | 60-500 |
Duty cycle (%) | 60 | 60 | 60 | 60 |
No-load voltage (V) | 50±2 | 50±2 | 60±2 | 60±2 |
Feeding speed(M/min) | 2.5-16 | 2.5-16 | 1.5-16 | 1.5-16 |
Diameter of spool (mm) | 270 | 270 | 270 | 270 |
Post flow time(s) | 1±0.5 | 1±0.5 | 1±0.5 | 1±0.5 |
Type of wire feeder | inside | inside | seperate | seperate |
Welding thickness( mm) | Above 0.8 | Above 0.8 | Above 1.0 | Above 1.0 |
Diameter of rod (mm) | 0.8-1.0 | 0.8-1.0 | 1.0-1.2 | 1.0-1.2-1.6 |
Size (mm) | 490×265×420 | 500×275×430 | 570×285×470 | 610×335×630 |
Weight (kg) | 25 | 26.5 | 32 | 45 |
Efficiency (%) | 85 | 85 | 85 | 85 |
Power factor (COSφ) | 0.93 | 0.93 | 0.93 | 0.93 |
Insulation class | F | F | F | F |
Protection class | IP23 | IP23 | IP23 | IP23 |
C. Accessories
D. Supply
1. OEM and ODMsevice offered, Machine Color
2. One Year Warranty.
3. Technical Support and freee spare parts
4. CE and CCC certificate
E. Strict Quality Control:
Our products are strictly tested 100% before delivery, and approved by CE. And our products are able to meet or exceed some of the industry's most rigid standards. We can ensure you will be satisfied with both performance and durability
F. After-sale Service:
If you have any problem about using the machine, feel free to contact us!
G. Production Line:
