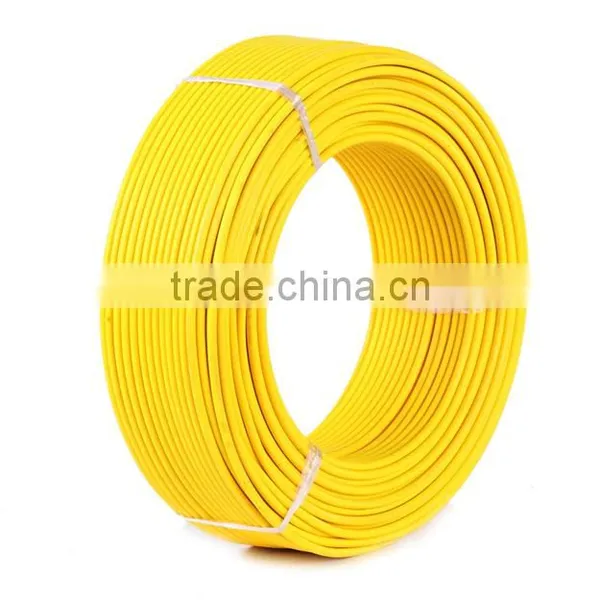

Colored China Copper Cable Products/pvc Wire Cable/single Core Electric Wire
US$ 2.00 - 2.00
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Brand Name:
donglan
Model Number:
RVV
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Single Conductor Stranded Copper Core Electric House WireUS$ 2.00 - 2.00MOQ: 1000 Pieces -
6mm2 Single Core Copper PVC Insulated Electric Wire for BuildingUS$ 2.00 - 2.00MOQ: 1000 Pieces
-
Aluminum/Copper Conductor 33kv Single Core Power CableUS$ 2.00 - 2.00MOQ: 1000 Pieces
-
High Quality Single Core PVC Insulated Electrical Wires,reel Electric WireUS$ 2.00 - 2.00MOQ: 1000 Pieces
-
BV 1.5mm to 25mm Single Copper Pvc Electric Wire and CableUS$ 2.00 - 2.00MOQ: 1000 Pieces
Place of Origin
Jiangxi, China
Brand Name
donglan
Model Number
RVV
Type
Other
Application
Other
Conductor Material
Copper
Conductor Type
Stranded
Insulation Material
PVC
1 Main application
This porduct is suitable for linking the household electrical appliance,small electric tools,Instrument and power lighting devices with the rated voltage equal or less than 450/750V AC.The operation temperature of the wire is 90℃ for BV-90 and RV-90,BV-105 modle not more than 105℃,The other is 90℃.Installation temperature not lower than 0℃. standard: IEC60227 or BS ,EN,AS 25mm2, 60227 IEC,PVC Coated electric copper wire /solid conductor Housing use wire/Electric wire.
Specification : BV & BVR Electric wire technical data.
| Model | Rated Voltage | Normal area (mm) |
Overall diameter (mm) | Weight (KG) | Conductor Resistance rate Not more than at 20 centigrade (Ω/km) |
Wire core structure Cores/Diameters (mm) |
| BV | 300/500V | 0.5 | 2.4 | 8.5 | 36.0 | 1/0.80 |
| BV | 300/500V | 0.75(A) | 2.6 | 11.1 | 24.5 | 1/0.97 |
| BV | 300/500V | 0.75(B) | 2.8 | 12.0 | 24.5 | 7/0.37 |
| BV | 300/500V | 1.0(A) | 2.8 | 13.9 | 18.1 | 1/1.13 |
| BV | 300/500V | 1.0(B) | 3.0 | 15.0 | 18.1 | 7/0.43 |
| BV | 450/750V | 1.5(A) | 3.3 | 20.3 | 12.1 | 1/1.38 |
| BV | 450/750V | 1.5(B) | 3.5 | 21.6 | 12.1 | 7/0.52 |
| BV | 450/750V | 2.5(A) | 3.9 | 31.6 | 7.41 | 1/1.78 |
| BV | 450/750V | 2.5(B) | 4.2 | 34.8 | 7.41 | 7/0.68 |
| BV | 450/750V | 4(A) | 4.4 | 47.1 | 4.61 | 1/2.76 |
| BV | 450/750V | 4(B) | 4.8 | 50.3 | 4.61 | 7/1.04 |
| BV | 450/750V | 6(A) | 4.9 | 67.0 | 3.08 | 7/1.35 |
| BV | 450/750V | 6(B) | 5.4 | 71.2 | 3.08 | 7/1.70 |
| BV | 450/750V | 10 | 7.0 | 119 | 1.83 | 7/2.14 |
| BV | 450/750V | 16 | 8.0 | 179 | 1.15 | 7/2.52 |
| BV | 450/750V | 25 | 10 | 281 | 0.727 | 19/7.18 |
| BV | 450/750V | 35 | 11.5 | 381 | 0.524 | 19/2.14 |
| BVR | 450/750V | 2.5 | 4.2 | 34.7 | 7.41 | 19/0.41 |
| BVR | 450/750V | 4 | 4.8 | 51.4 | 4.61 | 19/0.52 |
| BVR | 450/750V | 6 | 5.6 | 73.6 | 3.08 | 19/0.64 |
| BVR | 450/750V | 10 | 7.6 | 129 | 1.83 | 49/0.52 |
| BVR | 450/750V | 16 | 8.8 | 186 | 1.15 | 49/0.64 |
| BVR | 450/750V | 25 | 11.0 | 306 | 0.727 | 98/0.58 |
| BVR | 450/750V | 35 | 12.5 | 403 | 0.524 | 133/0.8 |
| BVR | 450/750V | 50 | 14.5 | 553 | 0.387 | 133/0.68 |
| BVR | 450/750V | 70 | 16.5 | 764 | 0.268 | 189/0.68 |
| BVR | 450/750V |
