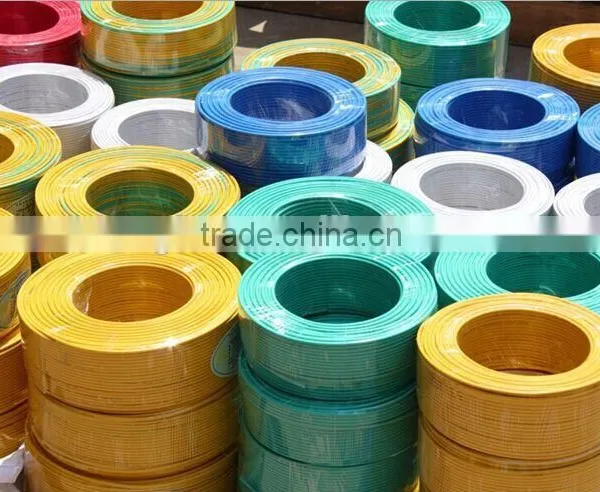

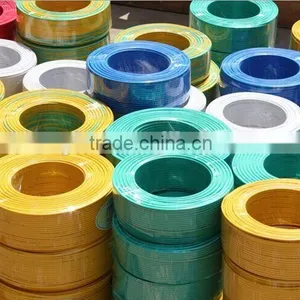

High Quality Single Core PVC Insulated electrical wires,reel electric wire
Our PVC insulated elecric wire can be produced and provided according to standard GB/T 5023,IEC 60227,BS 6004,JB 8734.It’s used of AC rated voltage 450V/750V(U0/U)and below for the following :lighting ,electrical installation,the connection between instrumentation and telecommunication equipment, partial PVC insulated electrical wire are used of 300/500V and below for the electrical equipments .
Model:
60227 IEC 01(BV) 450/750V 1.5-240
60227 IEC 02(RV) 450/750V 1.5-240
60227 IEC 05(BV) 300/500V 0.5-1
60227 IEC 06(RV) 300/500V 0.5-1
60227 IEC 07(BV-90) 300/500V 0.5-2.5
60227 IEC 08(RV-90) 300/500V 0.5-2.5
BV 300/500V 0.75-1
BLV 450/750V 2.5-240
BVR 450/750V 2.5-70
60227 IEC 52(RVV) 300/300V 0.5-0.75(2-3 Cores)
60227 IEC 53(RVV) 300/500V 0.75-2.5(2-5 Cores)
RVS 300/300V 0.5-0.75
Construction:
Conductor: Solid or stranded copper
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA)
Sheath: Polyvinyl chloride (PVC)
Nominal Section:
Area(mm2) :1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240
Detailed Description:
Type |
Rated Voltage |
Application |
Cores |
Nominal Cross-sectional areas |
||
GB |
IEC |
HAR Code |
|
|
|
|
BV, BLV |
60227 IEC 01JB/T 8734 |
H07V-U/R |
450/750V |
Single-core non-sheathed cable with rigid conductor for general purpose |
1 |
1.5-400 2.5-400 |
RV |
60227 IEC 02 |
H07V-K |
450/750V |
Single-core non-sheathed cable with flexible conductor for general purpose |
1 |
1.5-240 |
BV |
60227 IEC 05JB/T 8734 |
H05V-U H05V-R |
300/500V |
Single-core non-sheathed cable with solid/stranded conductor for internal wiring for a conductor of temperature 70℃ |
1 |
0.5-400 |
RV |
60227 IEC 02 |
H05V-K |
300/500V |
Single-core non-sheathed cable with flexible conductor for internal wiring for a conductor of temperature 70℃ |
1 |
0.5-400 |
BVV,BLVV |
60227 IEC 10 |
/ |
300/500V |
Light polyvinyl chloride sheathed round cable |
2-5 1 |
1.5-35 0.75-185 |
BVVB |
JBT 87/34 |
/ |
300/500V |
Light polyvinyl chloride sheathed flat cable |
2, 3 |
0.75-6 |
RVV |
60227 IEC 52 |
H03VV-F H03VVH2-F |
300/300V |
Light polyvinyl chloride sheathed flat cable |
2-16(round) 2(flat) |
0.5-6 |
RVV |
60227 IEC 53 |
H05VV-F H05VVH2-F |
300/500V |
Ordinary polyvinyl chloride sheathed cord |
2-16(round) |
0.5-6 |
2(flat) | ||||||
JB/T 8734 |
|
300/500V |
Ordinary polyvinyl chloride sheathed cord |
2(flat) Multi cores |
1.0-4 / |
|
RVVP |
JB/T 8734 |
|
300/300V |
Polyvinyl chloride insulated and sheathed cord with screen |
||
