Single Strand Copper Electrical Wire 3mm for House Wiring Cable

Single Strand Copper Electrical Wire 3mm for House Wiring Cable thumbnail-1
Single Strand Copper Electrical Wire 3mm for House Wiring Cable thumbnail-2
Single Strand Copper Electrical Wire 3mm for House Wiring Cable thumbnail-3
Single Strand Copper Electrical Wire 3mm for House Wiring Cable thumbnail-4
Single Strand Copper Electrical Wire 3mm for House Wiring Cable thumbnail-5
Single Strand Copper Electrical Wire 3mm for House Wiring Cable photo-1
Single Strand Copper Electrical Wire 3mm for House Wiring Cable photo-2
Single Strand Copper Electrical Wire 3mm for House Wiring Cable photo-3
Single Strand Copper Electrical Wire 3mm for House Wiring Cable photo-4

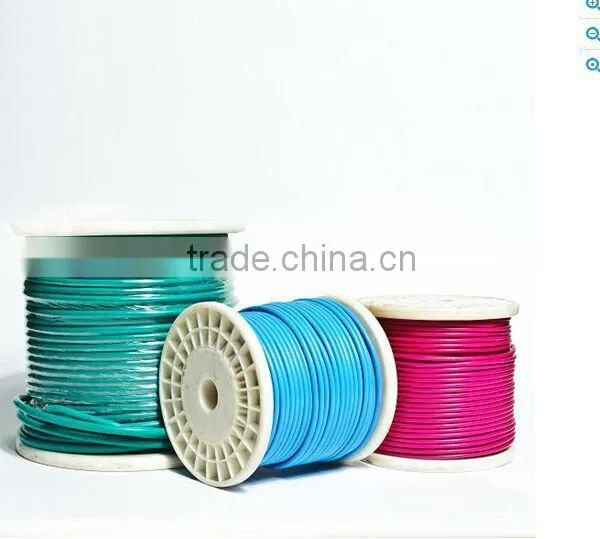

Single Strand Copper Electrical Wire 3mm for House Wiring Cable photo-5
US$ 2.00 - 2.00 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Brand Name:
donglan
Model Number:
RVV
Contact Supplier Request Quote Chat Now
Jiangxi Donglan Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangxi, China
Brand Name donglan
Model Number RVV
Type Other
Application Other
Conductor Material Copper
Conductor Type Stranded
Insulation Material PVC
Product Description



 Description of electrical power cable :

1. Twin core PVC insulated
2. AC 450/750V
3. 0.75-240mm²
4. rated temperature: 65~75°C

5. Design and manufacture according to the requirements of customers.



Application of electrical power cable :

The products is suitable for use in power installations, fixed wiring or flexible connections for electrical appliances like lighting, electronic equipment, instrument and communication equipment with rated voltage 450/750V, 300/350V, 300/300V



Packing of   electrical power cable :

shrink wrapping/rolls/ carton box / plastic spool /wood spool and any others per the customer's request



Delivery time of   electrical power cable :

20days more or less after confirm t/t payment



Advantage of our factory:

1. More than 10 years of producing many kinds of electric wires and cables

2. Conductor can be used pure copper wrie or CCA cheap conductor.

3. competitive price & good service.

4. OEM are welcome. We can also produce standard or non-standard wires and cables.



Detailed parameters

Model

Name

BV

Copper core PVC insulated electric wire

BLV

Aluminum core PVC insulated electric wire

BVR

Copper core PVC insulated flexible electric wire

BVV

Copper core PVC insulated PVC sheathed round electric wire

BVVB

Copper core PVC insulated PVC sheathed parallel electric wire

BLVVB

Aluminum core PVC insulated PVC sheath PARALLEL electric wire
Nominal
sectional area
mm2		 Conductor
No/Dia.
mm		 Nominal
Insulated thick
mm		 Max overall
Dia.
mm		 Condcutor
Resistance at
20		 Min insulated
resistance at
70MΩ/km		 Weight
Kg/km
Cu Al Cu Al
1.5 1/1.38 0.7 3.3 12.1 - 0.011 19.2 -
1.5 7/0.52 0.7 3.5 12.1 - 0.010 20.6 -
2.5 1/1.78 0.8 3.9 7.41 11.8 0.010 30.8 15.0
4 1/2.25 0.8 4.4 4.61 7.39 0.0085 45.5 21.0
6 1/2.76 0.8 4.9 3.08 4.91 0.0070 65.0 29.0
10 7/1.35 1.0 7.0 1.83 3.08 0.0065 110.0 52.0
16 7/1.70 1.0 8.0 1.15 1.91 0.0050 170.0 70.0
25 7/2.14 1.2 10.0 0.727 1.20 0.0050 270.0 110.0
35 7/2.52 1.2 11.5 0.524 0.868 0.0040 364.0 150.0
50 19/1.78 1.4 13.0 0.387 0.641 0.0045 500.0 200.0
70 19/2.14 1.4 15.0 0.268 0.443 0.0035 688.0 269.0
95 19/2.52 1.6 17.5 0.193 0.320 0.0035 953.0 360.0
120 37/2.03 1.6 19.0 0.153 0.253 0.0032 1168.0 449.0
150 37/2.25 1.8 21.0 0.124 0.206 0.0032 1466.0 551.0
185 37/2.52 2.0 32.5 0.099 0.164 0.0032 1808.0 668.0

Flexible wire

Nominal
sectional area
mm2 		Conductor
No/Dia.
mm		 Nominal
Insulated thick
mm		 Max overall
Dia.
mm		 Condcutor
Resistance at
20		 Min insulated
resistance at
70MΩ/km		 Weight
Kg/km
2.5 9/0.41 0.8 4.2 7.41 0.011 33.0
4 19/0.52 0.8 4.8 4.61 0.009 48.0
6 19/0.64 0.8 5.6 3.08 0.0084 68.0
10 49/0.52 1.0 7.6 1.83 0.0072 115.0
16 49/0.64 1.0 8.8 1.15 0.0062 176.0
25 98/0.58 1.2 11.0 0.727 0.0058 272.0
35 133/0.58 1.2 12.5 0.524 0.0052 384.0
50 133/0.68 1.4 16.5 0.387 0.0051 510.0
70 189/0.68 1.4 16.5 0.268 0.0045 714.0
95 259/0.68 1. 19.5 0.139 0.0035 965.0
120 259/0.76 1.8 22.0 0.153 0.0032 1210.0
150 259/0.85 1.8 25.0 0.124 0.0032 1510.0
