Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Competitive Price Single Core Electric Wire and Cable 16mm

Competitive Price Single Core Electric Wire and Cable 16mm

Name: Competitive Price Single Core Electric Wire and Cable 16mm
Brand: donglan
SKU: 115564295

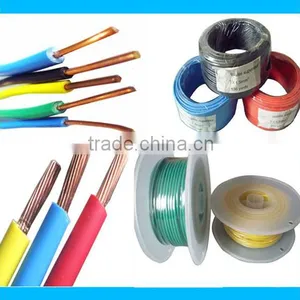

Competitive Price Single Core Electric Wire and Cable 16mm thumbnail-1

Competitive Price Single Core Electric Wire and Cable 16mm thumbnail-2

Competitive Price Single Core Electric Wire and Cable 16mm thumbnail-3

Competitive Price Single Core Electric Wire and Cable 16mm thumbnail-4

Competitive Price Single Core Electric Wire and Cable 16mm thumbnail-5

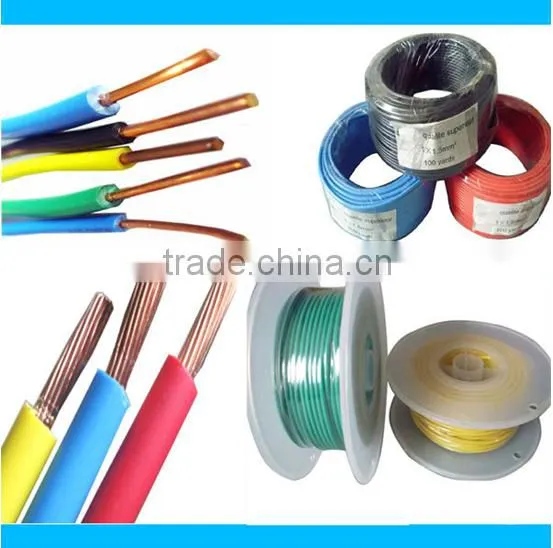

Competitive Price Single Core Electric Wire and Cable 16mm photo-1

Competitive Price Single Core Electric Wire and Cable 16mm photo-2

Competitive Price Single Core Electric Wire and Cable 16mm photo-3

Competitive Price Single Core Electric Wire and Cable 16mm photo-4

Competitive Price Single Core Electric Wire and Cable 16mm photo-5

US$ 2.00 - 2.00 MOQ: 1000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Jiangxi, China

Brand Name:

donglan

Model Number:

audio

Contact Supplier Request Quote Chat Now

Jiangxi Donglan Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangxi, China

Brand Name donglan

Model Number audio

Type Other

Application Other

Conductor Material Copper

Conductor Type Stranded

Insulation Material PVC

1.Attribute description

1). Rated voltage 300V and 600V.

2). The long-time permissible temperature of cable: BV-105 below 105°C,and the other below 70°C.

3). Conductor maximum short circuit(not more than 5 seconds)temperature shall not be higher than 160°c.

4). The power cable is not limited by drop in level when being laid, and the ambient temperature shall not be lower than 0°c.
5). The bend radius: the external diameter of cable <25mm, and the bend radius is above 4 times of the external diameter of

cable. And the other is above 6 times of the external diameter of cable.

6). Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame.
7). Light weight, perfect bending properties, installed and maintained easily and conveniently.

8). Insulation material and color: PVC in red, black, blue or any color as required.

9). Type: Single or twin cables with different colors Provides OEM according to requests of customer.

2. Application

Building and housing wiring is the electrical wiring and associated devices such as switches, electrical equipment ,meters and light fittings used in building and housing or other structures. Electrical wiring uses insulated conductors.

Wiring safety codes vary by country, and the International Electrotechnical Commission (IEC) is attempting to standardise wiring amongst member countries. Wires and cables are rated by the circuit voltage, temperature and environmental conditions (moisture, sunlight, oil, chemicals) in which they can be used. Colour codes are used to distinguish line, neutral and ground (earth) wires.

3. Products Standard

1) GB 5023

2)IEC 60227

3)BS 6004

4. Electrical Wire Chart

Type	Name	Laying place and requirement	Long term working Temperature ⁰C
60227IEC01 05 BV BLV	Copper conductor PVC insulated wires Aluminum conductor PVC insulated wires	Fixed laid indoors Conduit etc.	70
60227IEC07 (BV-90)	Heat resistant copper conductor PVC insulated wire at 90 ⁰C	Mainly be laid at the places of high temperature environment and can be laid indoors ,conduits.	90
BVR	Copper conductor PVC insulated flexible wires	Be for laying permanent place where flexible required.	70
60227IEC10 (BVV) BVV	Copper conductor PVC insulated PVC sheathed round wires	Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground.	70
BLVV	Aluminum conductor PVC insulated PVC sheathed round wires
BVVB	Copper conductor PVC insulated PVC sheathed flat wires
BLVVB	Aluminum conductor PVC insulated PVC sheathed flat wires
60227IEC02(RV) 60227IEC06(RV)	Copper conductor PVC insulated flexible connector wire	Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required	70
60227IEC42(RVB)	Copper conductor PVC insulated flat flexible connector wire
RVS	Copper conductor PVC insulated flexible twisting connector wire
60227IEC52(RVV) 60227IEC53	Copper conductor PVC insulated PVC sheathed round flexible connector wire
60227IEC08 (RV-90)	Cu conductor heat resistant PVC insulated flexible connector wire at 90⁰C	Mainly used at the places where heat resistance is required	90

5. Specification Date

Nominal sectional area mm²	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20		Min insulated resistance at 70MΩ/km	Weight Kg/km
Nominal sectional area mm²	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Cu	Al	Min insulated resistance at 70MΩ/km	Cu	Al
1.5	1/1.38	0.7	3.3	12.1	-	0.011	19.2	-
1.5	7/0.52	0.7	3.5	12.1	-	0.010	20.6	-
2.5	1/1.78	0.8	3.9	7.41	11.8	0.010	30.8	15.0
4	1/2.25	0.8	4.4	4.61	7.39	0.0085	45.5	21.0
6	1/2.76	0.8	4.9	3.08	4.91	0.0070	65.0	29.0
10	7/1.35	1.0	7.0	1.83	3.08	0.0065	110.0	52.0
16	7/1.70	1.0	8.0	1.15	1.91	0.0050	170.0	70.0
25	7/2.14	1.2	10.0	0.727	1.20	0.0050	270.0	110.0
35	7/2.52	1.2	11.5	0.524	0.868	0.0040	364.0	150.0
50	19/1.78	1.4	13.0	0.387	0.641	0.0045	500.0	200.0
70	19/2.14	1.4	15.0	0.268	0.443	0.0035	688.0	269.0
95	19/2.52	1.6	17.5	0.193	0.320	0.0035	953.0	360.0
120	37/2.03	1.6	19.0	0.153	0.253	0.0032	1168.0	449.0
150	37/2.25	1.8	21.0	0.124	0.206	0.0032	1466.0	551.0
185	37/2.52	2.0	32.5	0.099	0.164	0.0032	1808.0	668.0

6. Technical sheet

Nominal sectional area mm²	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20	Min insulated resistance at 70MΩ/km	Weight Kg/km
2.5	9/0.41	0.8	4.2	7.41	0.011	33.0
4	19/0.52	0.8	4.8	4.61	0.009	48.0
6	19/0.64	0.8	5.6	3.08	0.0084	68.0
10	49/0.52	1.0	7.6	1.83	0.0072	115.0
16	49/0.64	1.0	8.8	1.15	0.0062	176.0
25	98/0.58	1.2	11.0	0.727	0.0058	272.0
35	133/0.58	1.2	12.5	0.524	0.0052	384.0
50	133/0.68	1.4	16.5	0.387	0.0051	510.0
70	189/0.68	1.4	16.5	0.268	0.0045	714.0
95	259/0.68	1.6	19.5	0.139	0.0035	965.0
120	259/0.76	1.8	22.0	0.153	0.0032	1210.0
150	259/0.85	1.8	25.0	0.124	0.0032	1510.0
