6.0mm RV Flex Single Wire Flexible Electric Wire

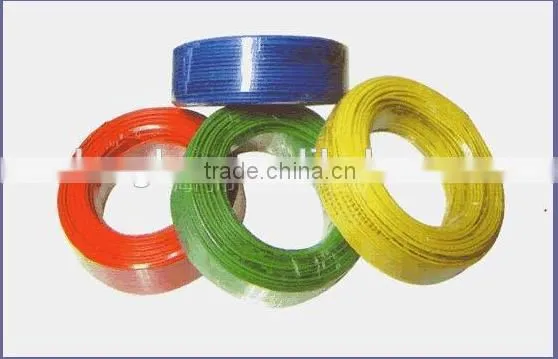

6.0mm RV Flex Single Wire Flexible Electric Wire photo-1
6.0mm RV Flex Single Wire Flexible Electric Wire photo-2

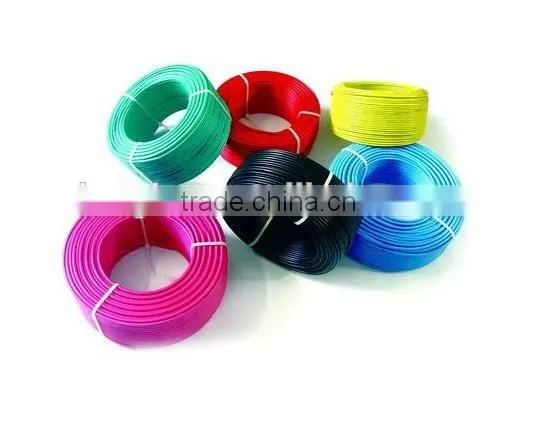

6.0mm RV Flex Single Wire Flexible Electric Wire photo-3
6.0mm RV Flex Single Wire Flexible Electric Wire photo-4

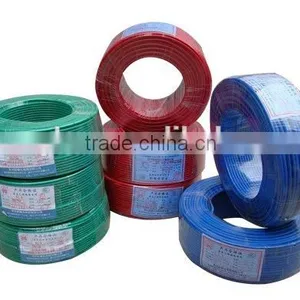

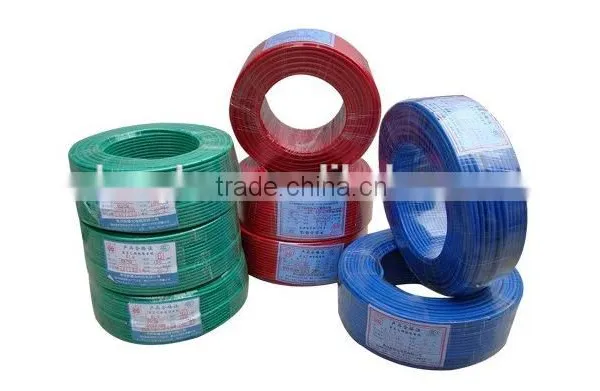

6.0mm RV Flex Single Wire Flexible Electric Wire photo-5
US$ 2.00 - 2.00 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Brand Name:
donglan
Model Number:
audio
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangxi, China
Brand Name donglan
Model Number audio
Type Other
Application Other
Conductor Material Copper
Conductor Type Stranded
Insulation Material PVC

6.0mm RV Flex Single Wire flexible electric wire

Cable Introduction:

Standard: BS6004 / IEC227

1)Standard

GB 5023.11997 , JB 8734.15-1998, Q/ZEL 02-2002, GB 5023.17-1997,  IEC60227

 2) Rated Voltages :

 300/500V    450/750V   (600/1000V also available)

 3) Application

The products is suitable for use in power installations, fixed wiring or flexibleconnections for electrical

 appliance like lighting,  electronic equipment,  instrument and communication equipment  with rated

voltage 450/750V or less!

Flexible wire

Nominal
sectional area
mm2
Conductor
No/Dia.
mm
Nominal
Insulated thick
mm
Max overall
Dia.
mm
Condcutor
Resistance at
20
Min insulated
resistance at
70MΩ/km
Weight
Kg/km
2.5 9/0.41 0.8 4.2 7.41 0.011 33.0
4 19/0.52 0.8 4.8 4.61 0.009 48.0
6 19/0.64 0.8 5.6 3.08 0.0084 68.0
10 49/0.52 1.0 7.6 1.83 0.0072 115.0
16 49/0.64 1.0 8.8 1.15 0.0062 176.0
25 98/0.58 1.2 11.0 0.727 0.0058 272.0
35 133/0.58 1.2 12.5 0.524 0.0052 384.0
50 133/0.68 1.4 16.5 0.387 0.0051 510.0
70 189/0.68 1.4 16.5 0.268 0.0045 714.0
95 259/0.68 1. 19.5 0.139 0.0035 965.0
120 259/0.76 1.8 22.0 0.153 0.0032 1210.0
150 259/0.85 1.8 25.0
