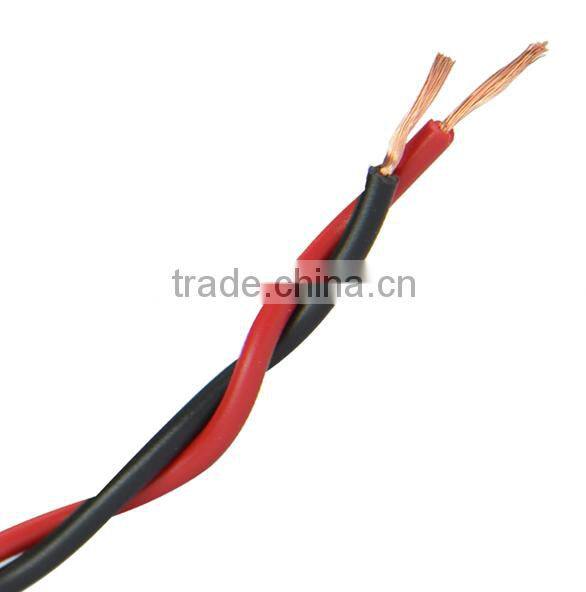

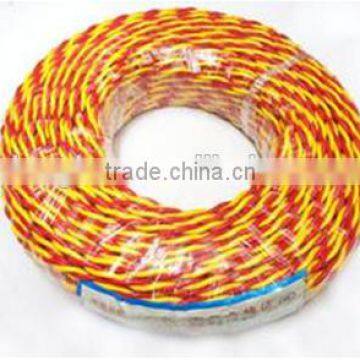

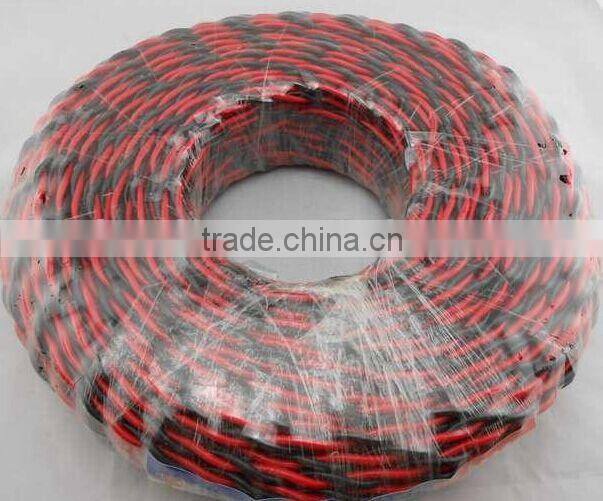

RVS High-end Flexible PVC Insulated Flexible Twisted Wire 1.0mm
US$ 2.00 - 2.00
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Brand Name:
donglan
Model Number:
audio
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
60227 IEC,PVC Insulation,Solid Conductor Twisted Electric WireUS$ 2.00 - 2.00MOQ: 1000 Pieces -
Twisted Pair Shield Electric Cable Wire, 0.75 SQ.mm Shield Cable WireUS$ 2.00 - 2.00MOQ: 1000 Pieces
-
RVS Hot Selling PVC Insualted Twisted Pair 1.5mm2 Electrical WireUS$ 2.00 - 2.00MOQ: 1000 Pieces
-
2.0mm2 PVC Insulated Twin Twisted Electrical Wire & CablesUS$ 2.00 - 2.00MOQ: 1000 Pieces
-
Heat Resistant Insulation for Electrical Wire Household Appliances PVC Insulation Flexible Twisted Wire With Good QualityUS$ 2.00 - 2.00MOQ: 1000 Pieces
Place of Origin
Jiangxi, China
Brand Name
donglan
Model Number
audio
Type
Other
Application
Other
Conductor Material
Copper
Conductor Type
Stranded
Insulation Material
PVC
1.Top cable manufacturer with 14 branch companies.
2.Export goods to 50 countries.
3.Guarantee 30 years service life.
4. Best quality with a fair price.
QUICK INFORMATION
| Conductor | flexible copper |
| Insulation | PVC |
| Sheath | no outer sheath |
| core number | 2 |
| Rated voltage | under or up to 300/300V |
| sectional area(mm2) | 0.5~6mm2 |
| Color | red&black,yellow&red or customized |
| Package | plastic bag or wooden case |
PVC insulated flexible twisted electrical wire (RVS)
|
Normal area (mm2) |
Insulation thickness(mm) |
Max. diameter of single wire (mm) |
Max. average outer diameter, (mm) |
20°C,DC,resistance ≤Ω/km |
|
2x0.5 2x0.75 2x1.0 2x1.5 2x2.5 2x4 2x6 |
0.8 0.8 0.8 0.8 0.8 0.8 1.0 |
0.16 0.16 0.16 0.16 0.16 0.16 0.21 |
6.0 6.2 6.6 7.2 8.2 9.2 10.6 |
39.0 26.6 19.5 13.3 7.98 4.95 3.30 |
