Good Quality Aluminum Conductor Photovoltaic Cable (PV Cable) Hot Exporting

Good Quality Aluminum Conductor Photovoltaic Cable (PV Cable) Hot Exporting thumbnail-1
Good Quality Aluminum Conductor Photovoltaic Cable (PV Cable) Hot Exporting thumbnail-2
Good Quality Aluminum Conductor Photovoltaic Cable (PV Cable) Hot Exporting thumbnail-3
Good Quality Aluminum Conductor Photovoltaic Cable (PV Cable) Hot Exporting thumbnail-4
Good Quality Aluminum Conductor Photovoltaic Cable (PV Cable) Hot Exporting thumbnail-5
Good Quality Aluminum Conductor Photovoltaic Cable (PV Cable) Hot Exporting photo-1
Good Quality Aluminum Conductor Photovoltaic Cable (PV Cable) Hot Exporting photo-2
Good Quality Aluminum Conductor Photovoltaic Cable (PV Cable) Hot Exporting photo-3
Good Quality Aluminum Conductor Photovoltaic Cable (PV Cable) Hot Exporting photo-4
Good Quality Aluminum Conductor Photovoltaic Cable (PV Cable) Hot Exporting photo-5
US$ 2.00 - 2.00 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Brand Name:
donglan
Model Number:
audio
Contact Supplier Request Quote Chat Now
Jiangxi Donglan Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangxi, China
Brand Name donglan
Model Number audio
Type Other
Application Other
Conductor Material Copper
Conductor Type Stranded
Insulation Material PVC

Specifications

Cross-linked Polyethylene Insulated 2kv UL Type PV/RHH or RHH-2 or 600V USE-2 or c(UL)RWU90 1kv -40dg to 9dg Wet/10dg Dry

Photovoltaic(PV)Cable AL Conductor
Cross-linked Polyethylene Insulated 2kv UL Type PV/RHH or RHH-2 or 600V USE-2 or c(UL)RWU90 1kv -40°C to 90°C Wet/105°C Dry
Applications
Single conductor,sunlight-resistand,photovoltaic wire reted 90°C wet or 105 °C dry 2000V for interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Section 690.31(A)and other applicable parts of the National Eletrical Code (NEC),NFPA 70
Construction
Conductor:6 AWG thru 1000 kcmil compact aluminum ACM (8000series)
Insulation:Flame-retardant Cross-Linked Polyethylene (XLPE),black
Print:AWG 2000V PV WIRE OR RHH OR RHW-2 OR 600V USE-2(SIZE) AL ACM 90 °C WET OR 105°C DRY SUN RES(UL) -40°C VW-1 c(UL) RWU90 1000V DIR BUR MONTH/YEAR OF MFG SEQUENTIAL FOOTAGE MARK
Options:Colors available on request
Features
•Rated 90°C wet and 105 °C dry
•Deformation-resistant at high temperatures
•Excellent moisture resistance
•Excellent resistance to crush and compression cuts
•Resistant to most oils and chemicals
•UV/sunlight-resistant
•Meets cold bend test at -40°C
Compliances
•UL 4703 Type PV
•ICEA S-95-658/NEMA WC70
•UL 44 Type RHH or RHW-2
•UL 845 Type USE-2
•c(UL) RWU90 1KV
•UL 1581 VW-1
•IEEE 383 for sizes 1/0 AWG and larger
Packaging
Material cut to length and shipped on non-returnable wood reels
Item# Conductor Size (AWG/kcmil) Conductor Stranding Conductor Diameter(in) Insulation Thickness(in) Cable Diameter(in) Aluminum Weight/MFT(lb) Net Cable Weight/MFT(lb) Nominal DC Resistance (Ohms/MFT at 20°C)
PVA-2000-6 6 7 0.169 85 0.339 25 62 0.661
PVA-2000-4 4 7 0.213 85 0.383 39 83 0.415
PVA-2000-2 2 7 0.268 85 0.438 63 114 0.216
PVA-2000-1 1 18 0.299 105 0.509 79 155 0.207
PVA-2000-1/0 1/0 18 0.336 105 0.546 99 183 0.164
PVA-2000-2/0 2/0 18 0.376 105 0.586 125 218 0.130
PVA-2000-3/0 3/0 18 0.423 105 0.633 158 260 0.103
PVA-2000-4/0 4/0 18 0.475 105 0.685 199 313 0.082
PVA-2000-250 250 35 0.520 120 0.760 235 376 0.069
PVA-2000-300 300 35 0.570 120 0.810 282 435 0.058
PVA-2000-350 350 35 0.616 120 0.856 329 494 0.050
PVA-2000-400 400 35 0.659 120 0.899 376 538 0.043
PVA-2000-500 500 35 0.736 120 0.976 471 649 0.035
PVA-2000-600 600 58 0.813 135 1.083 565 786 0.029
PVA-2000-700 700 58 0.877 135 1.147 659 895 0.025
PVA-2000-750 750 58 0.908 135 1.178 706 950 0.023
PVA-2000-900 900 58 0.999 135 1.269 847 1114 0.019
PVA-2000-1000 1000 58 1.060 135 1.330 941 1223 0.017

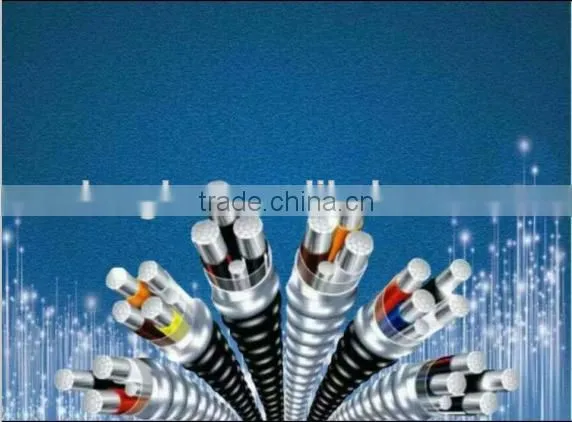

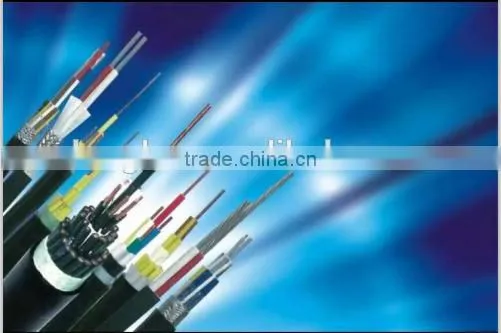

 Good quality Aluminum Conductor Photovoltaic Cable (PV cable) Hot ExportingGood quality Aluminum Conductor Photovoltaic Cable (PV cable) Hot Exporting
