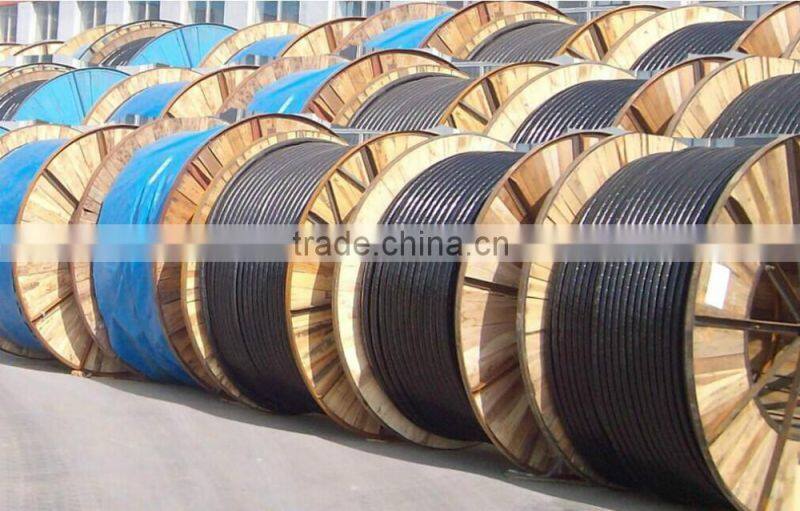

Flexible Copper/CCA Rubber Insulation Electric Welding Cable

Name: Flexible Copper/CCA Rubber Insulation Electric Welding Cable
Brand: donglan
SKU: 115558847
Availability: InStock

US$ 2.00 - 2.00 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Jiangxi, China

Brand Name:

donglan

Model Number:

audio

Jiangxi Donglan Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangxi, China

Brand Name donglan

Model Number audio

Type Other

Application Other

Conductor Material Copper

Conductor Type Stranded

Insulation Material PVC

450/750 Flexible Copper/CCA Rubber Insulation Electric Welding Cable

450/750 PVC insulation CCA welding cable
voltage AC 200V~DC 400V
Standards: IEC60245

Welding Cable

Detailed Product Description

1th. Service Conditions

This product is suitable for the welding machine whose voltage to the ground is not more than 200V and pulsating current value is 400V.

2th. Model, Names Main applications and Work In the Temperature

Model	Name	Main applications	Working temperature of core ≤⁰C
YH	Natural Rubber Sheath for Welding Cable	Always used indoor	65
YHF	Neoprene Rubber Sheath Welding Cable	Always used outdoor	65
YHF	Synthetic elastomer Sheath Welding Cable	Always used outdoor	65

3th. Standards: IEC60245

4th. Specifications, Size, Weight and Technical Data

Conductor Nominal Section (mm2)	Conductive Core	Thickness of Section Sheath (mm)	Average Outer Diameter (mm2)		20oC Conductor Resistance≤(Ω/km)	Reference Weight(kg/km)
Conductor Nominal Section (mm2)	Number/Diameter of Core(mm)	Thickness of Section Sheath (mm)	Min	Max	20oC Conductor Resistance≤(Ω/km)	YH	YHF
10	322/0.20	1.8	7.5	9.7	1.91	146	153.51
16	513/0.20	2.0	9.2	11.5	1.16	218.9	230.44
25	798/0.20	2.0	10.5	13.0	0.758	316.6	331.15
35	1121/0.20	2.0	11.5	14.5	0.536	426	439.87
50	1596/0.20	2.2	13.5	17.0	0.379	592.47	610.55
70	2214/0.20	2.4	15.0	19.5	0.268	790	817.52
95	2997/0.20	2.6	17.0	22.0	0.198	1066.17	1102.97
120	1702/0.30	2.8	19.0	24.0	0.161	1348.25	1392.55
150	2135/0.30	3.0	21.0	27.0	0.129	1678.5	1698.72
185	1443/0.40	3.2	22.0	29.0	0.106	1983.8	2020.74
