UTP/FTP/SFTP Lan Cable Pass Fluke Cable

Name: UTP/FTP/SFTP Lan Cable Pass Fluke Cable
Brand: donglan
SKU: 115555849
Availability: InStock

US$ 2.00 - 2.00 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Jiangxi, China

Brand Name:

donglan

Model Number:

audio

Jiangxi Donglan Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangxi, China

Brand Name donglan

Model Number audio

Type Other

Application Other

Conductor Material Copper

Conductor Type Stranded

Insulation Material PVC

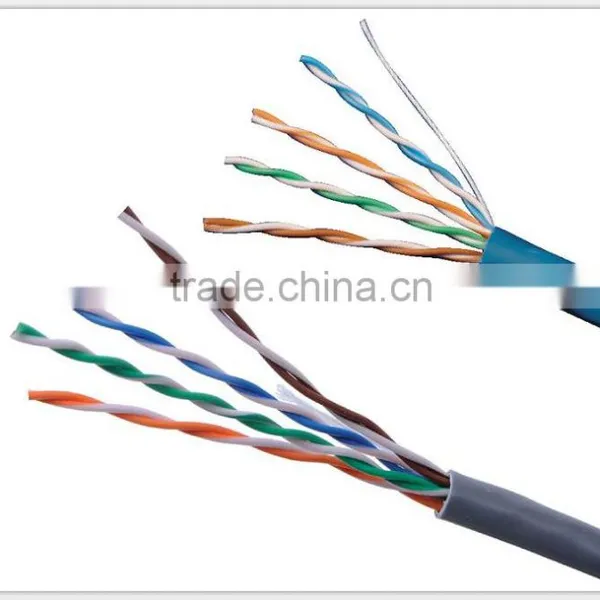

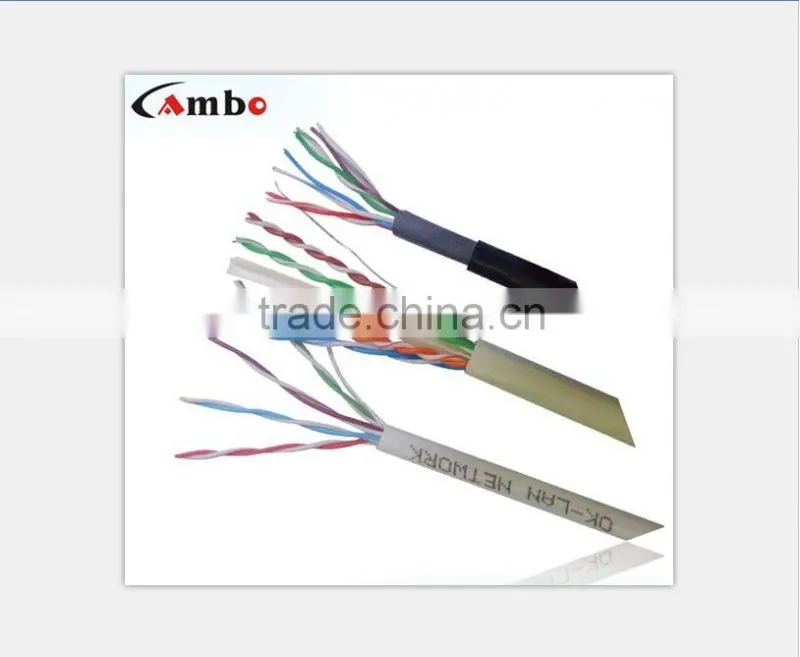

UTP/FTP/SFTP lan cable bulk cat5e cat6 twisted cable

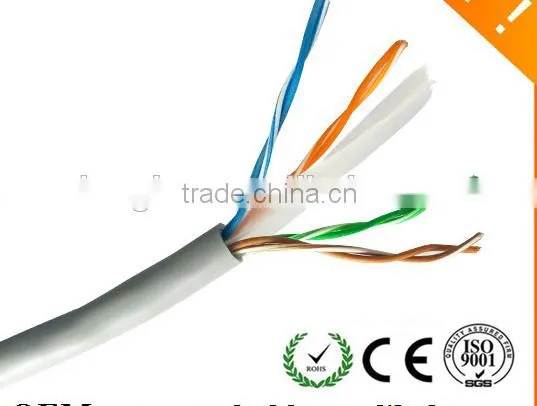

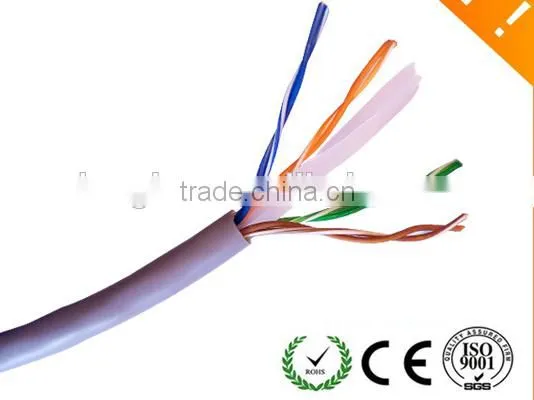

CAT5E UTP 24AWG 4P TWISTED COPPER CABLE
ITEM				Description
Conductor	material			Bare copper
	Construction			24AWG(1/0.50)
	OD			0.5 mm±0.02mm
Insulation	Material			HD-PE
	Thickness			0.269MM±0.05mm
	Elongation			Min.300%
	O.D.			0.975MM±0.03mm
	tensile			Min.1.22kg/mm2
jacket		Material			PVC
		Thickness			0.615mm±0.1mm
		O. D .			5.2mm±0.3mm
		Color			black
		Elongation			Min.125%
		tensile			Min.1.41kg/mm2
weight		9.7kgs/305m
Application		100 Base-TX, 100 Base-T4, 100VG-AnyLAN, 1000Base-T, ATM
datapass		180m
Temperature Rating			-30 - 75°C
Conductor Resistance			24AWG: 9.38/100M Max.(at 20)
Unbalance Resistance			5 Percent Max
Capacitance			5600pf/100 meters
Unbalance			330pf/100 meters
Impedance(ohm)			772KHz: 102±15%(85-117)
			1 MHz-100MHz: 100±15%(85-115)

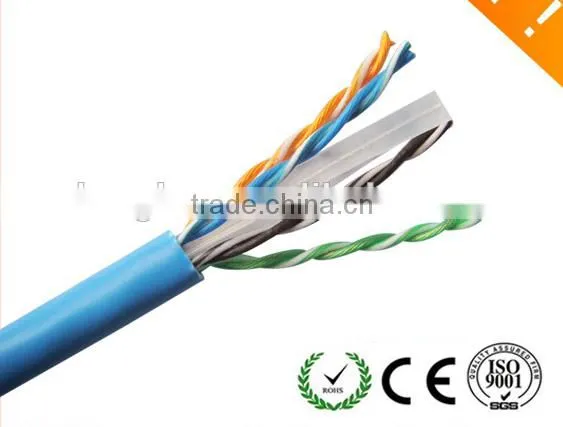

CAT6 CABLE specification

ITEM		Description
Conductor	material	Bare copper
	Construction	23AWG(1/0.57)
	O.D.	0.57 mm±0.02mm
Insulation	Material	HD-PE
	Thickness	0.269MM±0.05mm
	O.D.	1.03MM±0.03mm
	Elongation	Min.300%
	tensile	Min.1.22kg/m
Twist Pair N/A		color	function
		1. BlueaWhite / Blue	Unused Unused
		2. OrangeaWhite / Orange	Transmit Data + Transmit Data -
		3. GreenaWhite / Green	Receive Data + Receive Data -
		4. Brown White / Brown	Unused Unused
Remark : Network cabling comprises of four pairs of wires, only two pairs are normally used. Despite this, all the pairs should always be wired to maintain the network specification. The cable pair colors, pair numbers and wire descriptions are shown in the table
jacket	Material	PVC
	Thickness	0.615mm±0.1mm
	O. D .	6.3mm±0.3mm
	Color	According to customer’s requirement
	Elongation	Min.125%
	tensile	Min.1.41kg/m
