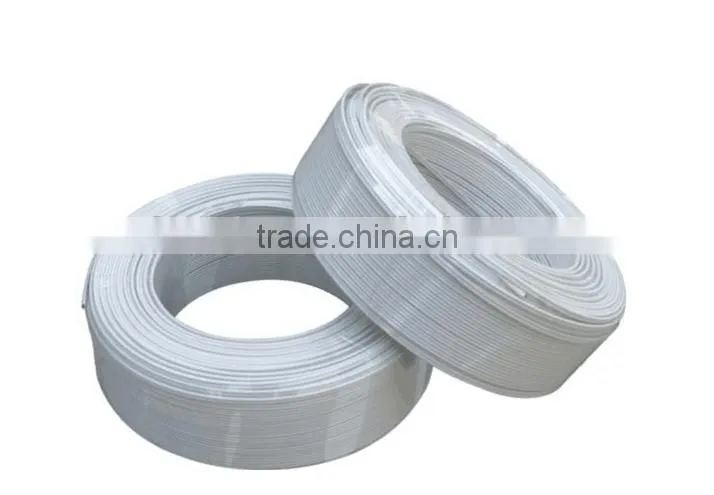

China Supplier Stranded Twisted Pair Utp Cat6 Network LAN Cable
- Computer network cabling project
- Broadband network communication
- Ethernet network
-Audio and data transmission
-10/100 Base-T4
-100Base-TX
-1000Base-T(Gigabit Ethernet)
-155Mbps ATM
-622Mbps ATM
| Rated temperature | 60°C,75°C |
| Refenencen standard | UL444,TIA-EIA-568C |
| Conductor | Bare copper or Copper clad aluminum |
| Insulation | Color-coded PE |
| Jacket | Lead free PVC or LSZH or PE |
| Package | Reel pull-out box |
What is the electrical properties of the cale ?
| Conductor resistance,maximum | Ω/km(20°C) | 66 | ||||||
| DC Resistance Imbalance(maximum) | % | 2.50% | ||||||
| Dielectric strength(DC test voltage for 1 min,) | DC(V) | 1000 | ||||||
| Insulation Resistance,minimum | MΩ.km | 5000 | ||||||
What is the transmission characteristics of the cable ?
| Frequency | Return Loss | IL | NEXT | PSNEXT | ELFEXT | PSELFEXT | ZO | Transmission Delay |
| MHZ | ≥dB | ≤dB | ≥dB | ≥dB | ≥dB | ≤dB | ohm | ≤ns/100m |
| 1 | 20 | 2.1 | 74.3 | 72.3 | 62.3 | 65 | 100±15 | 570 |
| 4 | 23 | 3.8 | 65.3 | 63.3 | 53.3 | 53 | 100±15 | 552 |
| 10 | 25 | 6 | 59.3 | 57.3 | 47.3 | 45 | 100±15 | 545.4 |
| 16 | 25 | 7.6 | 56.2 | 54.2 | 44.3 | 40.9 | 100±15 | 543 |
| 25 | 24.3 | 9.6 | 53.3 | 51.3 | 41.3 | 37 | 100±15 | 541.2 |
| 62.5 | 23.6 | 15.5 | 47.4 | 45.4 | 35.4 | 29.1 | 100±15 | 538.6 |
| 100 | 20.1 | 19.9 | 44.3 | 42.3 | 32.3 | 25 | 100±15 | 537.6 |
| 200 | 18 | 29.1 | 39.8 | 37.8 | 27.8 | 19 | 100±15 | 536.5 |
| 250 | 17.3 | 33 | 38.3 | 36.3 | 26.3 | 17 | 100±15 | 536.3 |
