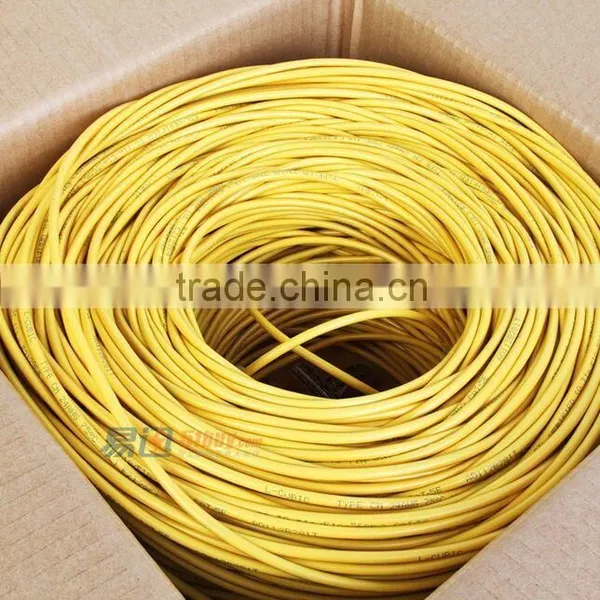

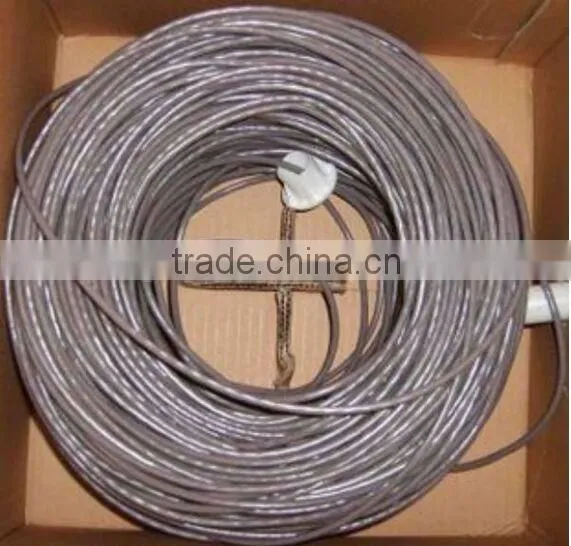

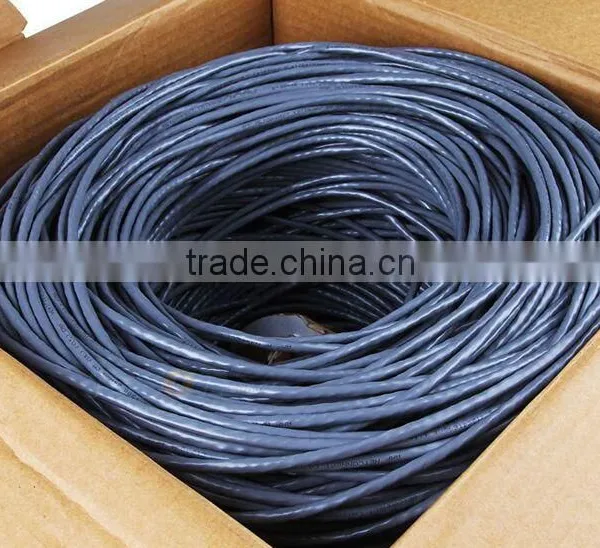

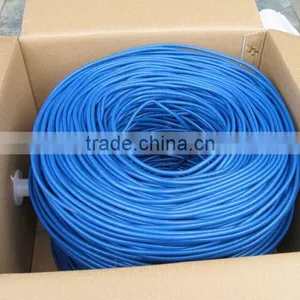

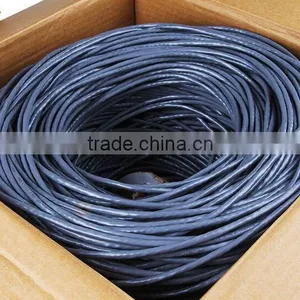

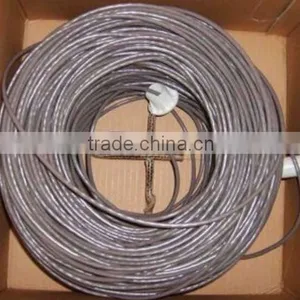

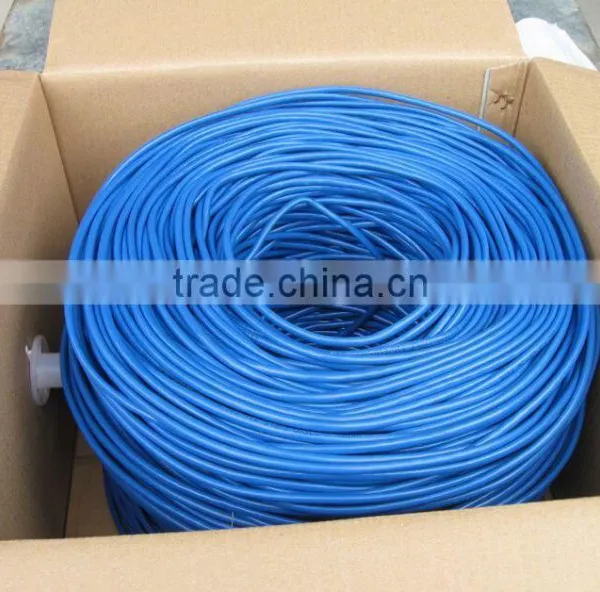

Help CenterNetworking Cable Cat5,computer Cable Cat5,twisted Pair Cat5 Networking Cable
Related Products
-
UTP/FTP/SFTP Lan Cable Pass Fluke CableUS$ 2.00 - 2.00MOQ: 1000 Pieces -
2~10 Core Multicore Cable Flexible Signal Power Data Auto Cable WireUS$ 2.00 - 2.00MOQ: 1000 Pieces
-
Telephone Cable/multi Pair Telephone CableUS$ 2.00 - 2.00MOQ: 1000 Pieces
-
Super Quality Telephone Paper Covered WireUS$ 2.00 - 2.00MOQ: 1000 Pieces
-
SFTP Network Cable Manufacturers 4P 24/26AWG CCS/CCA/CCAG/CU Cat5 Computer Cable Lan Cable Wholesale In Guangzhou FactoryUS$ 2.00 - 2.00MOQ: 1000 Pieces
STANDARDCOMPLIANCES
All Proposed Category 5e Requirements as per ANSI/TIA, ISO/IEC, and CENELEC EN
Standards: ANSI/TIA-568-C.2 Cat.5e
ISO/IEC 2nd Edition 11801 Class D CENELECEN 50173-1
IEC 61156-5,CENELEC EN 50288-3-1 for horizontalcable
Flame Retardancy isverified according to IEC UL 1581 Sunlight-resistant test is verified according to UL 444
We ImplementedRoHS Compliance for the Requirement of European UnionIssued Directive 2002/95/EC
Conductor |
Material / Size |
Bare Copper / 24AWG |
|
Insulation |
Material |
HDPE |
Thickness |
Nominal: 0.195 mm |
|
Diameter |
Nominal: 0.90 mm |
|
Colors |
Blue/White-Blue Orange/White-Orange |
|
Green/White-Green Brown/White-Brown | ||
Unaged Elongation |
Min. 300% |
|
Unaged Tensile Strength |
Min. 1.683 Kgf/mm² |
|
|
Jacket |
Material |
PVC (Type CM-CMX with sunlight resistance) |
Thickness |
Nominal: 0.5 mm |
|
Diameter |
Nominal: 5.1 mm |
|
Color |
Assorted upon request |
|
Unaged Elongation |
Min. 100% |
|
Unaged Tensile Strength |
Min. 1.407 Kgf/mm² |
|
Aging at 100℃for 168Hrs |
Min. elongation retention:50% |
|
Min. tensile strength retention:85% | ||
|
Marking |
CAT.5E UTP INSTALLATION CONFORM TO ANSI/TIA-568-C.2 & ISO/IEC 11801 ED.2 & EN 50288-3-1 & IEC 60332-1-2 24AWGX4P TYPE CMX Outdoor - CM (sun res) (UL) c(UL) [XXXXXXM] |
|
|
1.As customer request. 2.Marking of UL information changes by different classes of flame test request by customer. | ||
