Adjustable Vibration Forces Vibrating Feeder price
Type: Necessary Equipment
Input Size: 0-1000mm
Processed Materials: River Gravel, Granite, Basalt, Quartz, Iron ore, Diabase, Limestone, Coal Gangueetc.
Applications: Aggregate Field, Concrete Mixing Plant, Dry Motar Plant Desulfurization, Quartz Sand etc
Introduction of Vibrating Feeding Machine
- We manufacture professional quality Vibrating feeders used in industrial, mining, construction material, silicate and chemical plants. Our feeders are manufactured out of the most optimum quality raw materials.
- Vibrating feeder can be developed in accordance with the specific need of clients. Due to performance, quality and competitive market prices our feeders for Crusher are in great demand.
- Feeders are designed and fine tuned to assure the uniform and regular flow of materials over the crusher, screening system and to the conveyors. The settings of feeder equipments can be adjusted according to the requirement.
Technical Parameters of Vibrating Feeding Machine
|
Model |
Feed chute size (mm) |
Max. feeding size (mm) |
Handling capacity (t/h) |
Power (kW) |
Overall dimension (mm) |
Weight (including motor) (kgs) |
GZD-960×3800 |
960×3800 |
500 |
90-160 |
11 |
3880×2240×1880 |
3980 |
GZD-1100×4200 |
1100×4200 |
600 |
120-240 |
15 |
4300×2450×2010 |
4170 |
GZD-1300×4900 |
1300×4900 |
600 |
150-400 |
18.5 |
4980×2705×2050 |
5200 |
GZD-1500×6000 |
1500×6000 |
800 |
460-575 |
30 |
6160×2920×2295 |
9000 |
Working Principle of Vibrating Feeding Machine

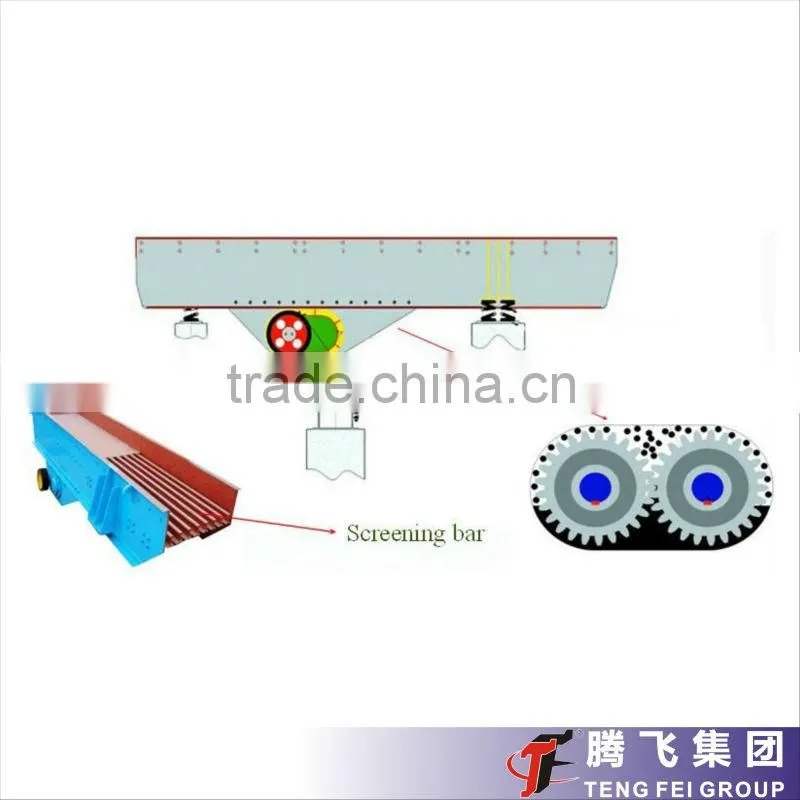

- Vibrating Feeding Machine is designed based on the vibration principle. It creates vibration when the materials are passed into the funnel and screen. Vibrating feeder is made up of vibrating frame, vibrator, spring, motor and motor vibrating accessory.
- The vibrator contains two fixed eccentric shafts with jogged gears. And they create a high aptitude to vibrate the equipment.

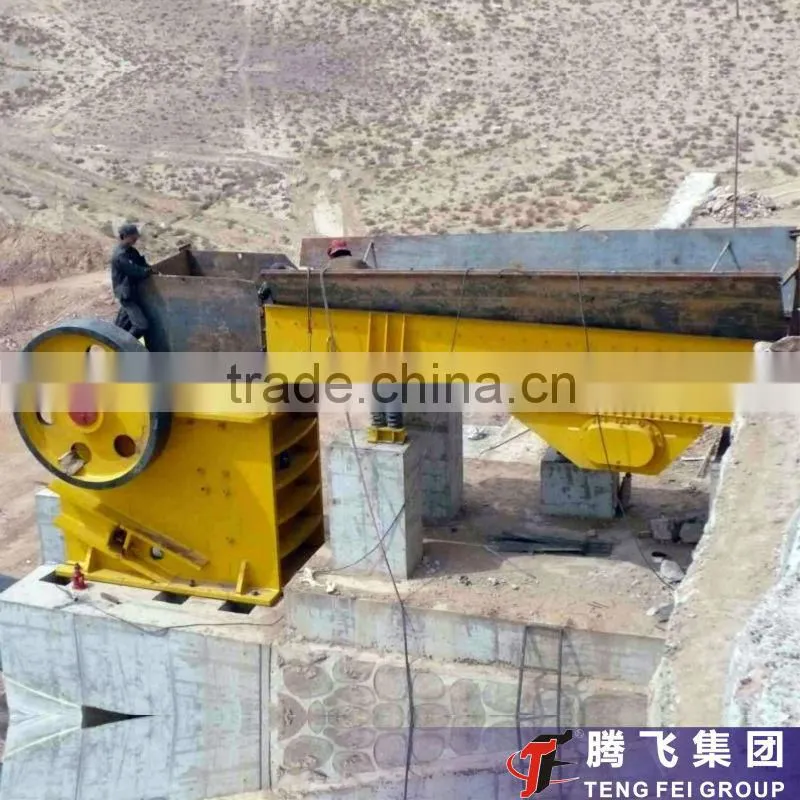

Working Site
How is the quality of your products?
Our products are manufactured strictly according to national and international standard,and we take a test on every grinder before delivered out. If you want see our quality certifications and all kinds of testing report, please just ask us for it.
Guaranteed:
If products’ quality don’t accord to description as we give or the promise before you place order,we promise 100% refund
How about price?
Yes, we are factory and be able to give you lowest price below market one and we have a policy that “ for saving time and absolutely honest business attitude, we quote as lowest as possible for any customer, and discount can be given according to quantity”, if you like bargain and factory price is not low enough as you think, just don’t waste your time.Please trust the quotation we would give you, it is professional one.
Why should we choose you?
Chose happens because of quality, then price, we can give you both.
Additionally, we can also offer professional products inquiry, products knowledge train(for agents), smooth goods delivery, excellent customer solution proposals.Our service formula: good quality+good price+good service=customer’s trust.
