Vibrating Grizzly Feeder With Adjustable Vibration Force

Vibrating Grizzly Feeder With Adjustable Vibration Force thumbnail-1
Vibrating Grizzly Feeder With Adjustable Vibration Force photo-1
US$ 12,500 - 24,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
limestone, granite, quartz, coal, hematite, iron ore
Power Type:
Electric
Contact Supplier Request Quote Chat Now
Henan Teng Fei Machine Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai Ningbo etc.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application limestone, granite, quartz, coal, hematite, iron ore
Power Type Electric
Capacity(t/h) 150-400 t/h
Place of Origin Henan, China
Brand Name TengFei
Model Number GZD-1300x4900
Power(W) 18.5 KW
Dimension(L*W*H) 4980x2705x2050 mm
Weight 5200 kg
Certification CE ISO
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Vibrating Grizzly Feeder:
1. Adjustable vibration force
2. Using eccentric block
3. High adjusting ability
4. High capacity

Vibrating Grizzly Feeder


Product Description





Type : Necessary Equipment



Input Size: 0-1000mm



Processed Materials: River Gravel, Marble, Granite, Basalt, Quartz, Iron ore, Diabase, Limestone, Coal Gangueetc.



Applications: Aggregate Field, Concrete Mixing Plant, Dry Motar Plant Desulfurization, Quartz Sand etc



  • We manufacture professional Vibrating Grizzly Feeder used in industrial, mining, construction material, silicate and chemical plants. Our feeders are manufactured out of the most optimum quality raw materials.
  • Vibrating Grizzly Feeder can be developed in accordance with the specific need of clients. Due to performance, quality and competitive market prices our feeders for Crusher are in great demand.
  • Vibrating Grizzly Feeder is designed and fine tuned to assure the uniform and regular flow of materials over the crusher, screening system and to the conveyors. The settings of feeder equipments can be adjusted according to the requirement.

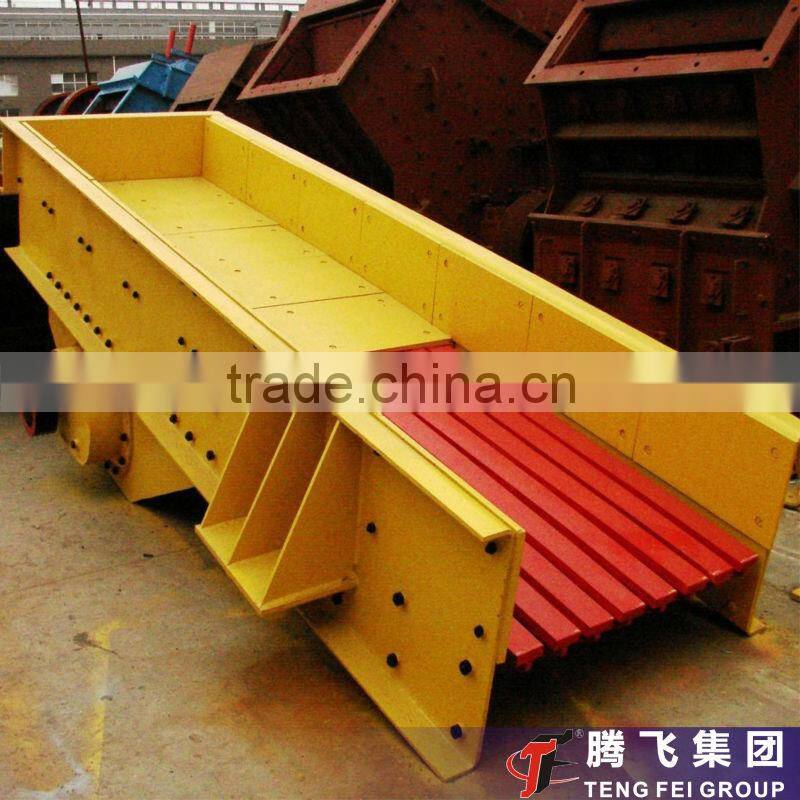

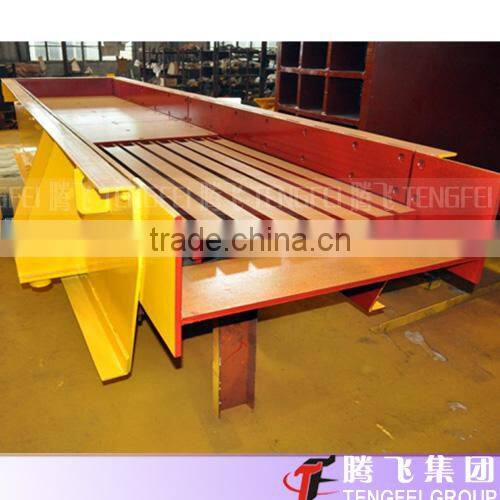

Vibrating Grizzly Feeder with Adjustable Vibration ForceVibrating Grizzly Feeder with Adjustable Vibration Force





Technical Parameters of Vibrating Grizzly Feeder



Model

Feed chute size (mm)

Max. feeding size (mm)

Handling capacity

(t/h)

Power (kW)

Overall Dimension (mm)

Weight (including motor) (kgs)

GZD-960×3800

960×3800

500

90-160

11

3880×2240×1880

3980

GZD-1100×4200

1100×4200

600

120-240

15

4300×2450×2010

4170

GZD-1300×4900

1300×4900

600

150-400

18.5

4980×2705×2050

5200

GZD-1500×6000

1500×6000

800

460-575

30

6160×2920×2295

9000

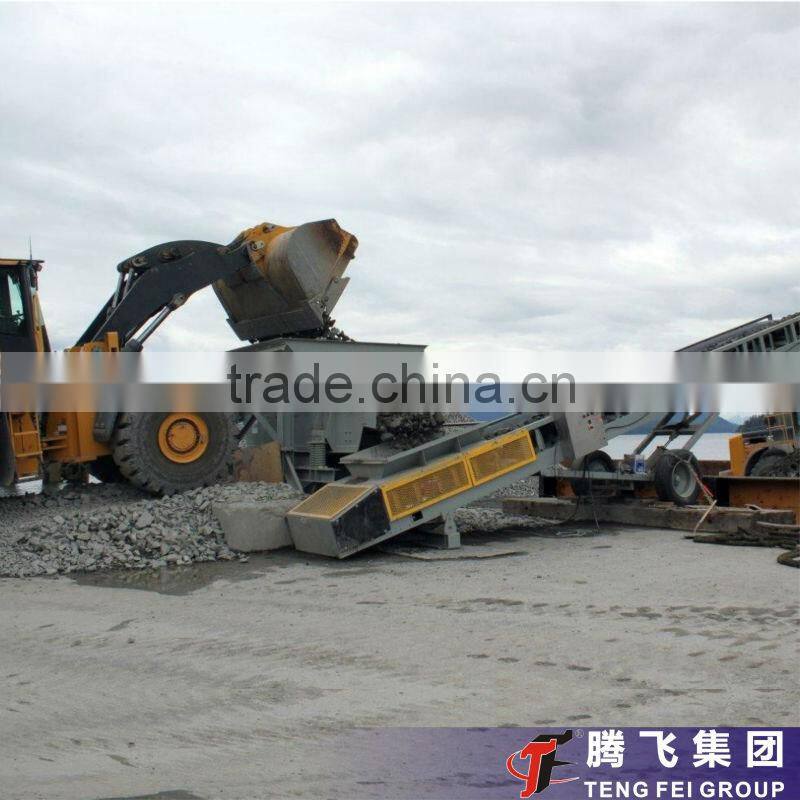

Working Site

Vibrating Grizzly Feeder with Adjustable Vibration ForceVibrating Grizzly Feeder with Adjustable Vibration Force

Vibrating Grizzly Feeder with Adjustable Vibration Force
