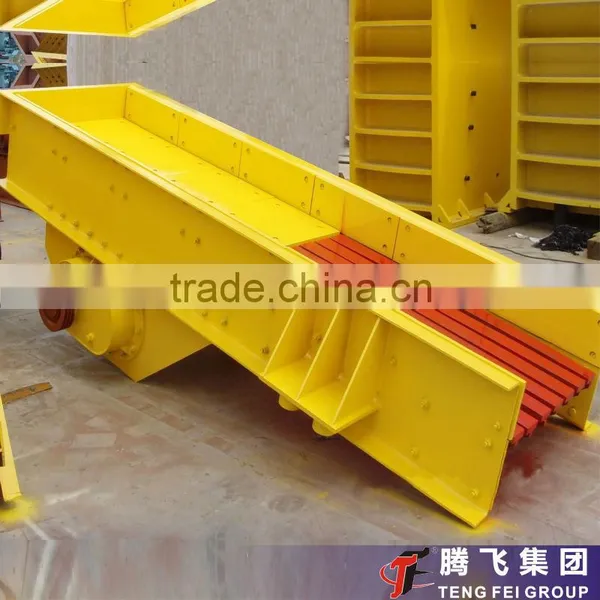

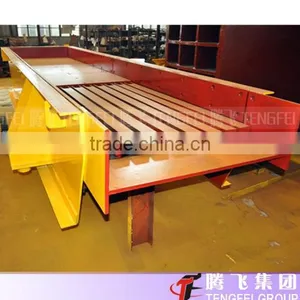

High Efficiency Industrial Vibrator Feeders Used Widely
Type: Industrial Vibrator Feeders
Input Size: 0-1000mm
Processed Materials: River Gravel, Granite, Basalt, Quartz, Iron ore, Diabase, Limestone, Coal Gangueetc.
Applications: Aggregate Field, Concrete Mixing Plant, Dry Motar Plant Desulfurization, Quartz Sand etc
Introduction of Vibrating Feeding Machine:
1.We manufacture professional quality Vibrating feeders used in industrial, mining, construction material, silicate and chemical plants. Our feeders are manufactured out of the most optimum quality raw materials.
2.Vibrating feeder can be developed in accordance with the specific need of clients. Due to performance, quality and competitive market prices our feeders for Crusher are in great demand.
3.Feeders are designed and fine tuned to assure the uniform and regular flow of materials over the crusher, screening system and to the conveyors. The settings of feeder equipments can be adjusted according to the requirement.
Working Principle of Vibrating Feeding Machine:

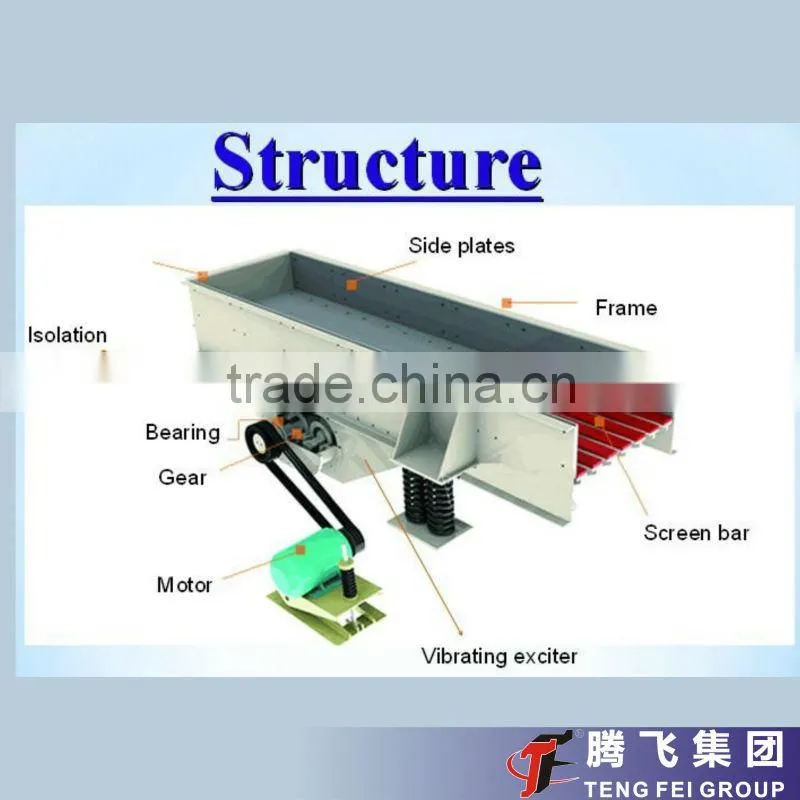

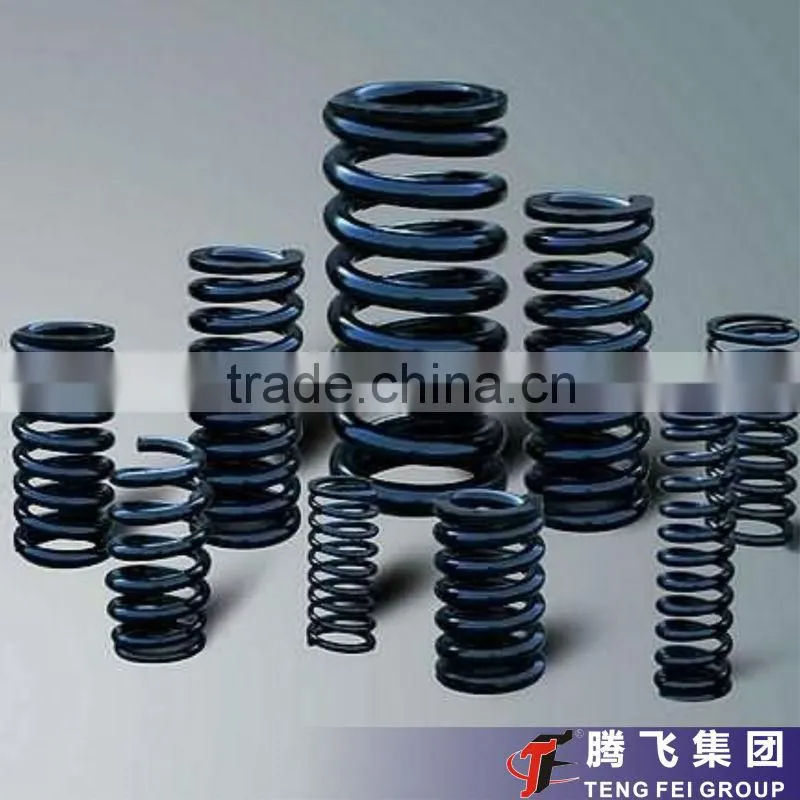

- Vibrating Feeding Machine is designed based on the vibration principle. It creates vibration when the materials are passed into the funnel and screen. Vibrating feeder is made up of vibrating frame, vibrator, spring, motor and motor vibrating accessory.
- The vibrator contains two fixed eccentric shafts with jogged gears. And they create a high aptitude to vibrate the equipment.
Technical Parameters of Vibrating Feeding Machine:
|
Model |
Feed chute size (mm) |
Max. feeding size (mm) |
Handling capacity (t/h) |
Power (kW) |
Overall dimension (mm) |
Weight (including motor) (kgs) |
GZD-960×3800 |
960×3800 |
500 |
90-160 |
11 |
3880×2240×1880 |
3980 |
GZD-1100×4200 |
1100×4200 |
600 |
120-240 |
15 |
4300×2450×2010 |
4170 |
GZD-1300×4900 |
1300×4900 |
600 |
150-400 |
18.5 |
4980×2705×2050 |
5200 |
GZD-1500×6000 |
1500×6000 |
800 |
460-575 |
30 |
6160×2920×2295 |
9000 |
Workshop:
