Proffessional Supplier Vibrating Screen Manufacturer

Proffessional Supplier Vibrating Screen Manufacturer thumbnail-1
Proffessional Supplier Vibrating Screen Manufacturer photo-1
US$ 1,800 - 19,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New, New
Application:
limestone, granite, quartz, coal, hematite, iron ore
Power Type:
Electric
Contact Supplier Request Quote Chat Now
Henan Teng Fei Machine Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qindao tianjin Shanghai Ningbo etc.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Application limestone, granite, quartz, coal, hematite, iron ore
Power Type Electric
Capacity(t/h) 150-400t/h
Place of Origin Henan, China
Brand Name TengFei
Model Number GZD1300-4900
Power(W) 18.5kw
Dimension(L*W*H) 4980x2705x2050mm
Weight 5.2t
Certification CE ISO
Warranty 1year
After-sales Service Provided Engineers available to service machinery overseas

Proffessional supplier vibrating screen manufacturer





Product Description
  • Type: Necessary Equipment
  • Input Size: 1-1000mm
  • Processed Materials: River Gravel, Granite, Basalt, Quartz, Iron ore, Diabase, Limestone, Coal Gangueetc.
  • Applications: Aggregate Field, Concrete Mixing Plant, Dry Motar Plant Desulfurization, Quartz Sand etc
Proffessional supplier vibrating screen manufacturerProffessional supplier vibrating screen manufacturerProffessional supplier vibrating screen manufacturerProffessional supplier vibrating screen manufacturer

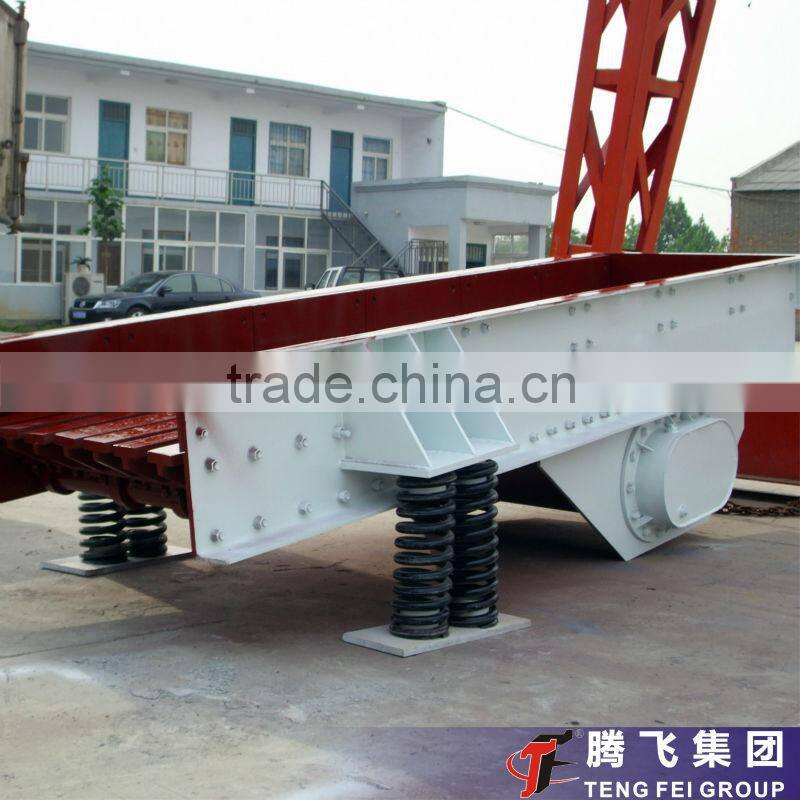

  • We manufacture professional quality Electromagnetic Vibrating Feeder used in industrial, mining, construction material, silicate and chemical plants.
  • Our feeders are manufactured out of the most optimum quality raw materials.Vibrating feeder can be developed in accordance with the specific need of clients.
  • Due to performance, quality and competitive market prices our feeders for Crusher are in great demand.
  • Feeders are designed and fine tuned to assure the uniform and regular flow of materials over the crusher, screening system and to the conveyors.
  • The settings of feeder equipments can be adjusted according to the requirement

Technical Parameters of Vibrating Feeder Controller





Model

Feed chute size (mm)

Max. feeding size (mm)

Handling capacity (t/h)

Power (kW)

Overall dimension (mm)

Weight (including motor) (kgs)

GZD-960×3800

960×3800

500

90-160

11

3880×2240×1880

3980

GZD-1100×4200

1100×4200

600

120-240

15

4300×2450×2010

4170

GZD-1300×4900

1300×4900

600

150-400

18.5

4980×2705×2050

5200

GZD-1500×6000

1500×6000

800

460-575

30

6160×2920×2295

9000



Various Spares of Vibrating Feeder Controller

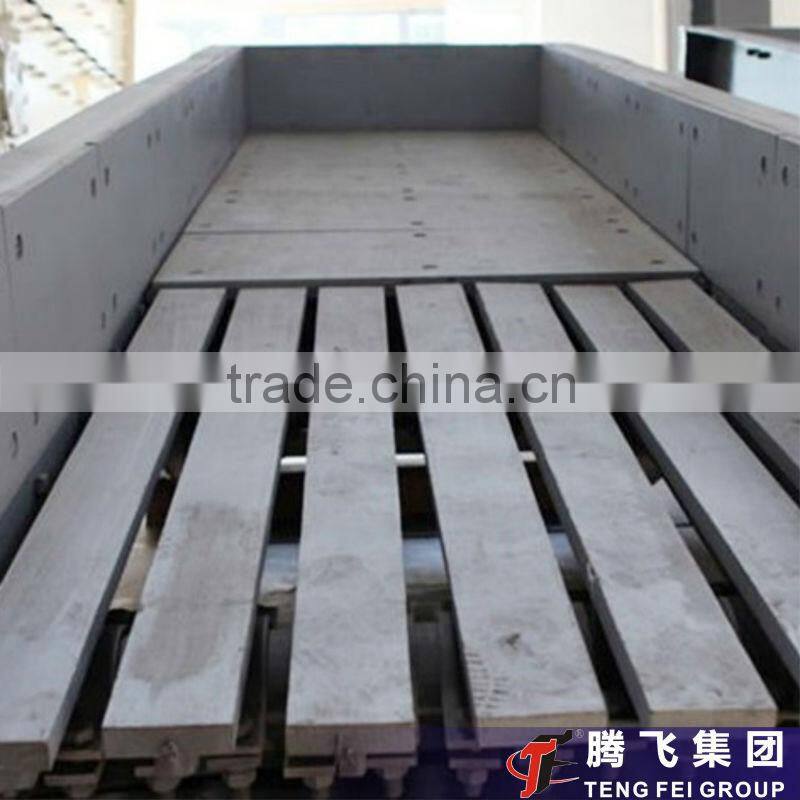

Screen Bar

Proffessional supplier vibrating screen manufacturer

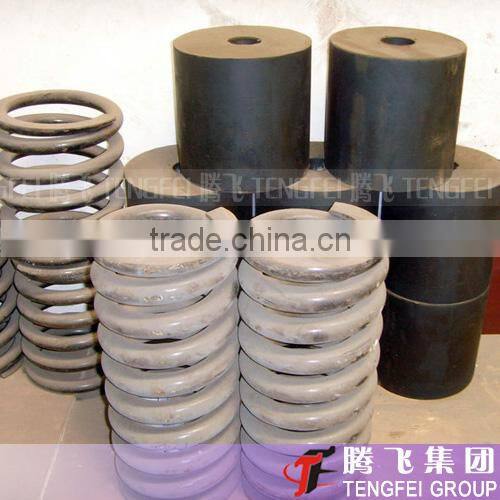

Spring

Proffessional supplier vibrating screen manufacturer





5 Features of Vibrating Feeder Controller

  • It vibrates calmly, works reliably with a long life-span
  • Its stimulating vibrancy power can be adjusted, while the flux can be changed and controlled, it is convenient and stable to adjust
  • Vibrating feeder's vibrating electrical engine is stimulating vibrancy fountain, with low noise, low cost of electricity, and good adjusting capability, without rushing phenomenon.
  •  Its structure is simple and works stably, and easy to adjust and install, and it is convenient to maintain and take care for its light weight and small size, and it can avoid powder and dust pollution when using the closed structural body.
  • Characters: Smooth vibration, reliable operation, long service life, low noise, low power consumption, easy to adjust, simple structure, easy to install, light weight, small volume, simple maintenance.

  Proffessional supplier vibrating screen manufacturerProffessional supplier vibrating screen manufacturer
