Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > ZR-KVV 61*1 0.6/1kv Fire-resistant Pvc Insulated Power Control Cable

ZR-KVV 61*1 0.6/1kv Fire-resistant Pvc Insulated Power Control Cable

Name: ZR-KVV 61*1 0.6/1kv Fire-resistant Pvc Insulated Power Control Cable
Brand: pengliang
SKU: 115523633
Availability: InStock

ZR-KVV 61*1 0.6/1kv Fire-resistant Pvc Insulated Power Control Cable thumbnail-1

ZR-KVV 61*1 0.6/1kv Fire-resistant Pvc Insulated Power Control Cable photo-1

US$ 1 - 15 MOQ: 1 Kilometer

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

pengliang

Model Number:

KVV/ZR-KVV

Contact Supplier Request Quote Chat Now

Shenyi Wire & Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name pengliang

Model Number KVV/ZR-KVV

Insulation Material PVC

Type High Voltage

Application Construction

Conductor Material Copper

Jacket PVC

Product Description

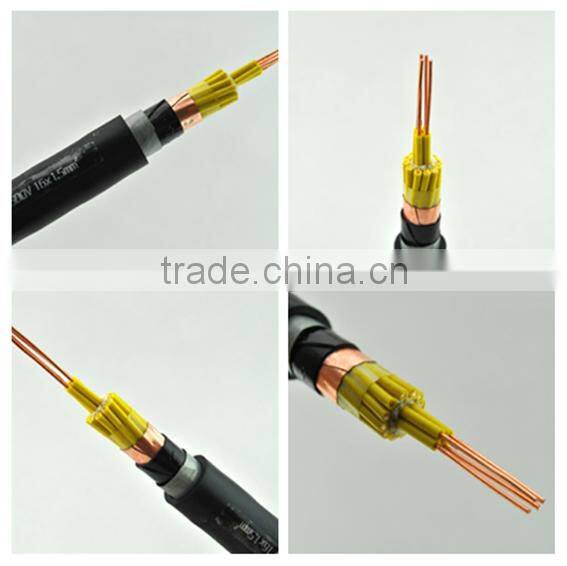

ZR-KVV 61*1 0.6/1kv fire-resistant pvc insulated power control cable

Control cables PVC insulation
1, Widely Used in power transmission
2, Best quality, Low price
3, MOQ: 1km

4,free sample

Product Characteristic:

1 The rated voltage is 450/750v and under 450/750v. The pvc can be used in the place of 0.6/1KV.
1. the long-term working temperature: PVC and PE insulated should not be above 70°C, pvc insulated should not be

above 90°C.
2. The laying temperature should not be above -20°C.
3. The bending radius of cable: non armoured cable, should not be less than 6 times. Armoured or copper tape screen

should not be less than 12 times. The soft screen cable should not be less than 6 times.

Type	Name	Section Area(mm2)	No. of Core	Application Site
KVV	Copper Conductor,PVC Insulated and Sheathed Control Cable	0.75 1.0 1.5 2.5	2-16	Permanent installation indoors,in cable ditches or pipes
		4 6	2-14
		10	2-10
KVVP	Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable	0.75 1.0 1.5 2.5	2-61	Permanent installation indoors,in cable ditches or pipes where shielding is required
		4 6	2-14
		10	2-10
KVVP2	Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable	0.75 1.0 1.5 2.5	4-10	Permanent installation indoors,in cable ditches or pipes where shielding is required
		4 6	7-61
		10	4-10
KVV22	Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable	0.75 1.0 1.5 2.5	7-61	Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force

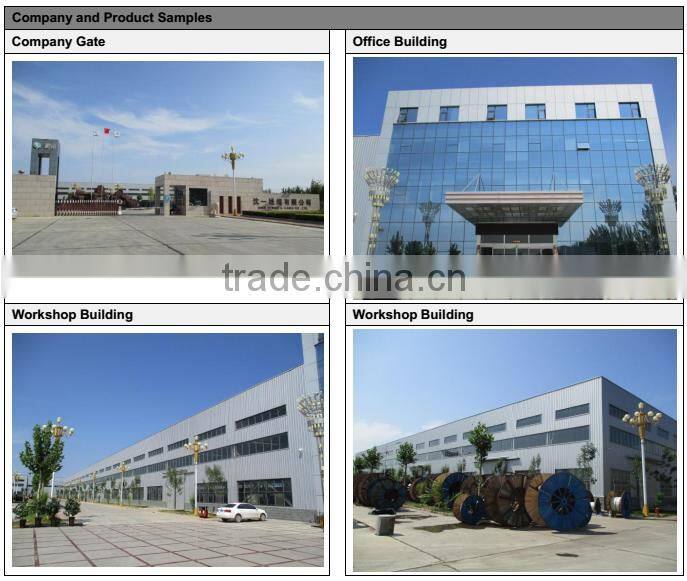

Company Information

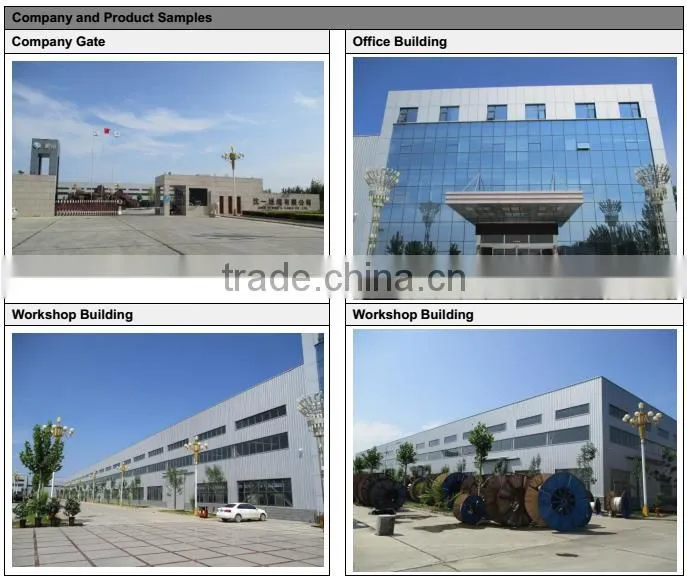

Shenyi Wire & Cable Co.,Ltd(The former shenyang XLPE cable factory which founded in october 1993),located in tianbao west street north Industry clusters xicheng area ningjin county,hebei Province which called cable hometown.It covers an area of more than 50000 square meters,fixed assets of RMB 88 million,the registered capital of RMB10088 million,with more than 180 employees.

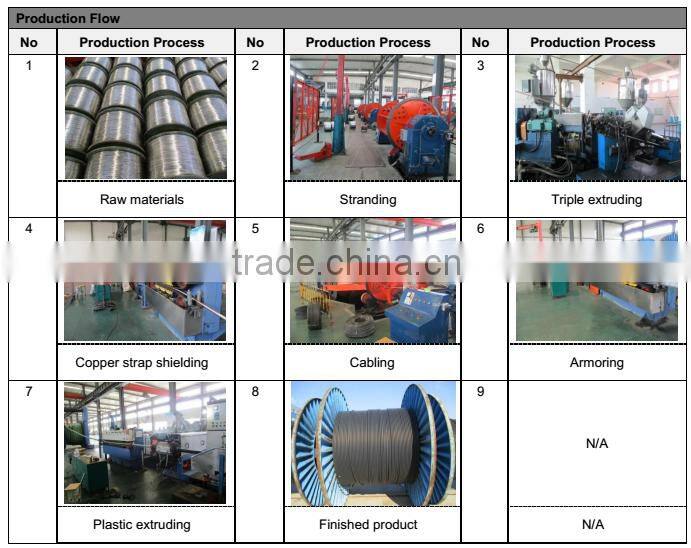

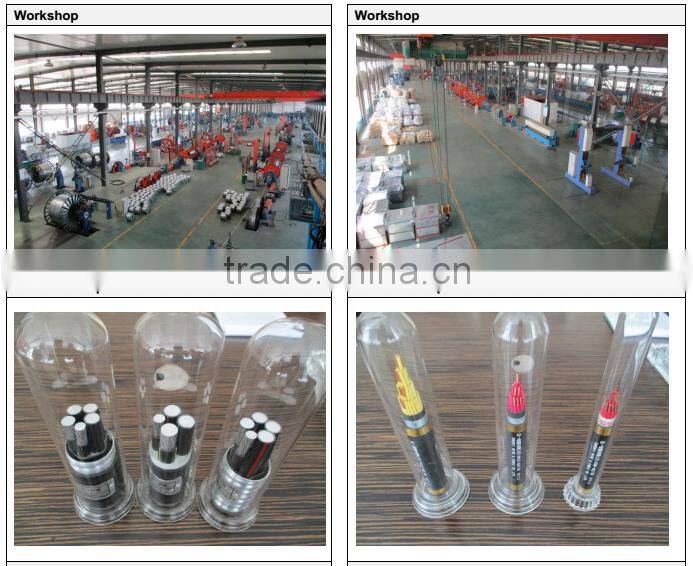

Production Line

As one of top rank cables manufacturers in China, our factory is mainly specialized in PVC Insulated Building Wire, PVC and XLPE Insulated Power Cable with Voltage up to 35kV, Rubber Cable and Welding Cables. And we also specialize in Aerial Bundled Cable(ABC Cable), Bare Overhead Power Transmission Line such as triplex overhead service conductors(AAC Conductor), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR).

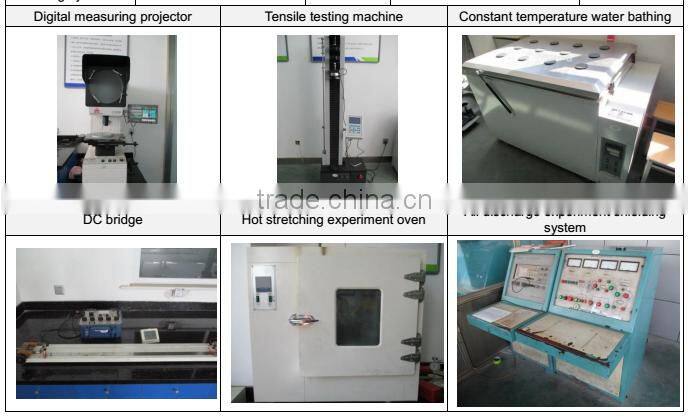

Testing equipment

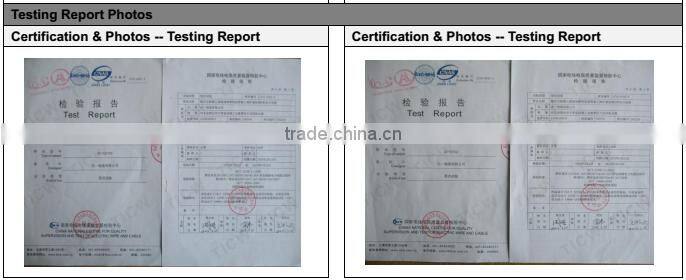

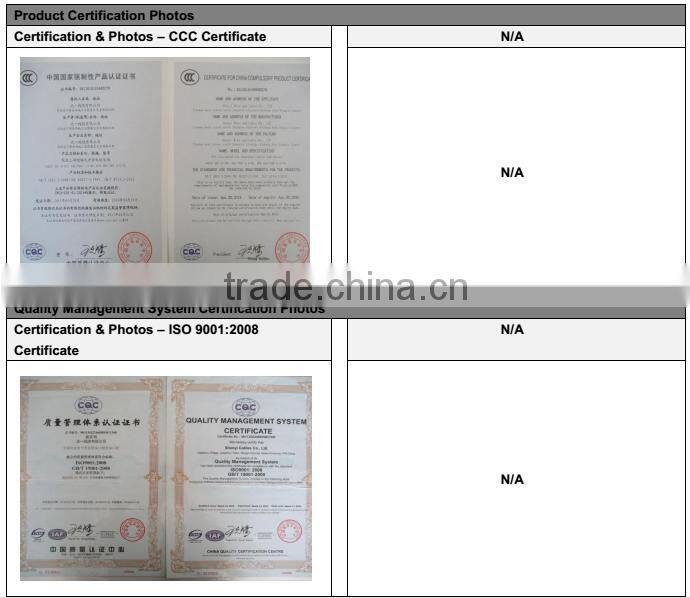

Certifications

Packaging & Shipping

We hope to get in touch with you

Dear friends, welcome to our store. We will provide you with china wholesale market market products, excellent service and reasonable price.Please contact us if have any questions about the product. we will answer the questions carefully.At last,I wish you a pleasant purchase.
