High Capacity Wheel Sand Washing Machine
US$ 7,500 - 12,800
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Motor Type:
AC Motor
Power(W):
15 KW
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai Ningbo etc.
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Low Failure Rate XSD2816 Ore WasherUS$ 1,800 - 16,000MOQ: 1 Set -
XSD3016 Washing Machine UsedUS$ 7,500 - 12,800MOQ: 1 Set
-
High Washing Efficiency XSD3016 Ore Washing MachineUS$ 7,500 - 12,800MOQ: 1 Set
-
Small Sand Washer With Low Bearing DamageUS$ 8,000 - 11,000MOQ: 1 Set
-
Large Processing Capacity River Sand Washing MachineUS$ 11,200 - 15,800MOQ: 1 Set
Condition
New
Motor Type
AC Motor
Power(W)
15 KW
Capacity(t/h)
50-100
Place of Origin
Henan, China
Brand Name
TengFei
Model Number
XSD3016
Dimension(L*W*H)
3845x3000x3080 mm
Weight
3.3 t
Certification
ISO CE
Warranty
12Months
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Wheel Sand Washing Machine:1. Little loss of sand in washing process
2. Large capacity
3. High washing efficiency
4. Stable

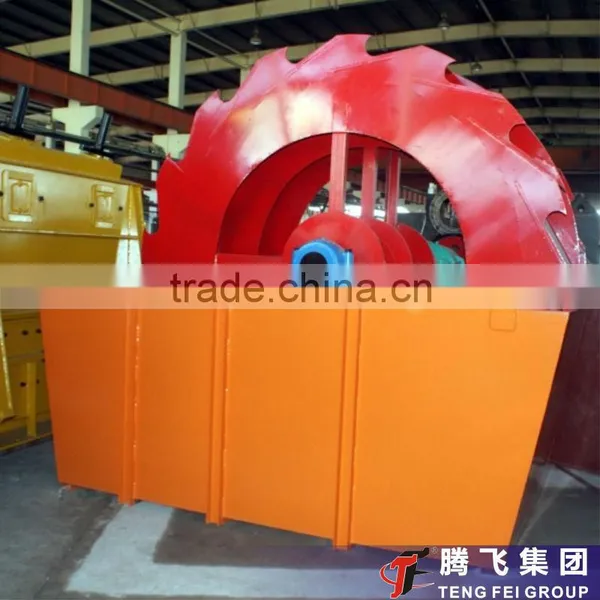

Wheel Sand Washing Machine
Product Description
Type: Necessary Equipment
Input Size: <10mm
Processed Materials: River Gravel,Granite,Basalt, Quartz,Iron Ore, Diabase,Limestone,Coal Gangueetc.
Applications: Aggregate Field, Concrete Mixing Plant, Dry Mortar Plant Desulfurization, Quartz Sand etc
.
Overview of Wheel Sand Washing Machine
- Wheel Sand Washing Machine is a kind of wheeled washing equipment, and can clean and separate the dust and powder from the sand. Its new seal-structure and reliable driving device can make sure the cleaning effect and a kind of high efficiency sand washing equipment matched with the sand making machine.
- Wheel Sand Washing Machine is mainly used in building site, gravel plant, concrete dam building site of hydropower station, etc.
- It has features of high degree cleaning-up, reasonable structure, large capacity, low power consumption, small loss of the sands during the washing process, especially for that the drive parts of the sand washing machine are separated from water and sands. So that it has lower failure rate than the usual sand washing machine.
Benefits of Wheel Sand Washing Machine
- Simple structure
- The bearing device of impeller drive is separated from water and materials with water, to avoid the damage of the bearing
- New sealing structure and reliable transmission device
- Reasonable structure
- High capacity, low power consumption
- Easy structure, stable operation
Working Principle:
- When the machine works, the motor drives the impeller run slowly after being decelerated by v-belt, reducer and gear. The sand enters the wash trough through feeding tank, rolls pushed by the impeller, and rubs mutually to remove the impurities covering on the surface of the sand, at the same time, it breaks the water vapour which favors dewatering; At the same time, the strong water flow takes the impurities away, and discharged from the overfall.
- The clean sand is taken away by the impellers, when rising, the water drops down to the wash trough from the nets, this can both dewater the sand and save water. Finally, the sand is poured into the discharge chute and finished cleaning.
Technical Parameters of Wheel Sand Washing Machine
Model |
Wheel Size (mm) |
Max Feed Size (mm) |
Power (kW) |
Weight (t) |
Capacity (t/h) |
Overall Dimension (mm) |
XSD2610 |
Φ2600×1000 |
10 |
5.5 |
2.7 |
20-50 |
3255×1982×2690 |
XSD2816 |
Φ2800×1600 |
10 |
11 |
3 |
30-60 |
3540×3000×2880 |
XSD3016 |
Φ3000×1600 |
10 |
15 |
3.3 |
50-100 |
3845×3000×3080 |

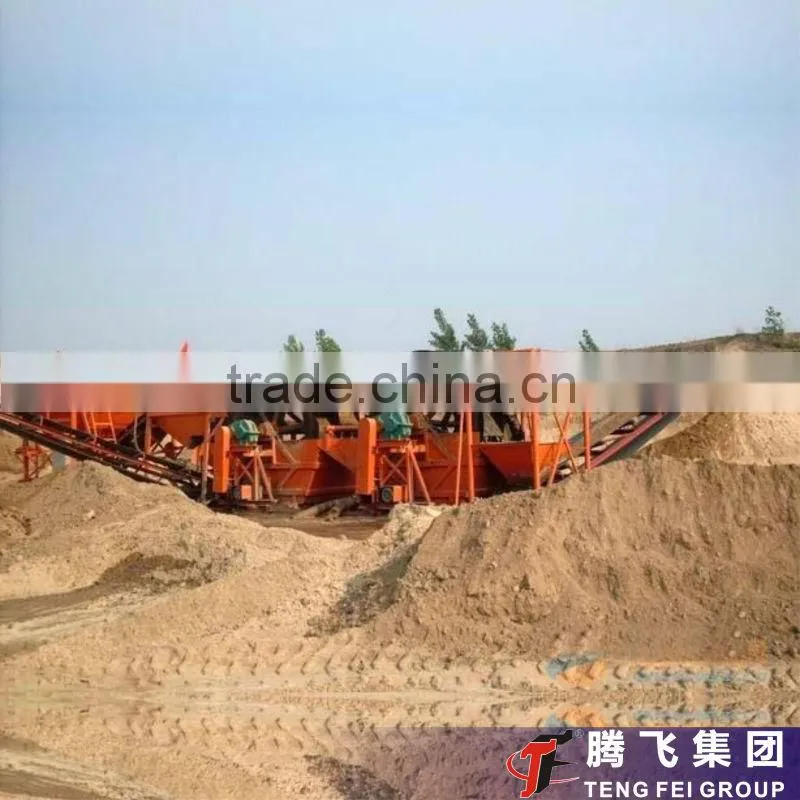

Working Site
