Specifications
XSD2816 Ore Washer1.Reasonable structure
2. Large capacity
3. Low consumption
4. Low failure rate

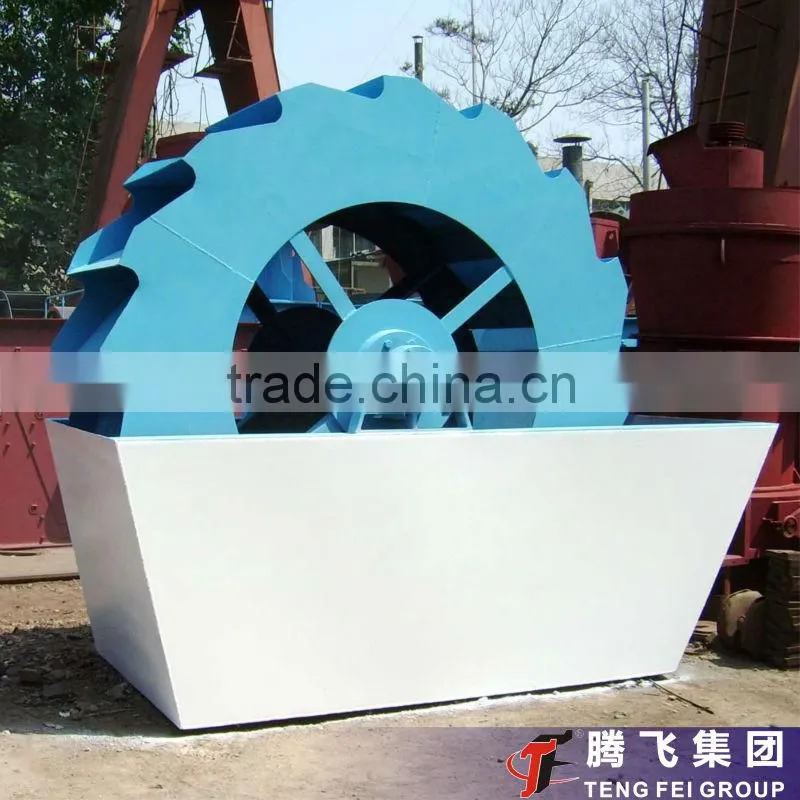

XSD2816 Ore Washer
Type:Necessary Equipment
Input Size:<10mm
Processed Materials: River Gravel, Granite, Basalt, Quartz, Iron Ore, Diabase, Limestone, Coal Gangueetc.
Applications: Aggregate Field, Concrete Mixing Plant, Dry Mortar Plant Desulfurization, Quartz Sand etc
Overview
- XSD2816 Ore Washer is a kind of wheeled washing equipment, and can clean and separate the dust and powder from the sand. Its new seal-structure and reliable driving device can make sure the cleaning effect and a kind of high efficiency sand washing equipment matched with the sand making machine.
- XSD2816 Ore Washer is mainly used in building site, gravel plant, concrete dam building site of hydropower station, etc., and with features of high degree cleaning-up, reasonable structure, large capacity, low power consumption, small loss of the sands during the washing process, especially for that the drive parts of the sand washing machine are separated from water and sands.
- So that it has lower failure rate than the usual sand washing machine.
Technical Parameters of XSD2816 Ore Washer
Model |
Wheel Size (mm) |
Max feed size (mm) |
Power (kW) |
Weight (t) |
Capacity (t/h) |
Overall dimension (mm) |
XSD2610 |
Φ2600×1000 |
10 |
5.5 |
2.7 |
20-50 |
3255×1982×2690 |
XSD2816 |
Φ2800×1600 |
10 |
11 |
5.5 |
30-60 |
3540×3000×2880 |
XSD3016 |
Φ3000×1600 |
10 |
15 |
5.8 |
50-100 |
3845×3000×3080 |
Working Site
