Specifications
Sand Wash1. Little loss of sand during washing process
2. Large capacity
3. Low bearing damage
4. Stable operation,stable
Sand Wash
Type: Necessary Equipment
Input Size: <10mm
Processed Materials: River Gravel, Granite, Basalt, Quartz, Iron Ore, Diabase, Limestone, Coal Gangueetc.
Applications: Aggregate Field, Concrete Mixing Plant, Dry Mortar Plant Desulfurization, Quartz Sand etc

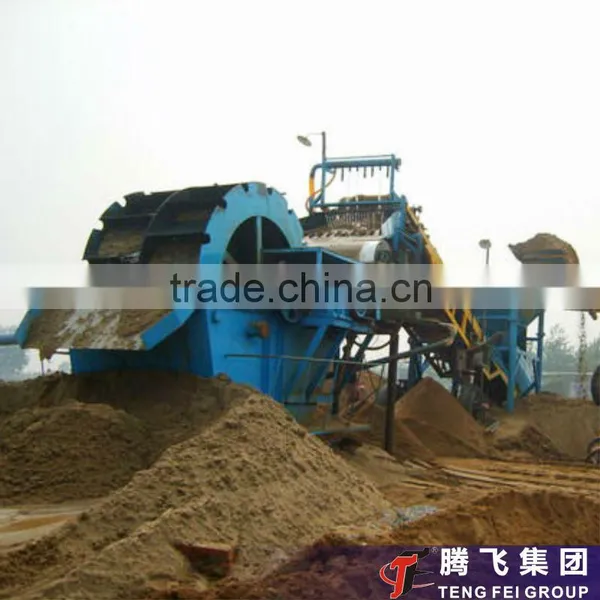

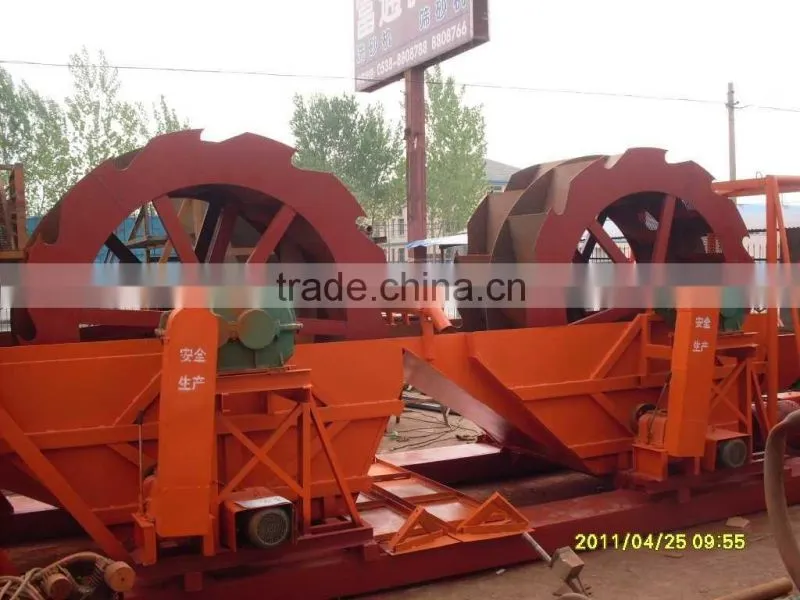

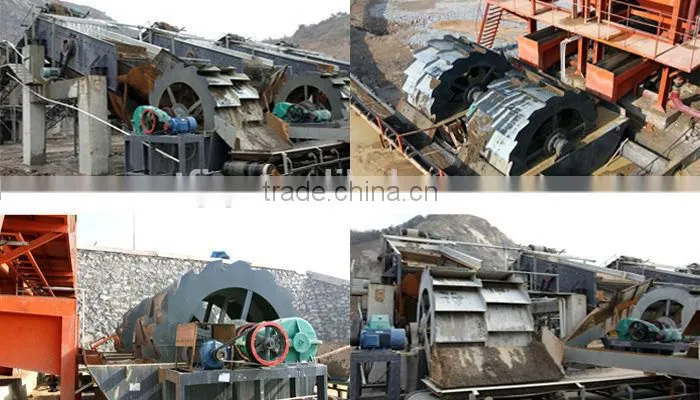

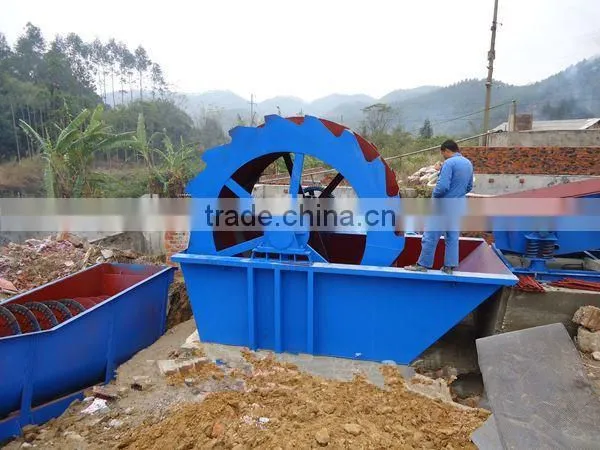

Overview of Sand Wash
- Sand Wash is a kind of wheeled washing equipment, and can clean and separate the dust and powder from the sand. Its new seal-structure and reliable driving device can make sure the cleaning effect and a kind of high efficiency sand washing equipment matched with the sand making machine.
- Sand Wash is mainly used in building site, gravel plant, concrete dam building site of hydropower station, etc., and with features of high degree cleaning-up, reasonable structure, large capacity, low power consumption, small loss of the sands during the washing process, especially for that the drive parts of the sand washing machine are separated from water and sands. So that it has lower failure rate than the usual sand washing machine.
Benefits of Sand Wash
- Simple structure
- The bearing device of impeller drive is separated from water and materials with water, to avoid the damage of the bearing
- New sealing structure and reliable transmission device
- Reasonable structure
- High capacity, low power consumption
- Easy structure, stable operation

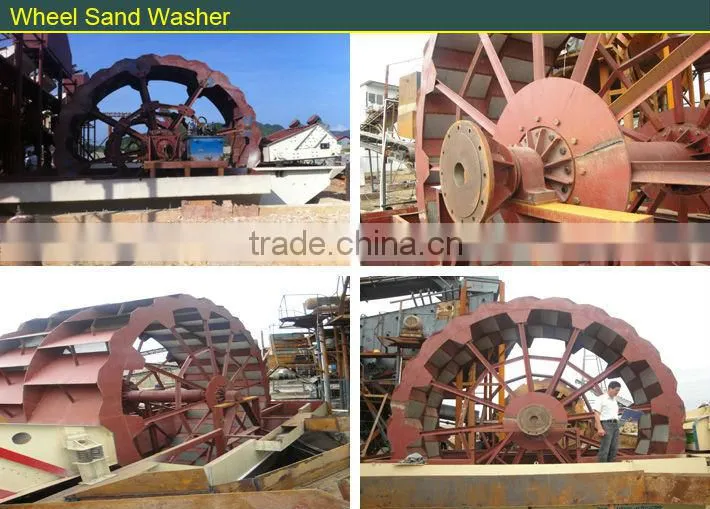

Working Principle:

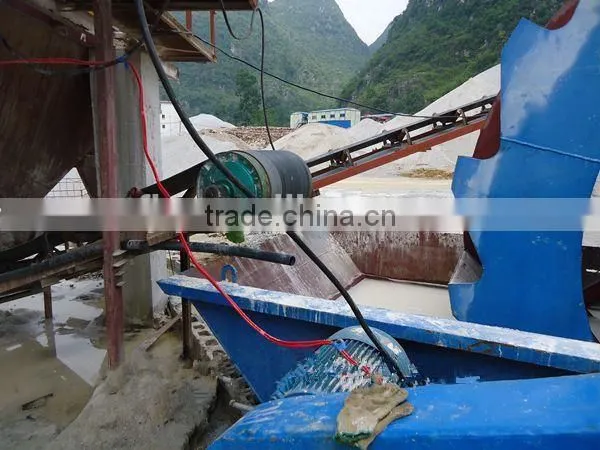

- When the machine works, the motor drives the impeller run slowly after being decelerated by v-belt, reducer and gear. The sand enters the wash trough through feeding tank, rolls pushed by the impeller, and rubs mutually to remove the impurities covering on the surface of the sand, at the same time, it breaks the water vapour which favors dewatering; At the same time, the strong water flow takes the impurities away, and discharged from the overfall.
- The clean sand is taken away by the impellers, when rising, the water drops down to the wash trough from the nets, this can both dewater the sand and save water. Finally, the sand is poured into the discharge chute and finished cleaning.
Technical Parameters of Sand Wash
Model |
Wheel Size (mm) |
Max Feed Size (mm) |
Power (kW) |
Weight (t) |
Capacity (t/h) |
Overall Dimension (mm) |
XSD2610 |
Φ2600×1000 |
10 |
5.5 |
2.7 |
20-50 |
3255×1982×2690 |
XSD2816 |
Φ2800×1600 |
10 |
11 |
3 |
30-60 |
3540×3000×2880 |
XSD3016 |
Φ3000×1600 |
10 |
15 |
3.3 |
50-100 |
3845×3000×3080 |

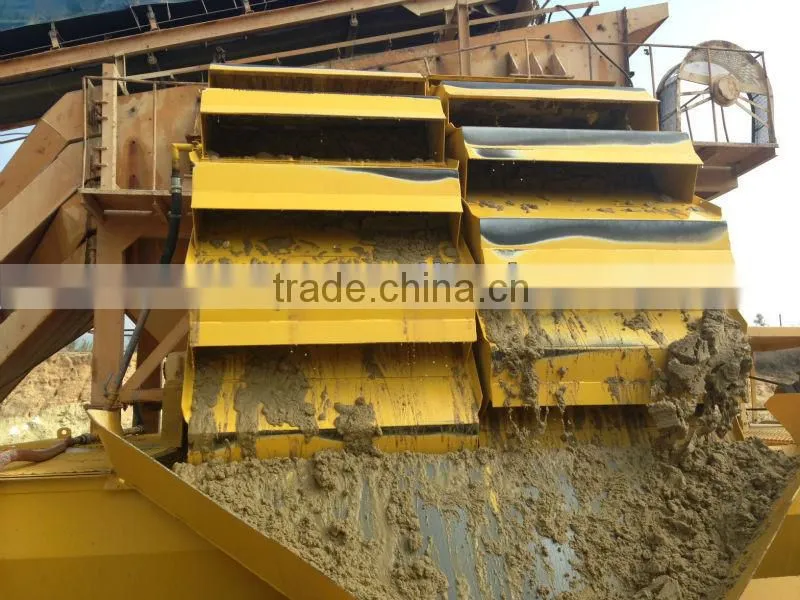

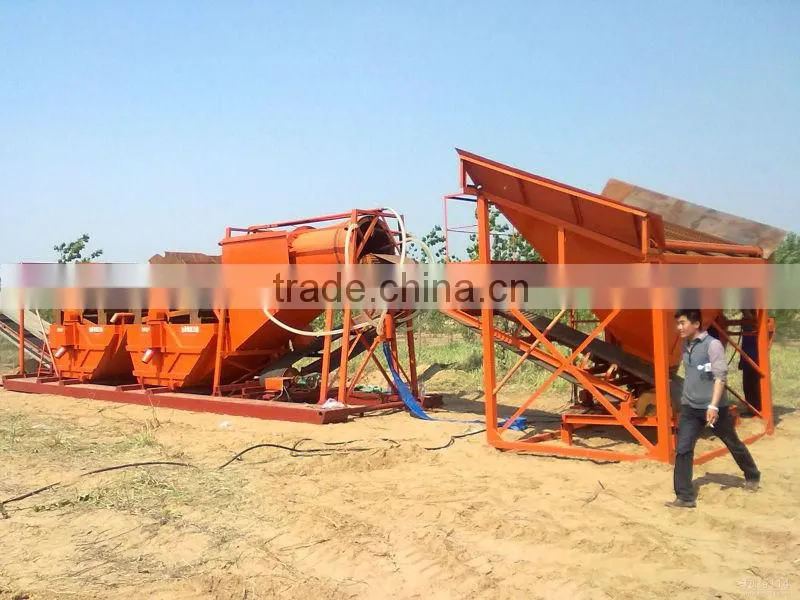

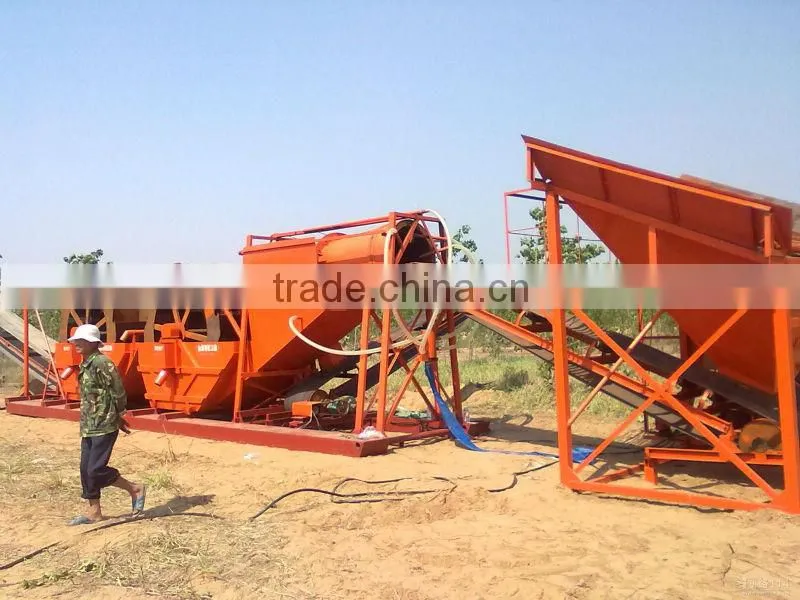

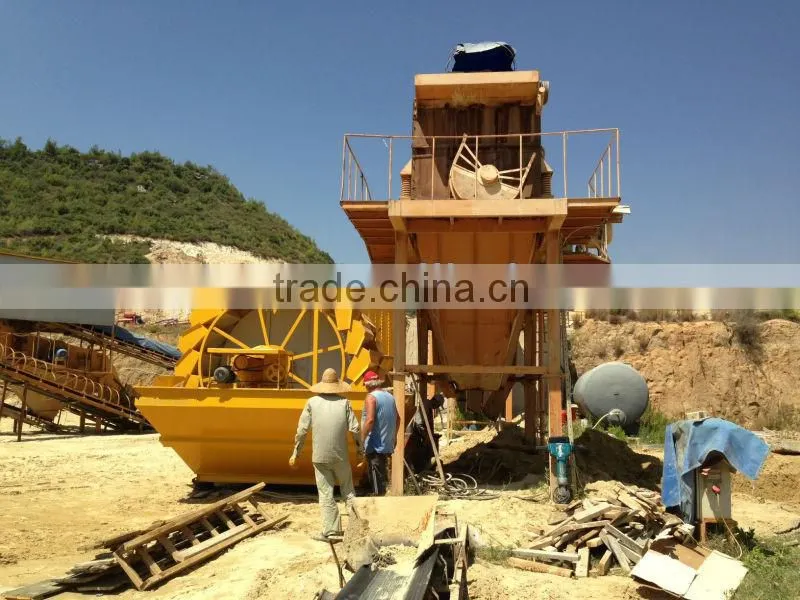

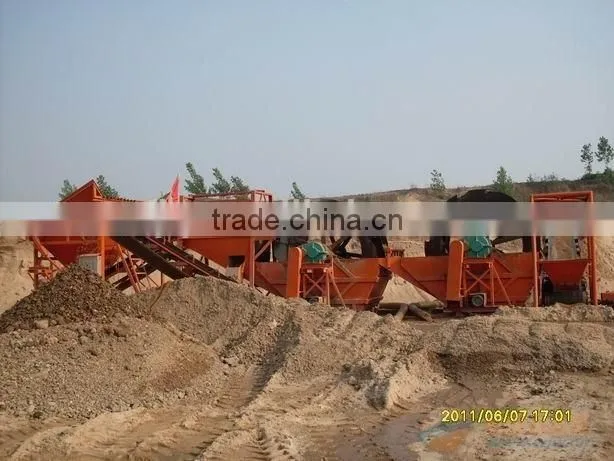

Worksite:
1. Rapid response to any inquiry.
2. Competitive price.
3. Professional inspection department to guarantee quality
4. Factory visit is welcomed and free booking hotel and airport pick up service.
5. Engineers will go to clients' site for guiding the installation and test-running;
6. Spare parts supply,We will keep your know the complete data, when you need any spare parts, we will send to you quickly.
7. 12 months super long time guarantee period.
8. Customer-tailor is received
How is the quality of your products?
Our products are manufactured strictly according to national and international standard,and we take a test on every grinder before delivered out. If you want see our quality certifications and all kinds of testing report, please just ask us for it.
Guaranteed:
If products’ quality don’t accord to description as we give or the promise before you place order,we promise 100% refund.
How about price?
Yes, we are factory and be able to give you lowest price below market one and we have a policy that “ for saving time and absolutely honest business attitude, we quote as lowest as possible for any customer, and discount can be given according to quantity”, if you like bargain and factory price is not low enough as you think, just don’t waste your time.Please trust the quotation we would give you, it is professional one.
Why should we choose you?
Chose happens because of quality, then price, we can give you both.
Additionally, we can also offer professional products inquiry, products knowledge train(for agents), smooth goods delivery, excellent customer solution proposals.Our service formula: good quality+good price+good service=customer’s trust.
