Construction Sand Washing Machine
US$ 1,800 - 16,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Motor Type:
AC Motor
Power(W):
15 KW
Payment & Shipping
Payment Methods:
Port of Shipment:
Qindao Lianyungang
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Industrial Sand Washing MachineUS$ 1,800 - 16,000MOQ: 1 Set -
Wheel Bucket Sand Washing MachineUS$ 1,800 - 16,000MOQ: 1 Set
-
Fine Sand Washing MachineUS$ 1,800 - 16,000MOQ: 1 Set
-
XSD Series New Sand Washing MachineUS$ 1,800 - 16,000MOQ: 1 Set
-
Low Failure Rate Sand Sieve MachineUS$ 1,800 - 16,000MOQ: 1 Set
Condition
New
Motor Type
AC Motor
Power(W)
15 KW
Capacity(t/h)
50-100
Place of Origin
Henan, China
Brand Name
TengFei
Model Number
XSD3016
Dimension(L*W*H)
3845x3000x3080 mm
Weight
3.3 t
Certification
ISO CE
Warranty
12Months
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Construction Sand Washing Machine1. Easy maintenance
2. Large capacity
3. Low consumption
4. High efficiency
Construction Sand Washing Machine
Product Description
Type |
Necessary Equipment |
Input Size |
<10mm |
Proccessed Materials |
River Gravel, Granite, Basalt, Quartz, IronOre, Diabase, Limestone, Coal Gangueetc. |
Application |
Aggregate Field, Concrete Mixing Plant, Dry Mortar Plant Desulfurization, Quartz Sand etc. |
Overview
- Construction Sand Washing Machine is a kind of wheeled washing equipment, and can clean and separate the dust and powder from the sand. Its new seal-structure and reliable driving device can make sure the cleaning effect and a kind of high efficiency sand washing equipment matched with the sand making machine.
- Sand washing machine are mainly used in building site, gravel plant, concrete dam building site of hydropower station, etc.
- It has features of high degree cleaning-up, reasonable structure, large capacity, low power consumption, small loss of the sands during the washing process, especially for that the drive parts of the sand washing machine are separated from water and sands. So that it has lower failure rate than the usual sand washing machine.
Benefits
- Simple structure
- The bearing device of impeller drive is separated from water and materials with water, to avoid the damage of the bearing
- New sealing structure and reliable transmission device
- Reasonable structure
- High capacity, low power consumption
- Easy structure, stable operation
Working Principle
- The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished.
- The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task.
Technical Parameters
Model |
Wheel Size (mm) |
Max Feed Size (mm) |
Power (kW) |
Weight (t) |
Capacity (t/h) |
Overall Dimension (mm) |
XSD2610 |
Φ2600×1000 |
10 |
5.5 |
2.7 |
20-50 |
3255×1982×2690 |
XSD2816 |
Φ2800×1600 |
10 |
11 |
3 |
30-60 |
3540×3000×2880 |
XSD3016 |
Φ3000×1600 |
10 |
15 |
3.3 |
50-100 |
3845×3000×3080 |

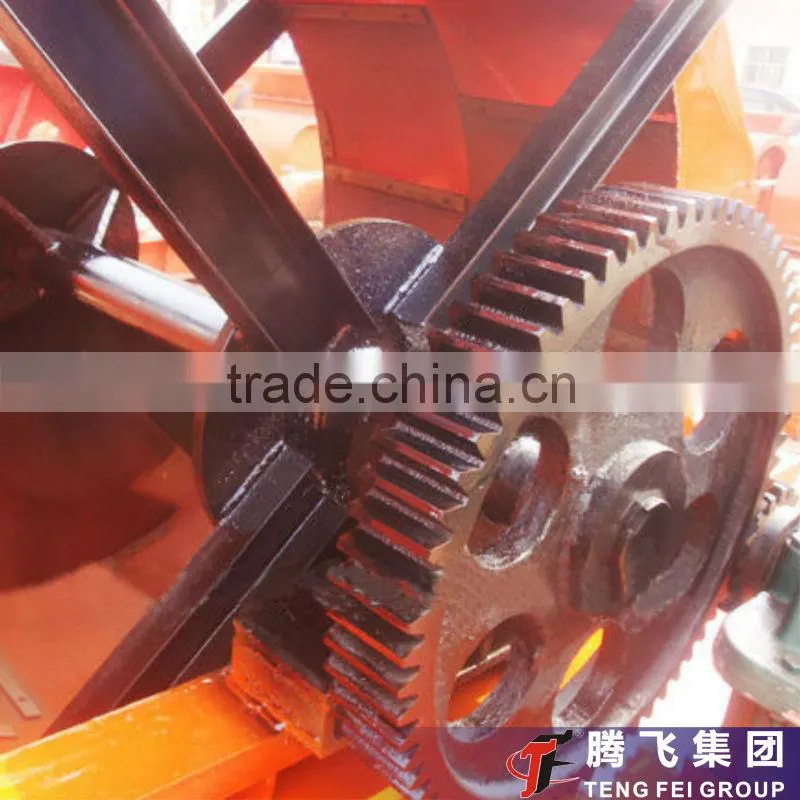

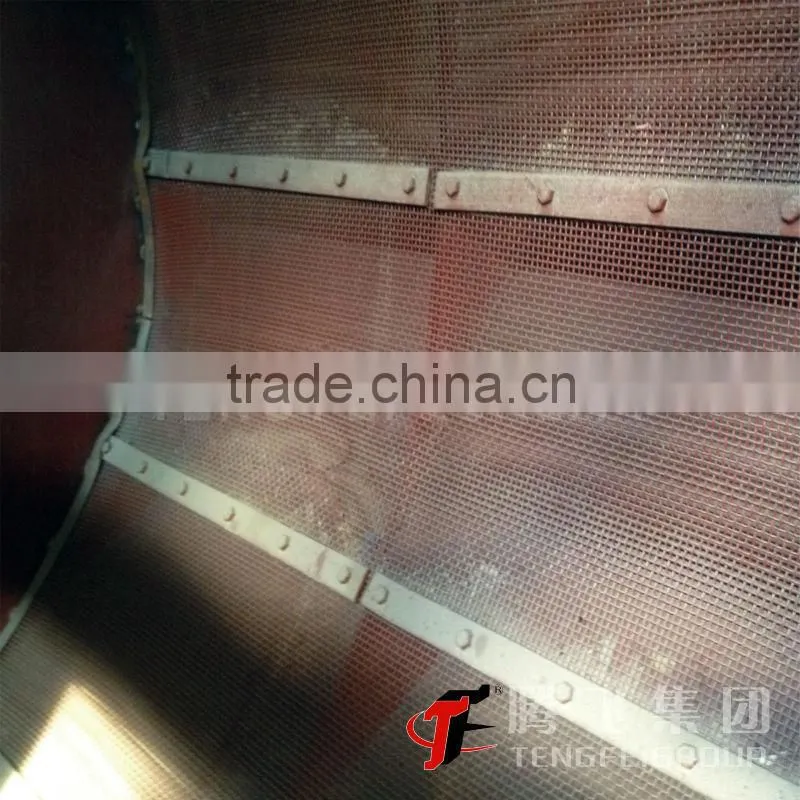

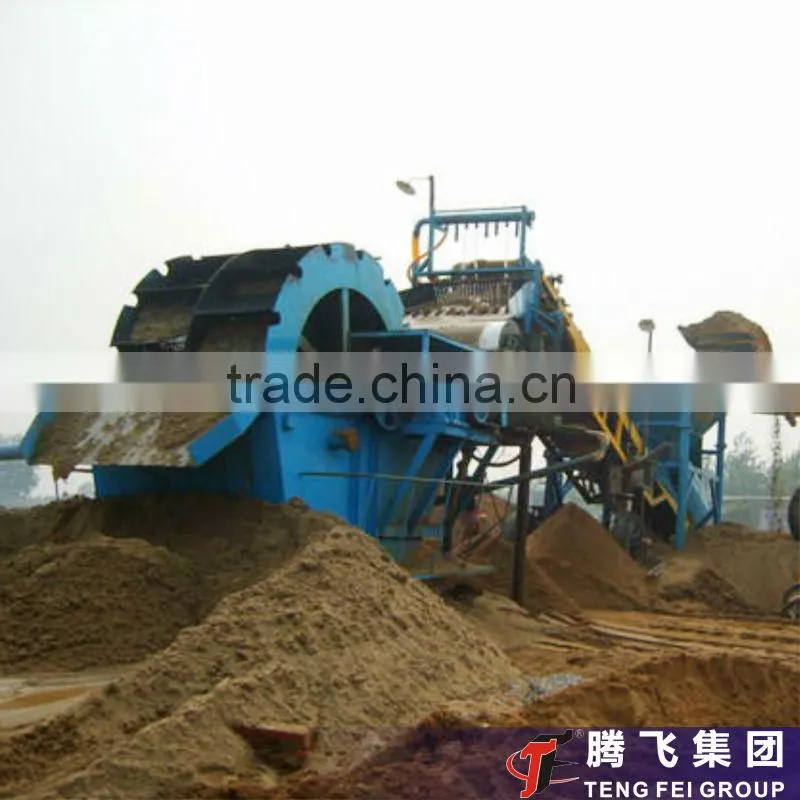

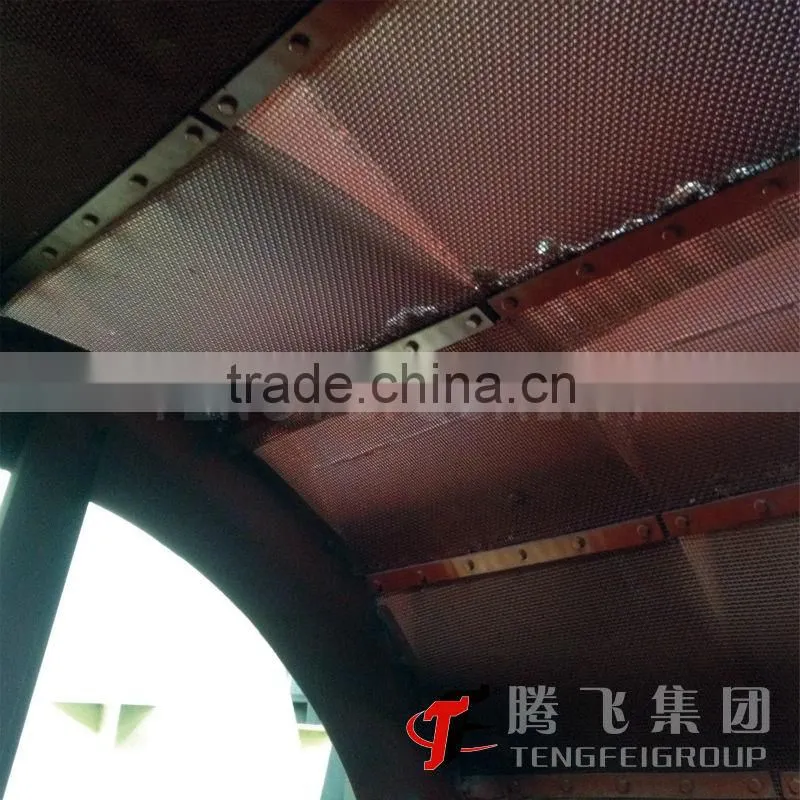

Related Pictures of Construction Sand Washing Machine :
Company Information
- Henan Teng Fei Machine Manufacturing Co., Ltd. is a professional machine mining manufacturer with decades of years' experience. Our main products are grinding mills, Crushers,Dryer,Ball Mill, Sand making&washing machines, vibrating screens, etc. They are all design ed, produced, manufactured and tested in accordance with the standard of ISO9001 quality system standard. Our products are recognized as quality products by technical supervision departments
- We manufacture TengFei brand mining machinery which are 100% of our own design, production detection and marketing
FAQ
How is the quality of your products?
- Our products are manufactured strictly according to national and international standard,and we take a test on every grinder before delivered out. If you want see our quality certifications and all kinds of testing report, please just ask us for it.
Guaranteed:
- If products’ quality don’t accord to description as we give or the promise before you place order,we promise 100% refund
How about price?
- Yes, we are factory and be able to give you lowest price below market one and we have a policy that “ for saving time and absolutely honest business attitude, we quote as lowest as possible for any customer, and discount can be given according to quantity”, if you like bargain and factory price is not low enough as you think, just don’t waste your time.Please trust the quotation we would give you, it is professional one.
Why should we choose you?
- Chose happens because of quality, then price, we can give you both.Additionally, we can also offer professional products inquiry, products knowledge train(for agents), smooth goods delivery, excellent customer solution proposals.Our service formula: good quality+good price+good service=customer’s trust.
