Dolomite Powder Grinder Mineral Grinding Mills

Name: Dolomite Powder Grinder Mineral Grinding Mills
Brand: TengFei
SKU: 115511667
Availability: InStock

US$ 1,300 - 180,000 MOQ: 1 Set

Key Specifications

Condition:

New, New

Type:

Raymond Mill

Motor Type:

AC Motor

Henan Teng Fei Machine Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QiingDao;NingBo;LianYunGang

Delivery Detail:

Delivery time depends on order quantity.

Type Raymond Mill

Motor Type AC Motor

Power(W) 15-185kw

Capacity(t/h) 1-20t

Place of Origin Henan, China

Brand Name TengFei

Model Number YGM85

Dimension(L*W*H) 5300*4100*5200mm

Weight 2t

Certification ISO9001

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Dolomite powder grinder mineral grinding mills

Product Description

Type :Mineral Ore Powder Making
Input Size: 15-35mm
Proccessed Materials: Talc ,Dolonmite,Marble,Bentonite,Mesical stone,Rockphosphate,Iron ore,Quartz,Active carbon, Coal,Quartz , Feldspar , Calcite,etc.
Applications:Cement,coal,power plant desulfurization,metallurgy,chemical industy,non-metallic mineral,construction material,ceramics.

Overview:

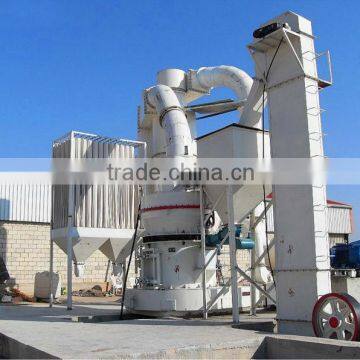

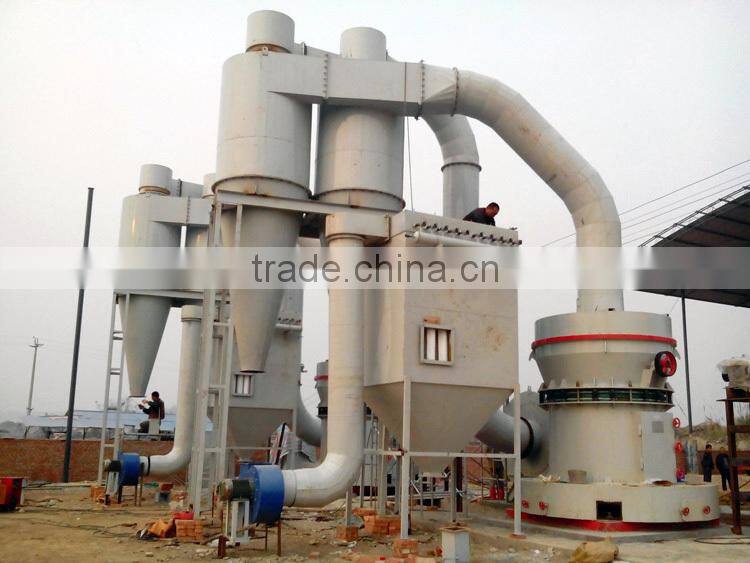

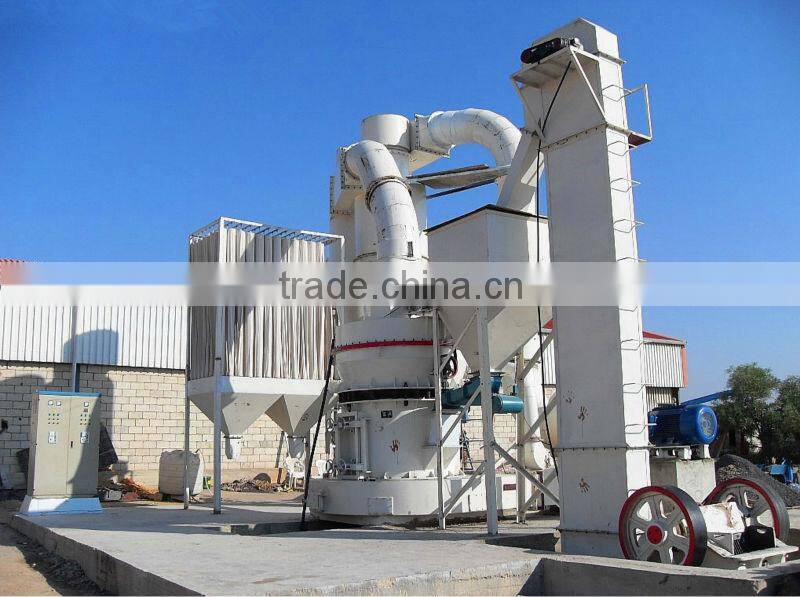

High Pressure Suspension Mill is mainly made up of the mainframe,seprator,blower,finished powder cyclone collector,bag filter and connecting pipes,etc.
According to users' need,the mill can also be equipped with accessory equipments like crusher,bucket elevators,hopper,e- lectromagnetic vibrating feeder and switvh box,etc.
Inside the mainframe,the roller subassembly is suspended on the roller suspenderthrough horizontal supporting azis,and the roller suspender fixed up with the main shaft and shovel stand .Loated outside of the roller bearing house,the pressure springs make rolloers push down the inside surface of ring through horizontal supporting axis.Shovels installed on he shovel stand and rollrs rotate together when the motor drives main shaft through transmission devce and the rollers roll appressed the inside surfce of ring and roitate at the same time. The separator impellers are driven by motor through transmission device to rotate,more higher the speed of separator impellor, more fine the powders been sparated.

Technical Parameters

Five Features
Compared with other mills, its capacity increases by 10%-20% under the same power condition, and compression force of rollers to material improve 800-1200kgf unde the force of high-pressure spring.
Size of final product can be 0.613mm(30mesh)-0.033mm(425mesh). Some can reach the fineness of 0.013mm(1000mesh).
High Pressure Susoension Mill meets the requirement of national duet-dump standard
The separator can be adjusted very easily.
The multi-class seals are adopted to keep the grinding equipment tightly closed
