YGM 160 Raymond Mill
1.Type:
- YGM 160 Raymond Mill
Processed Materials:

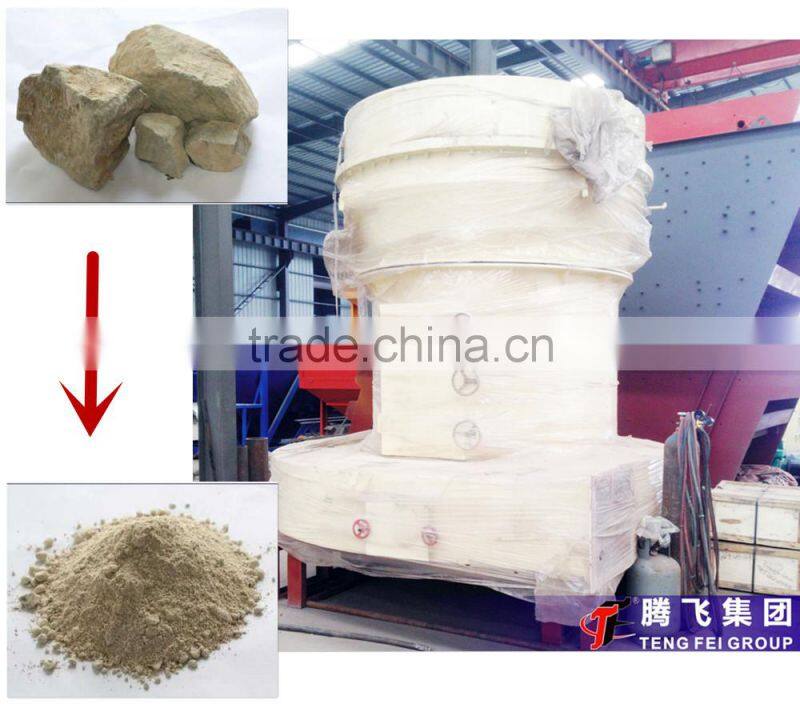

- YGM160 Raymond Mill can be used to grind non-inflammable and non-explosive materials with Moh's hardness below 9.3 and moisture content below 6%, Such as: limestone, calcite, barite,dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate,iron ore, quartz, active carbon, coal, ect.
Applications:
- Cement, coal, power plant desulfurization, metallurgy, chemical industry, non-metallic mineral, construction material, ceramics.
2.Detailed Specification of YGM Series Raymond Mill
Model |
The roller |
The ring |
Max Feeding Size (mm) |
Discharge Size (mm) |
Motor Power (KW) |
Capacity (T/h) |
|||
No. |
Diameter (mm) |
Height (mm) |
Diameter (mm) |
Height (mm) |
|||||
YGM65 |
3 |
210 |
150 |
650 |
150 |
15 |
0.613-0.033 |
15 |
0.4-1.8 |
YGM75 |
3 |
260 |
150 |
780 |
150 |
15 |
0.613-0.033 |
18.5 |
1-3 |
YGM85 |
3 |
270 |
140 |
830 |
140 |
20 |
0.613-0.033 |
22 |
1.2-4.6 |
YGM95 |
4 |
310 |
170 |
950 |
170 |
25 |
0.613-0.033 |
37 |
2.1-5.6 |
YGM130 |
5 |
410 |
210 |
1280 |
210 |
30 |
0.95-0.033 |
75 |
3-9.5 |
YGM160 |
6 |
510 |
230 |
1600 |
230 |
60 |
0.95-0.033 |
185 |
5-22 |
3. Features
|
Features
|
1.Compared with other mills, its capacity increases by 10%-20% under the same power condition, and compression force of rollers to material improves 800-1200kgf under the force of high-pressure spring. 2.Size of final product can be 0.613mm (30mesh) –0.033mm (425mesh). Some can reach the fineness of 0.013mm (1000 mesh). 3.High Pressure Suspension Mill meets the requirement of national dust-dump standard. 4.The separator can be adjusted very easily. 5.The multi-class seals are adopted to keep the grinding equipment tightly closed
|
4. Structure of YGM Raymond Mill

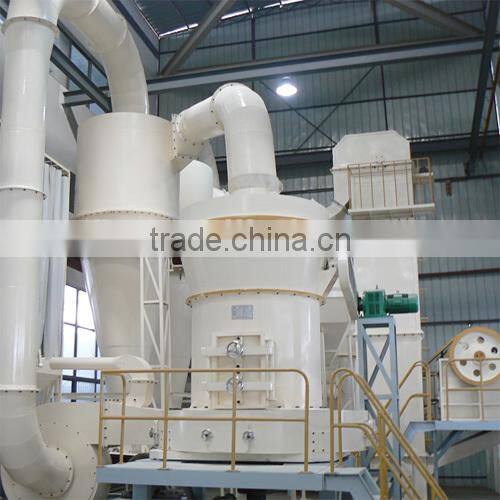

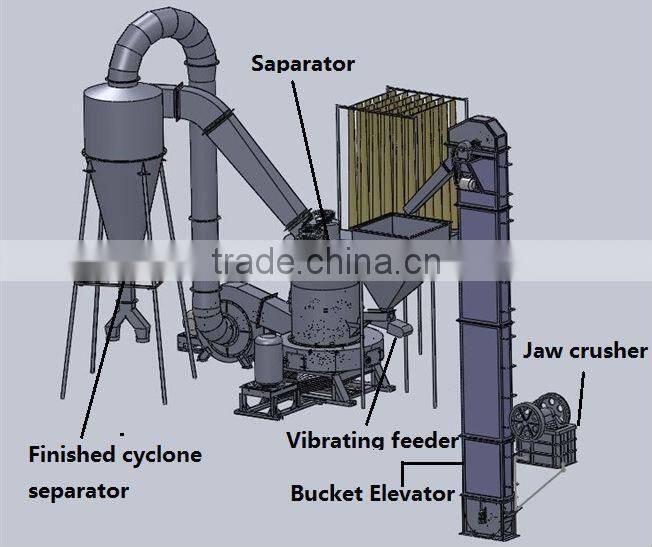

- YGM Series Raymond Mill is mainly made up of the mainframe, separator, blower, finished powder cyclone collector, bag filter and connecting pipes, etc. According to users’ need, the mill can also be equipped with accessory equipments like crusher, bucket elevators, hopper, electromagnetic vibrating feeder and switch box, etc.

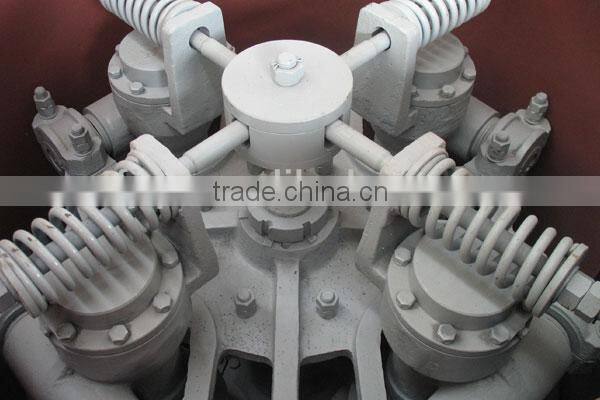

1st Feature: High Pressure Spring Device

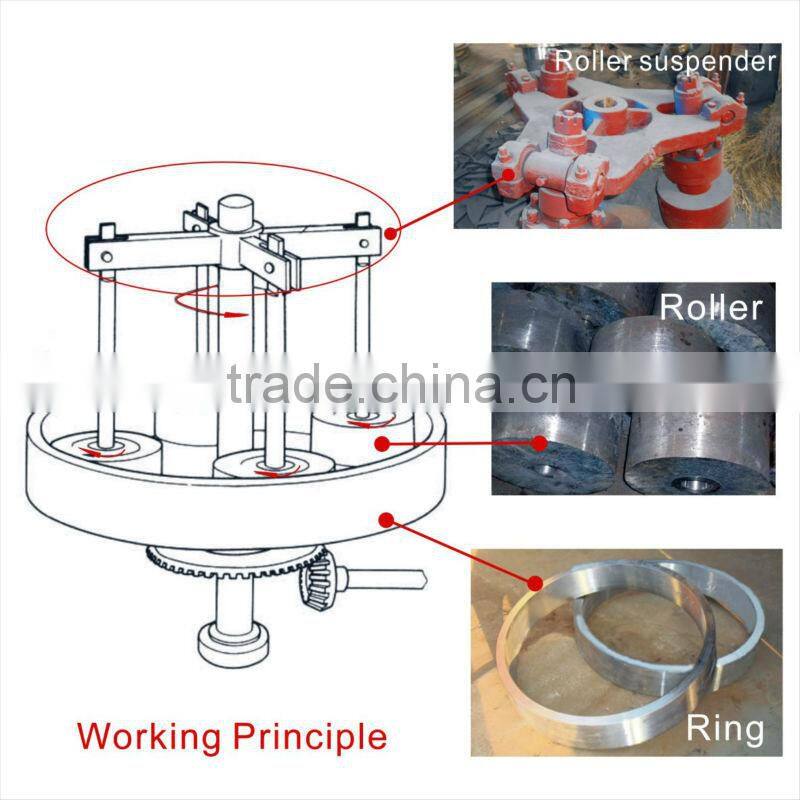

2nd Feature: Roller & Ring Pendulous Design of YGM95 Raymond Mill

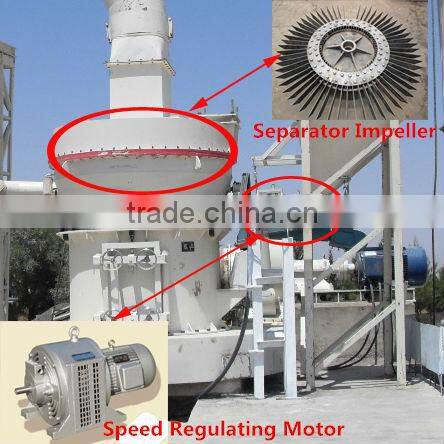

3rd Feature: Speed Regulating Motor and Blade Seperator is adopted

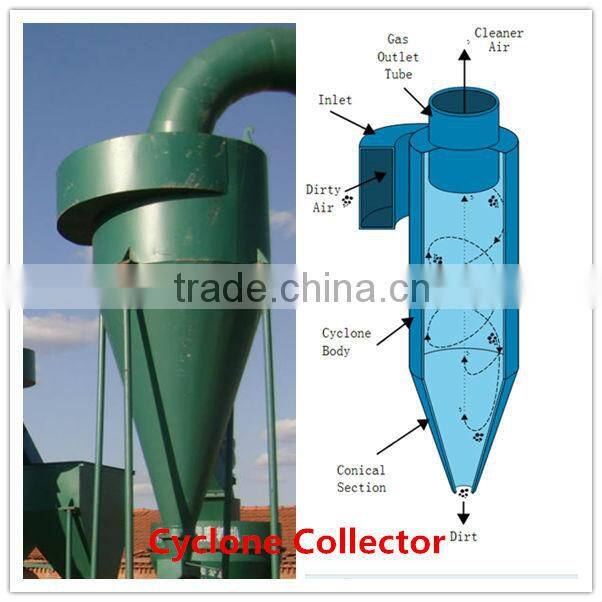

4th Feature: Cyclone Seperator is adopted to collect the particulate
