Raymond stone grinding mill machine YGM130
Type:
Mineral Ore Powder Making Machine.
Processed Materials:
Powder Mills can be used to grind non-inflammable and non-explosive materials with Moh's hardness below 9.3 and moisture content below 6%, Such as: limestone, calcite, barite,dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate,iron ore, quartz, active carbon, coal, ect.
Detailed Specification of Raymond stone grinding mill machine YGM130

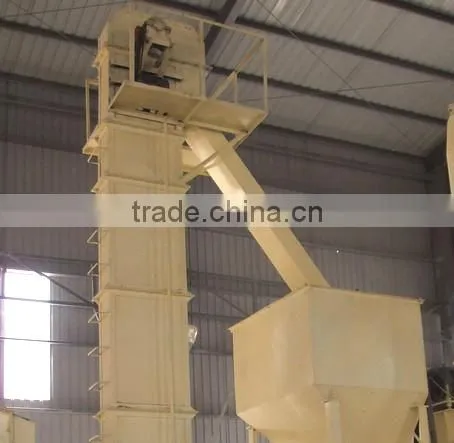

A bucket elevator of Raymond stone grinding mill machine YGM130
A bucket elevatoralso called a grain leg, is a mechanism for hauling flowable bulk materials (most often grain or fertilizer) vertically

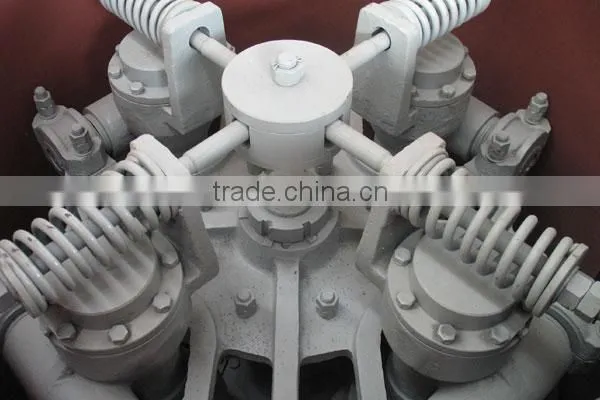

High Pressure Spring Device of Raymond stone grinding mill machine YGM130 .
Comparing with the Raymond mill, this grinder is assembled with pressurized spring to improve the mill eiciency. its capacity increases by 10%-20% under the same power condition, and compression force of rollers to material improve 800-1200kgf under the force of high-pressure spring.

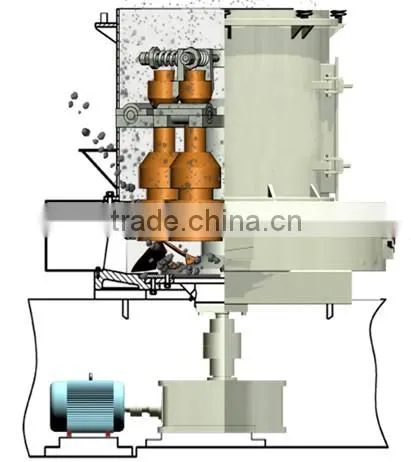

Working Principle of Raymond stone grinding mill machine YGM130

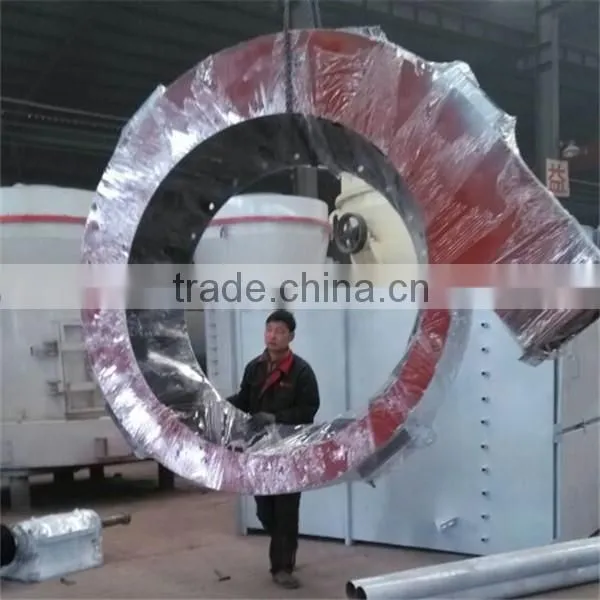

Inside the mainframe, the roller subassembly is suspended on the roller suspender through horizontal supporting axis, and the roller suspender fixed up with the main shaft and shovel stand. Located outside of the roller bearing house, the pressure springs make rollers push down the inside surface of ring through horizontal supporting axis.

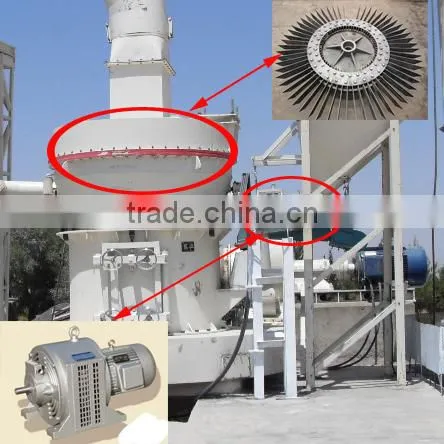

Regulating Motor & Blade Seperator of Raymond stone grinding mill machine YGM130
High quality speed regulating motor is adopted to adjust the rotation speed of analyzer, and the output size also can be adjusted accordingly. The variable frequency motor also can be used.Blade analyzer is adopted to analysis the powder of 0-425 mesh effectively.
1.May enjoy the life-long service after you buy our products.
2.Training the operator for free.
3. Under the condition that foundation, water source, power source, aggregate, hosting equipment, auxiliary staff is ready. Engineers are available if you need.
4.Certain quantity stochastic tool will be provided while delivering goods.
5.Within 48 hours service will be available according to different regions after received the telephone.
6. For exported products, Our company sends the constructor to help to operate and management equipment, time according to your needs. The related fee will be undertaken by buyers.
