Hot Sale Raymond Stone Grinding Mill Price with Competetive Price
- 25 Set / Sets per Month
- Qindao Tianjin Shanghai Ningbo etc
- T/T Credit Card
Product Details
Condition: | New | Type: | Other, High Pressure Grinding Mill | Motor Type: | AC Motor |
Power(W): | 15-185 kw | Capacity(t/h): | 0.4-22 t/h | Place of Origin: | Henan, China |
Brand Name: | TengFei | Model Number: | YGM Series | Dimension(L*W*H): | Vary |
Weight: | Consistent with Size | Certification: | ISO, CE | Warranty: | 12 Months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Grinding Mill Price
TengFei Quality
Type
- Mineral Ore Powder Making Machine.
Max feeding size
- <60 mm
Discharge size
- 0.95-0.033 mm
Roller and Ring material
- 65Mn, Mn13Cr2Cr or Chrominum Cast Steel
Processed Materials
- Talc Stone Grinding Mill can be used to grind non-inflammable and non-explosive materials with Moh's hardness below 9.3 and moisture content below 6%, Such as: limestone, calcite, barite,dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate,iron ore, quartz, active carbon, coal, ect.
Detailed Specification of Talc Stone Grinding Mill
Model | The roller | The ring | Max Feeding Size (mm) | Discharge Size (mm) | Motor Power (KW) | Capacity (T/h) | |||
No. | Diameter (mm) | Height (mm) | Diameter (mm) | Height (mm) | |||||
YGM65 | 3 | 210 | 150 | 650 | 150 | 15 | 0.613-0.033 | 15 | 0.4-1.8 |
YGM75 | 3 | 260 | 150 | 780 | 150 | 15 | 0.613-0.033 | 18.5 | 1-3 |
YGM85 | 3 | 270 | 140 | 830 | 140 | 20 | 0.613-0.033 | 22 | 1.2-4.6 |
YGM85B | 3 | 270 | 150 | 830 | 150 | 20 | 0.613-0.033 | 22 | 1.2-4.6 |
YGM95 | 4 | 310 | 170 | 950 | 170 | 25 | 0.613-0.033 | 37 | 2.1-5.6 |
YGM130 | 5 | 410 | 210 | 1280 | 210 | 30 | 0.95-0.033 | 75 | 3-9.5 |
YGM160 | 6 | 510 | 230 | 1600 | 230 | 60 | 0.95-0.033 | 185 | 5-22 |

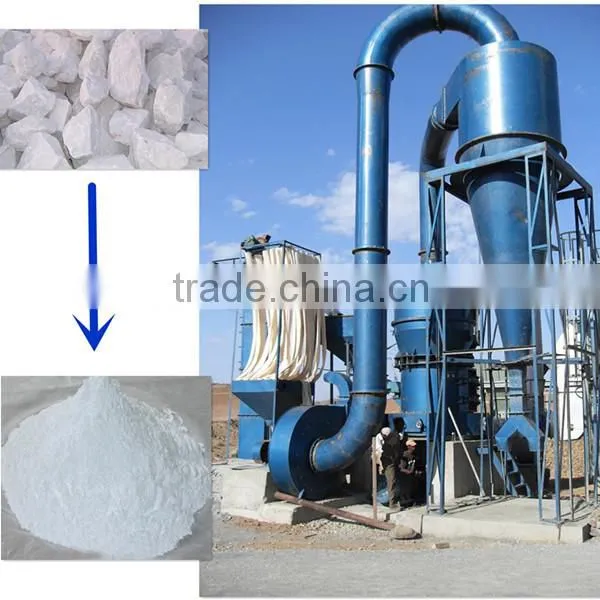

Raw Material
Final Product
Talc Stone Grinding Mill Applications
1. Building materials: Talc Stone Grinding Mill help upgrade the quality of plaster board.
2. Construction: Talc Stone Grinding Mill for Cement Industry application.
3. Talc Stone Grinding Mill grand plans in the field of concrete.
4. Talc Stone Grinding Mill promote leapfrog development of mold industry.

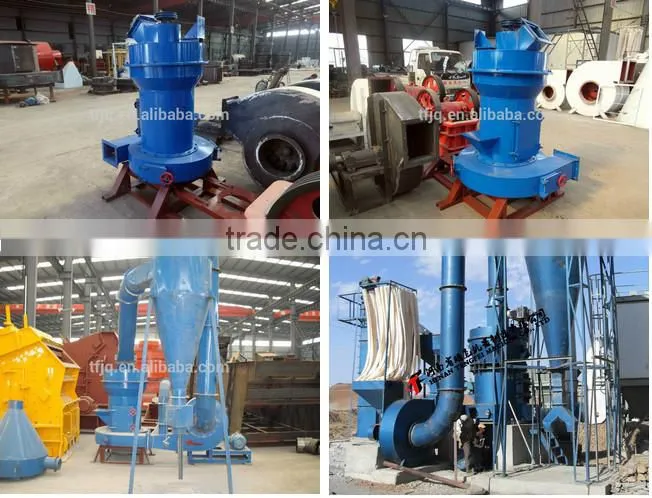

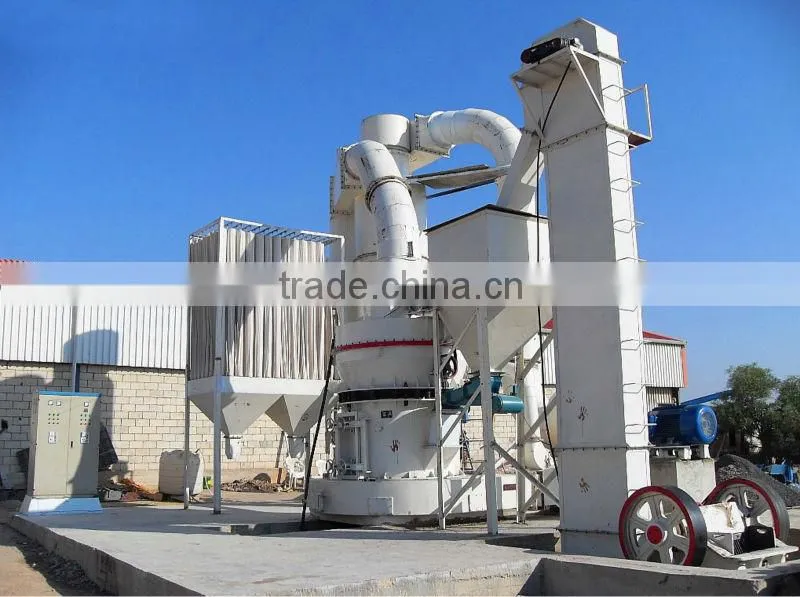

Worksite
1.Delivery time: 5-17 days after receipt of your deposit.
2.Payment terms: 30% T/T in advance, the balance is paid (by T/T) before delivery.
3.Package:
1).Wire cables are used for fastening the machine on the trailer or inside the container.
2).Cork wood are placed in front or behind the machine to protect it.
3).Plastic film is covered on the machine as a rain-roof.
4).Crane is used during the whole loading.
1.How is the quality of your products?
Our products are manufactured strictly according to national and international standard,and we take a test on every grinder before delivered out. If you want see our quality certifications and all kinds of testing report, please just ask us for it.
2.Guaranteed:
If products’ quality don’t accord to description as we give or the promise before you place order,we promise 100% refund
3.How about price?
Yes, we are factory and be able to give you lowest price below market one and we have a policy that “ for saving time and absolutely honest business attitude, we quote as lowest as possible for any customer, and discount can be given according to quantity”, if you like bargain and factory price is not low enough as you think, just don’t waste your time.Please trust the quotation we would give you, it is professional one.
4.Why should we choose you?
Chose happens because of quality, then price, we can give you both.
Additionally, we can also offer professional products inquiry, products knowledge train(for agents), smooth goods delivery, excellent customer solution proposals.Our service formula: good quality+good price+good service=customer’s trust
Contact Us
- Henan Teng Fei Machine Manufacturing Co., Ltd.
- Contact nameJohn Zhang
- Phone086-371-67103656
- AddressXintian Avenue, Xushui Town, Zhongyuan District, Zhengzhou City, Henan Province. China Zhengzhou,Henan
